power station pressure sensor 4-20mA dieselg generator transmitter

FOB Reference Price:Get Latest Price
$35.00 - $80.00 / Piece | 1 Piece/Pieces (Min. Order)
316 full welded stainless steel
Pressure Range:
'-1~1 bar...1000 bar
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Quick Details
Place of Origin:
Hunan, China
Brand Name:
Model Number:

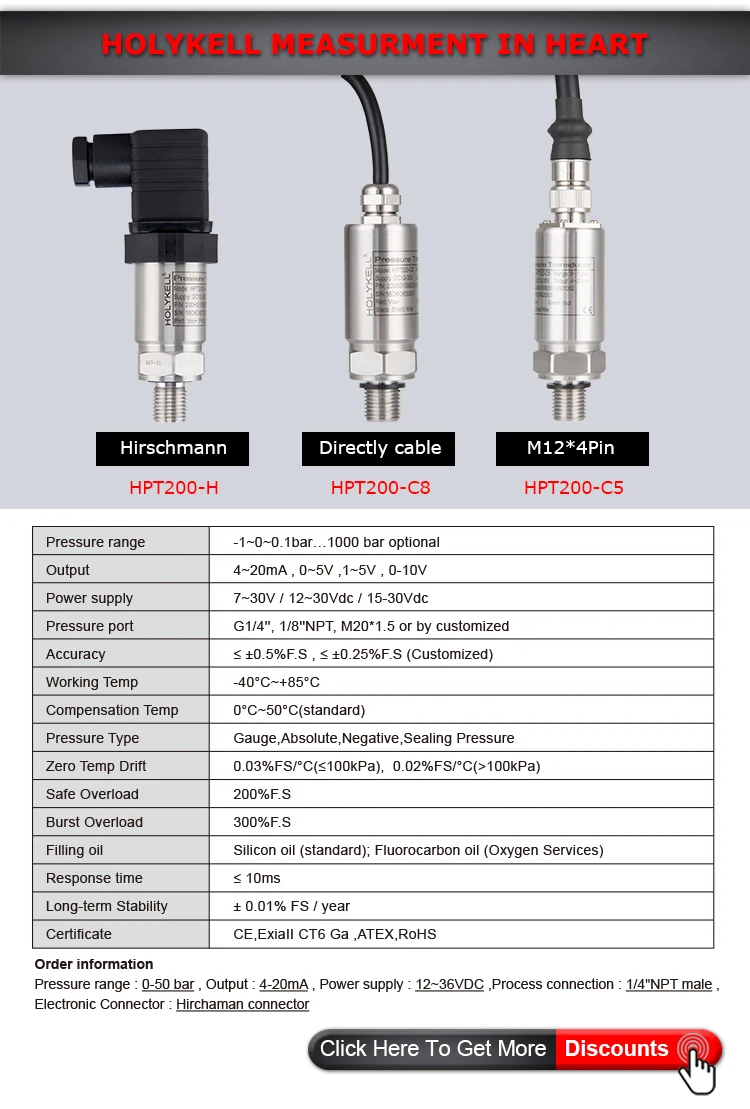

Pressure Range:
'-1~1 bar...1000 bar optional
Output signal:
RS485 4~20mA,0~5V/0~10V ,4-20mA with Hart protocol
Measuring Medium/Application:
Water,Fuel or Liquid Gas pressure
Electronic connection:
DIN43650 Hirschman Connector; Directly Outlet Cable; M12 (4-pole) Type
Pressure connect port:
G1/4"male;G1/2"male;M20*1.5 or by customized
Power Supply::
Pressure Core:
Imported MEAS silicone core
Body Marterial:
316 full welded stainless steel
0.15%F.S; 0.25%F.S; 0.5%F.S optional
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month China Pressure Transmitter
Packaging & Delivery
Packaging Details
Standard Holykell export packing.
Shenzhen, Guangzhou
Picture Example:
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description

power station pressure sensor 4-20mA dieselg generator transmitter




1. a.All welded 316L housing

2. ImportedU.S.A MEAS TE piezoresistive pressure sensors, 5-10 years life design

3. Military level of printer PCB board, Anti-Jamming enhanced 300%, Stability of Circuit>10 years

3. Linear Amplified Output

4. Automatic temperature compensation -40~80,Temperature drift Automatic modified linear  ≤0.01%FS

5. Superior Long term Stability

6. Excellent Repeat ability/Hysteresis

7. EMI/RFI Rejection

8. Low power consumption

9. Ten million cycle life expectancy

10. Outstanding shock& vibration performance

1. Product Description:


HPT200 pressure transducer use high quality imported U.S.A MEAS TE piezoresistive pressure sensor, 5-10 years lifetime design, 10 million cycle life expectancy. It is designed to prevent dampness, anti-moisture, dust proof, shockproof and explosion-proof and can withstand the most stringent conditions





It offers process connection ,electronic connection range accuracy options

all the standard industry output signals, the most common international process connections and a wide number of electrical connections

it can be suited to the widest range of applications.

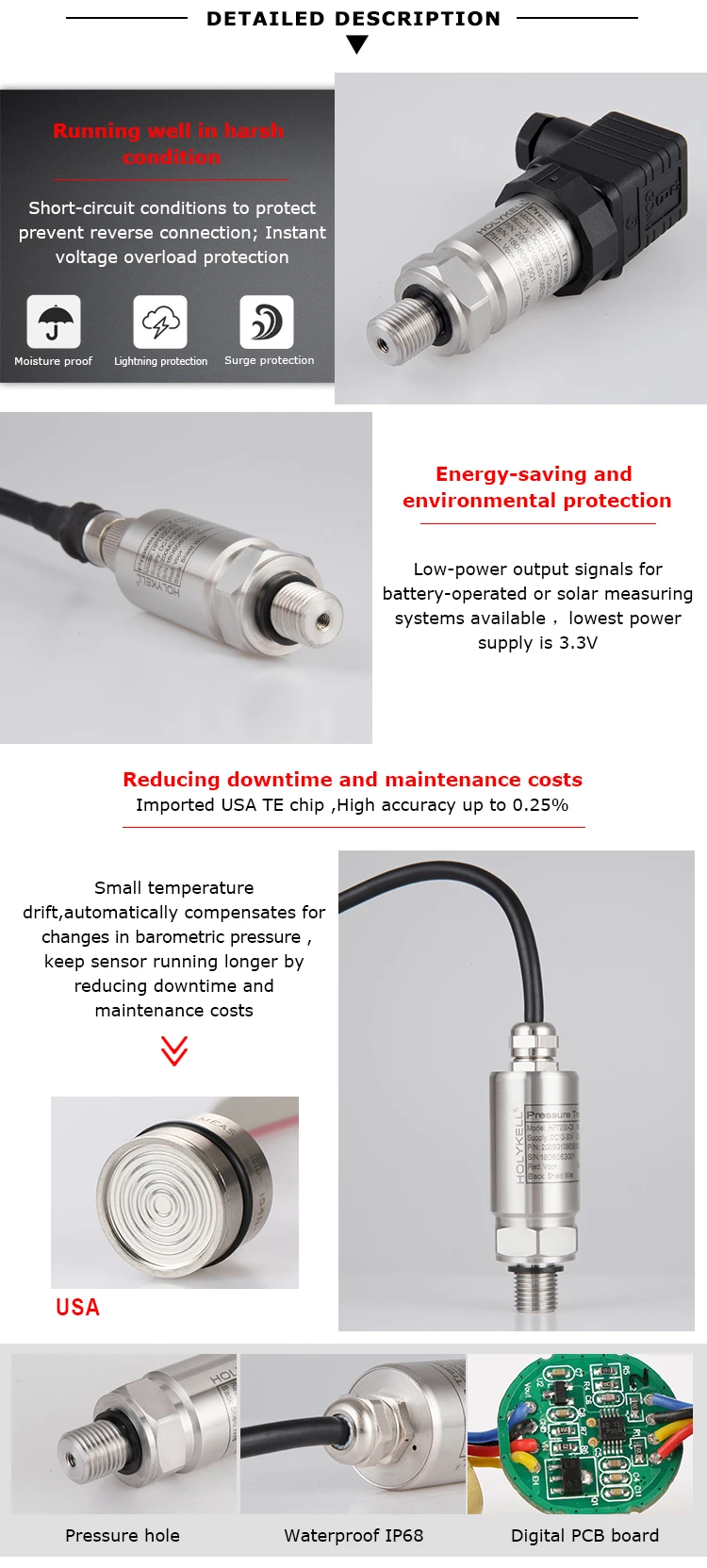

Lightning  surge reverse protection

short-circuit conditions to protect prevent reverse connection; Instant voltage overload protection

running reliable and long-lasting in harsh condition

The vent with a filter

breath atmosphere and protect moisture enter transducer

without maintenance, even in the most humid environments.

USA TE Chip,Digital PCB board

High accuracy 0.25%,Small temperature drift,automatically compensates for changes in barometric pressure

Stability,keep sensor running longer by reducing downtime and maintenance costs

Lowe-Power output signals

Low-power output signals for battery-operated or solar measuring systems available ,lowest power supply is 3.3V

energy-saving and environmental protection

316L diaphragm

Anti-corrision ,wear resistance , shock resistance

make it suitable for immersion for a long time in most industrial liquids

Suction water  filter design

8 pore design Anti-blocking  Prevent plugging rate increases more than 80%

Simple maintenance ,easy to cleaning and installation

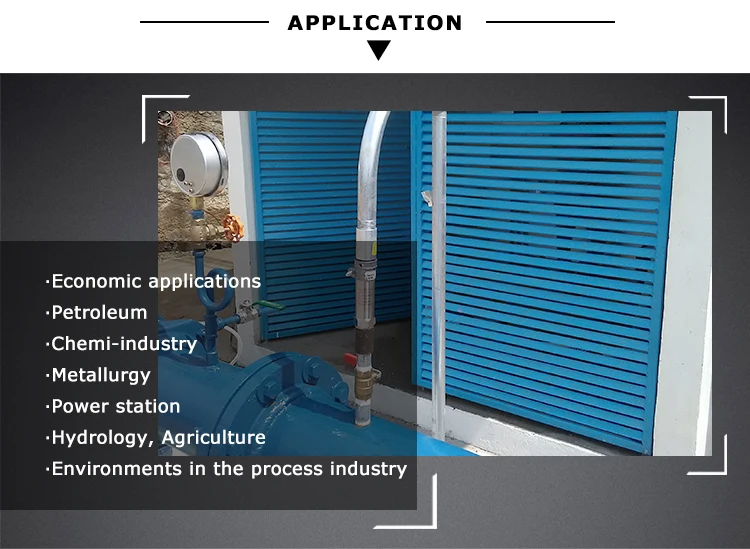

2. Application

3. Company Information

Holykell Technology Co. , Ltd is a high-tech company integrating R&D, production and distribution. The company has a purification plant of 5000m2, an annual output of 1 million production line of pressure sensor, transmitter and intelligent digital instrumentation.
Now the company has more than 120,000 customers worldwide, the products have been exported to Europe, America, Australia, Africa, southeast Asia, 109 countries.
Holykell can provide a cost effective solution for pressure monitoring for a variety of applications. Welcome to your inquiry.

4. Why Choose and trust HOLYKELL ?
You benefits from:
Factory Experience
More than 17 years of experience in Level sensor industry.
large stock :

within 24 hours delivery for standard specifications.
Supply Ability :

At least 50000 pcs per Month.
Supply Area :

All over the world, about 109 countries (Most of them are from North America, Europe, Australia,Asia and Africa
Certificate :
CE, ROSH, ATEX Audited by TÜV Rheinland and ECM,FCC
OEM/ODM :  Accept.

5. Saving Money

To Save Money in Your Business from Long-term consideration, our sensors are 5-10 years long services life design. With 18-Month Warranty, and a high efficiency professional team providing a life-long maintenance. Can save up to 50%.



6. Our Services

To Save Money in Your Business from Long-term consideration, our sensors are 5-10 years long services life design. With 18-Month Warranty, and a high efficiency professional team providing a life-long maintenance. Can save up to 50%.

Holykell is the leading seller in this line on Alibaba trade assurance!---You can search and prove that on alibaba.

OEM / ODM services
To meet the user diversified requirement, Holykell have established a set of customer service and technical support system with OEM / ODM order as the center, and responded and Handle the customer's requirements in a timely manner to ensure accurate delivery time and product quality.

Order services
Fastest reply:Professional sales engineers 7/24 online services
Payment terms:T/T ,Western union, Paypal, Credit Card, L/C, Escrow others
Fast delivery: within 24 hours release the cargo (normal spec.), Customized 7-12 days after payment .
Customer Feedback Sales engineers and technical engineers will be one-on-one service for you to exclude all obstacles when use our sensors.
Warranty period18 months
Product life-long maintenanceHolykell can provide you with the maintenance of the whole life of the sensors

7. Certifications

8. FAQ

Q:Can you accept ODM & OEM service ?

A:We professional provide OEM &ODM service for pressure transducer.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.

Q: How can I get the quotation?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page. Or contact us directly at (email/skype: sales07 at holykell.com), you will get the reply within 12hours, and the quotation will send to you according to your requirements.
Q: How can I get my sensors?/ What's the means of transport?
A: We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator
Q: How to order ?
A:In order to recommend you the most suitable sensors and make an accurate quotation,please provide the following information and send it to our sales when you are going to make an inquiry, thanks !
  1. What is your medium? Water ,oil or others.
  2. Working Temperature? -30ºC~80ºC
  3. Pressure range: 0-1bar...2000Bar optional
  4. Output signal:4-20mA, 0-5V or others
  5. Electronic connection? Antiseptic cable or by order
