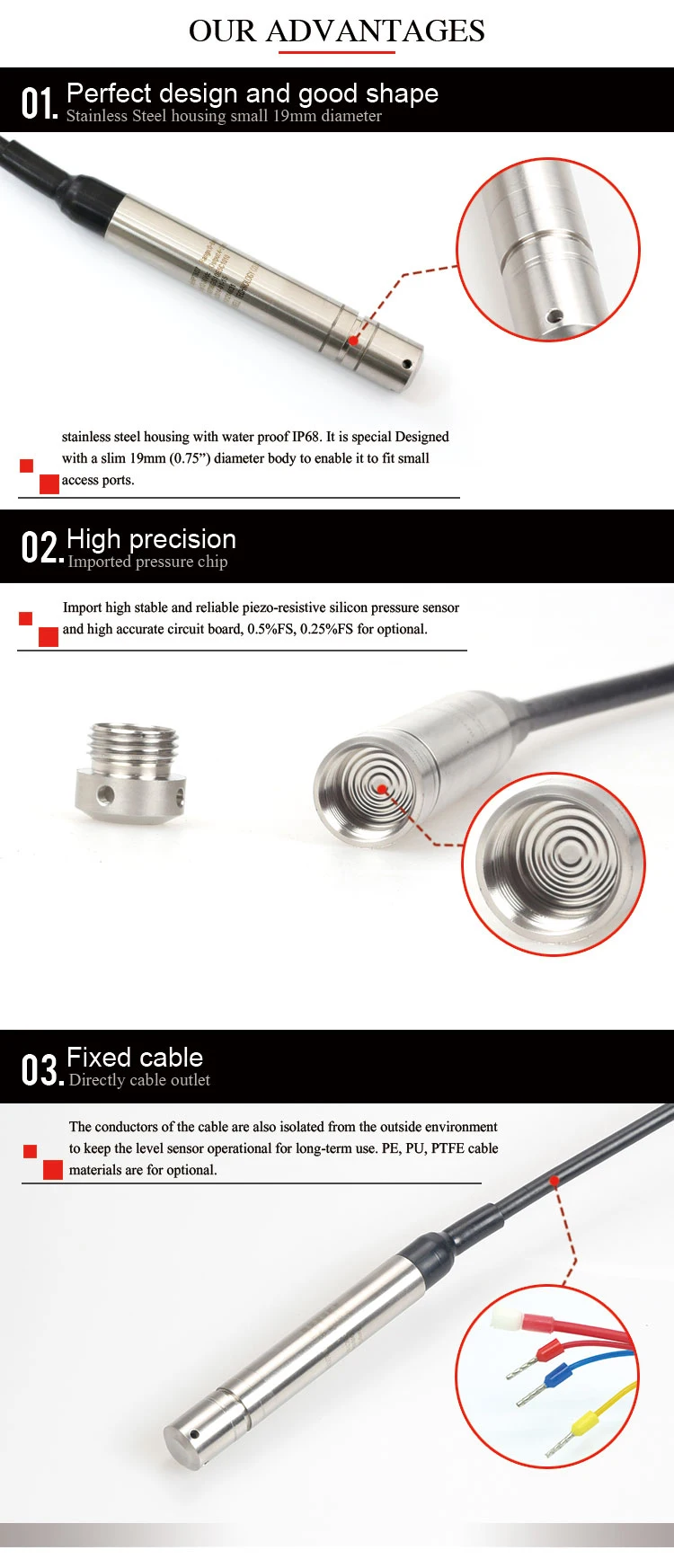

Why Choose HOLYKELL HPT607 Seires?
1. 5-10 years design life, the lifelong maintenance; Import MEAS TE pressure cell ensure 0.25% F.S. factory accuracy;Its service life is 2-3 times of similar products.
2. Adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;Anti-interference is enhanced by 300%, the stability is over 10 years.
3. Slender design Ø19mm Diameter Body fit for small access ports.
4. The unique design of 4 hole filter design, it Can effectively filter out impurities,prevent blockage, prevent shock; Prevent plugging rate increases more than 80%
5. Automatic temperature compensation, 0 ~ 70℃, autocorrection temperature drift.
6. Five layers of seamless and waterproof dustproof connection design, international level IP68;12 mm waterproof and oil-proof cables, Custom PU, PE or PTFE cable lengths.
Product Description of Holykell Level Sensor HPT607 Level Sensor:
HPT607 is a submersible level sensor suitable for small access ports liquidlevel and depth measurement.It consists of an imported U.S.A MEAS TE silicone core element encased in all 316 stainless steel, 19mm diameter body design. 5 layers of seamless and waterproof dust-proof connection design, international level IP68; 12 mm waterproof and oil-proof cables, the service life is more than 10 years.
What's the Specification of Holykell Factory HPT607 Small Diameter 19mm Borehole Level Pressure Sensor?
(5 layer grade seal, water proof cover+2 grade Rectangular ring + O-ring seal+
sealant+ Encapsulating compound )
Pressure mounting port
1. With stainless steel filter (Standard type), 2. With nylon filter,
3, With G1/4’’ male thread, 4. With 1/4’’NPT male thread and so on.
≤10 ms (standard); ≤1 ms (Customized)
Gauge pressure: G, Absolute pressure: A
Explosion proof certification, CE certification. Rosh certification
What is The Application of HPT607 Level Sensor ?
The HPT607 (level sensor) is designed with a slim 19mm diameter body to enable it to fit for small access ports,is widely used in measure Liquid Level and Depth for Water and Waste Water applications, at Lift Stations, Shipboard, In-ground / Above Ground Tanks and with Inventory Tank Gauging. And are highly praised by consumers.
·Deep well and borehole measurements
·Down Hole measurement
·Surface Water Monitoring
·Control of Lift and Pumping Stations
·Level Measurement in Storm Water
In order to recommend you the most suitable products and make an accurate quotation,please provide the following information and send it to our sales when you are going to makean inquiry, thanks !
1. What is your medium? Water ,oil or others.
2. Working Temperature? -30℃~80℃ or others?
3. Level range: 0-5m or others?
4. Output signal:4-20mA, 0-5V or others
Directly Contact:duct air pressure sensor Sophie Mobile/Whatsapp: +86 13187184736 Email: Sales11 at holykell.com
Q:Can you accept ODM & OEM service ?
A:We professional provide OEM &ODM service for pressure transducer.
Q:Could I get samples? A:Yes,we have materials in stock to help you to get the samples as soon as we can. Q:How about the quality of the magnets? A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
Q:How is the price? A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price. Q:Could you provide me the shortest lead time? A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you. Q:Could I visit your factory? A:Of course,if you need we will help you to visit our factory.
Q: How can I get the quotation?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page. Or contact us directly viaEmail:sales11(at)holykell.com / mobile/whatsapp: +86- 13187184736you will get the reply within 12hours, and the quotation will send to you according to your requirements.
