Holykell UE3002 RS485 Fuel Tank Ultrasonic Fuel Level Sensor

FOB Reference Price:Get Latest Price
$150.00 - $390.00 / Piece | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
HOLYKELL
Model Number:
UE3002 SERIES
Type:
Ultrasonic Level sensor U series
Certificats:
ISO & CE

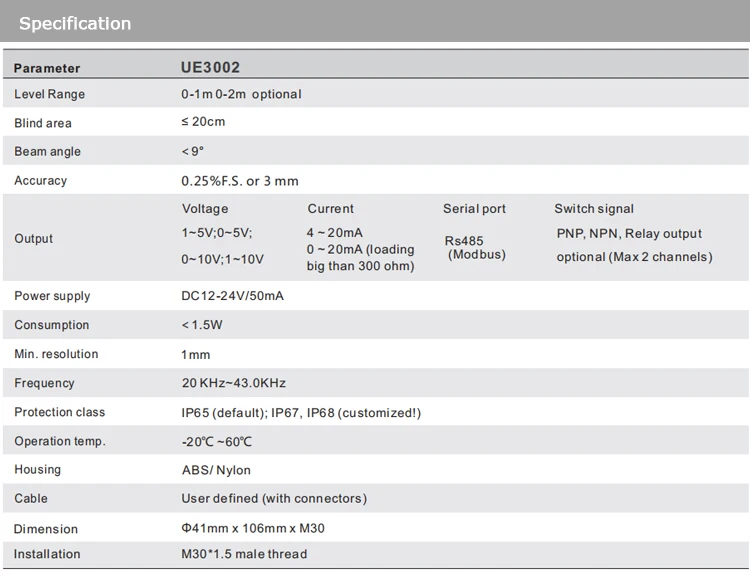

Measuring Range::
0-1 m...5m/10m/15m/20m/30m/50m/70m Optional
Blind Zone::
20 cm to 60cm
Working Temp::
Sensor: -20°C~+80°C ; Meter: - -20°C~+60°C (Can be customized)
Temperature Compensation::
-20°C~60°C
Resolution::
3 mm
Certificate approving::
Exia IICT6
Water Proof::
Sensor: IP68; Meter: IP65
Supply Ability
Supply Ability:
4000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export package. By carton box or composited board box for Holykell UE3002 RS485 Fuel Tank Ultrasonic Fuel Level Sensor
Port
SHENZHEN / GUANGZHOU

Holykell UE3002 RS485 Fuel Tank  Ultrasonic Fuel  Level Sensor

Holykell with 18 years sensor manufacture, can provide:

(1) Pressure sensor

(2) Submersible level sensor / Ultrasonic level sensor/ Radar level sensor

(3) Flow meter

Any item if you need, please contact with Jenny as below:

Waste Water Level Sensor

                                                                                             Whatsapp/ Wechat: +86 130 8055 6046













ultrasonic waste  level sensor

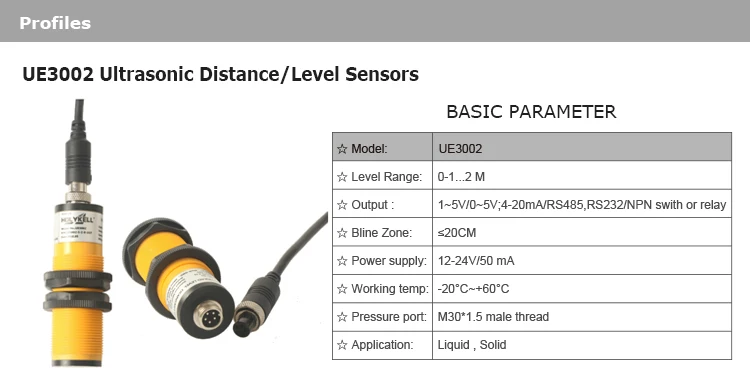

UE3002 Ultrasonic Level Sensor combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC which is developed together with the United States partner. All these features realize a concise and smart level transmitter. All gold-plated circuit boards, internal electromagnetic shielding and software digital filter are tested for (industrial) 48 hour under high and low temperature aging. It promises higher and long-term reliability. Shell is made of solid texture and good NLEPF acoustic characteristics of synthetic material. The body is shape sophisticated aesthetics, waterproof, dustproof, and can adapt to the most of working conditions on site.A very quick and easy installation, maintenance can be realized.





water level sensor





1. Support M60*2mm thread into type installation and coil clamping type installation, the installation more vonvenient

2. Many model output opional customizable 4-20mA three-wire system, 1-5V, RS485 more customizable

3.Less than 9C beam angle design, resolition 3mm, less than 200ms respomsible time to make sure more accuracy

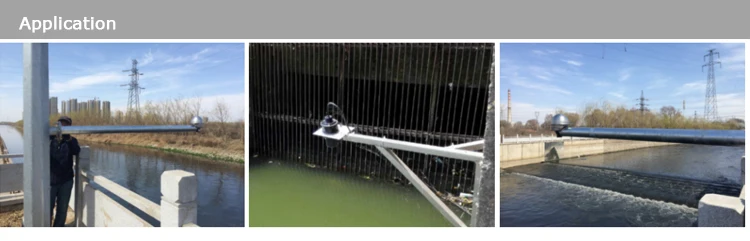

4. Wide range of application, sealed high-temperature toxic volatile, flammadble and explosive of strongely corrcsive liquid

5.Housing adpts the NLEPE synthetic material IP66 waterproof, anti-skid, antu-corrosion, anti-explosion structure

6. High quanlity terminal blocks, excellent anti-jamming is strong, long term stability and duralibity





Waste Water Level Sensor





ultrasonic waste  level sensorwater level sensor

Waste Water Level Sensor







ultrasonic waste  level sensorwater level sensor



















Click here for more information
