Holykell Factory 2PSI 4-20mA Air LGP Differential Pressure Transducer

FOB Reference Price:Get Latest Price
$190.00 - $298.00 / Piece | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
Holykell
Model Number:
HPT700 differential sensor
Highest Accuracy:
0.25%F.S
Range:
0- 50pa....1000Kpa
Output signal:
4~20mA,0~5V/0~10V;RS485 optional
Accuracy:
0.25%F.S; 0.5%F.S; 1.0%F.S optional
Electronic connection:
DIN43650 Hirschman; Fixed cable optional
Pressure connect port:
G1/4"male; 1/4"-18 NPT Female by customized
Power supply:
10~30Vdc
Measuring Medium/Application:
Filter monitoring, hydraulic, flow, water or waste water
Medium Temp Span:
-30℃~85℃ / -20℃~125℃(with cool device)
Process structure:
All-Welded Construction (non-O-rings)
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Holykell standard carton box for Air LGP Differential Pressure Transducer,
Ensure goods well intact when receive.
Port
Shenzhen/Shanghai/ Any port of China
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 To be negotiated

Holykell Factory 2PSI 4-20mA Air LGP Differential Pressure Transducer



Why Choose and trust HOLYKELL ?

You benefits from:

Factory Experience

More than 16 years of experience in Level sensor industry.
large stock :

within 24 hours delivery for standard specifications.
Supply Ability :

At least 50000 pcs per Month.
Supply Area :

All over the world, about 109 countries (Most of them are from North America, Europe, Australia,Asia and Africa

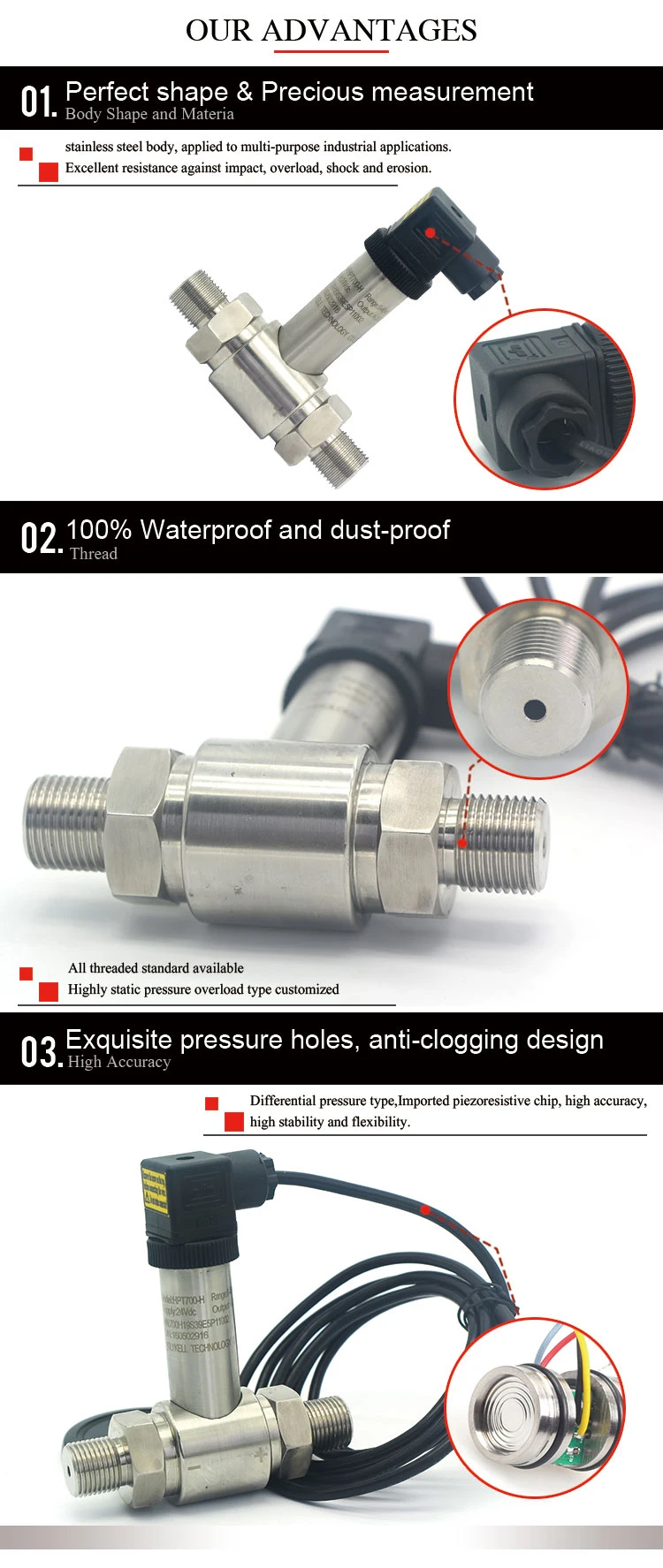

Why Choose HOLYKELL HPT700 Seires?

1.Precision Micro-Machined Silicon Core

2. Explosion Proof and Non-Incendive Available

3. High Stability, Low Drift

4. 316 Welded Stainless Steel Construction

5. Premium Temperature Performance

6. Broad Compensated Temperature Range



Pressure Transducer 2psi

Product Description



Product Description of Holykell HPT700 Differential Pressure Sensor:

HPT700 series Differential pressure transducers can measure the differential pressure of liquids or gases ,wide range of general purpose and industrial applications.This differential pressure sensing technology offers 0.25% accuracy with static operating pressures up to 4MPa. With its digital compensation, the HPT700 DP offers excellent linearity and performance over temperature,long, reliable service life with excellent long term stability.



What's the Specification of Holykell Factory 2PSI 4-20mA Air LGP Differential Pressure Transducer?



Model: Parameter:

HPT700 Series

Pressure Range:

10~50KPa

51~100KPa

101~200KPa

201~1000KPa

High port overload:

50~500 kPa

500~1000 kPa

10~20 Bar

20~40 Bar

Low port overload:

30~150 kPa

150~300 kPa

300~600 kPa

600~1000 kPa

Max Static Pressure:

1~5 Bar

5~20 Bar

20~40 Bar

40~50 Bar

Accuracy:

(Linearity Hysteresis

Repeat ability)

≤±0.25%F.S (by customized);

≤±0.5%F.S (Typical);

 ±1.0%F.S Optional

Stability:

Standard: 0.1%F.S,    Max:0.2%F.S

Medium Temp Span:

-30~85/ -20~125℃(with cool device)

Storage Temp:

-40~125

Temp Compensation:

-10℃~50 or -10~80 or by customized

Medium compatible:

Compatible with 316 Stainless Steel

Electronic Wire:

2 Wires

3 Wires

4 wires

Output:

4~20mA

analog signal

0~5V

analog signal

0~10 V

analog signal

RS485 MODBUS

 (digital signal)

Power Supply:

12~30Vdc

(Typical:24 V DC)

8~30Vdc

(Typical:24 V DC)

15~30Vdc (Typical:24 V DC)

10-30Vdc

(Typical:24 V DC)



 Air LGP Differential Pressure Transducer4-20mA Air Differential Pressure Transducer



Application

What is The Application of HPT700 Differential Pressure Sensor ?

Process Controls

Tank Level Measurement

Filter Performance Monitoring

Corrosive Fluids and Gas Measurement Systems

Flow Measurement with Pitot Tubes

Orifice Plates and Mass Flow Meters

Static Pressure Measurement and Control

Combustion Chambers and Clean Rooms



Buying Guides





1. What is your medium? Water ,oil or others.

2. Working Temperature? -30℃~80or others?

3. Level range: 0-5m or others?

4. Output signal:4-20mA, 0-5V or others
