Ultrasonic Liquid Level Monitor Large Reservoir Monitoring Level Measurement UE3003

FOB Reference Price:Get Latest Price
$90.00 - $249.00 / Piece | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Holykell
Model Number:
UE3003
Range:
0-1...50 M optional
Accuracy:
0.25 ~ 0.5% FS (at blind-fold drive away, 25 ℃)
Working Temp:
-10...60 ℃ (-20 to +70 by Customized)
Power Supply:
12VDC, 24VDC
Blind area:
300mm
Output signal:
4~20mA/0-10V/0-5V/RS485/RS232
Protection grade:
IP66
Application:
water,solid,chemical,diesel etc
Warranty:
1 year
Relay alarm output:
Max 2 channels
Product Certification certification
FCC Certified.
Valid from 2018-05-08 until 2049-12-31
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Export carton package with bubble bag for running Water Level Sensor Ultrasonic Level Measurement
Port
Shenzhen/Shanghai
Video Description

Ultrasonic Liquid Level Monitor Large Reservoir Monitoring Level Measurement UE3003



Why Choose and trust HOLYKELL ?

You benefits from:

Factory Experience

More than 16 years of experience in Level sensor industry.
large stock :

within 24 hours delivery for standard specifications.
Supply Ability :

At least 50000 pcs per Month.
Supply Area :

All over the world, about 109 countries (Most of them are from North America, Europe, Australia,Asia and Africa

Certificate :

CE,ROHS,ATEX Audited by TUV Rheinland and ECM

OEM/ODM :  Accept.



You Credit Guarantee  :



Holykell is the leading seller in this line on Alibaba trade assurance!---You can search and prove that on alibaba.



♦ Trade Assurance: 558 Transactions, total amount is above $ USD 361,000+
♦ Near 50% buyers found ultrasonic level sensor and contact us, Holykell in
ALIBABA
♦ View Holykell 6000+, Send inquiry 200+, Quote 400+ (half of 2017 years)







Holykell Level Sensor For Septic Tank UE3003 Ultrasonic Level Meter

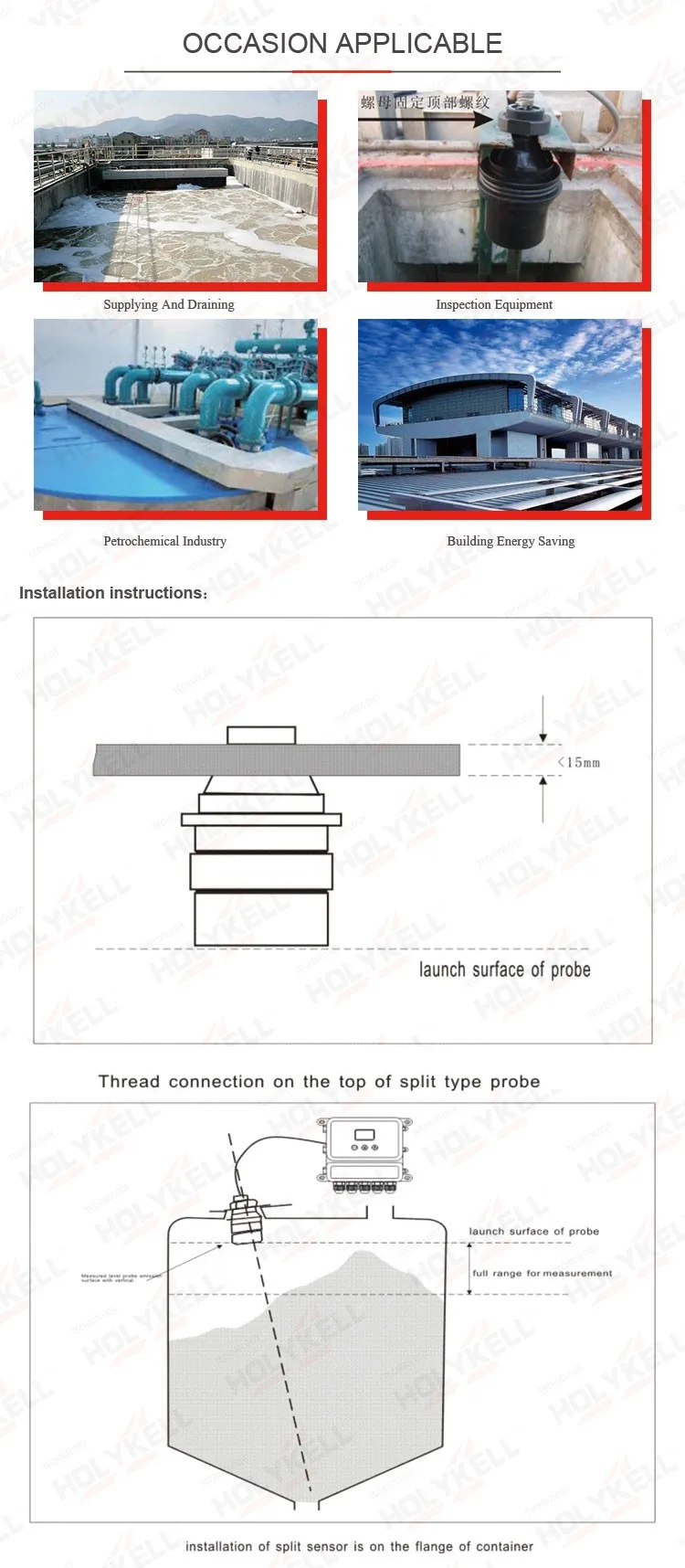

Ultrasonic level sensor Shell is made of solid texture and good NLEPF acoustic characteristics of synthetic material. The body is shape sophisticated aesthetics, waterproof, dust proof, and can adapt to the most of working conditions on site. On liquid cans, the walls, or equipment arm movement, it’s easy to install the UE3003 ultrasonic transmitter. There is no need of such tools as gongs nails, as long as there is a M68× 2.0 gongs hole. A very quick and easy installation, maintenance can be realized.



Why Choose Our Ultrasonic Level Sensor?

1.Support M68× 2.0 mm threaded into type installation and coil clamping type installation,

   the installation more convenient

2.Many model output optional customizable 4-20ma three-wire system, 1-5v, RS485 more customizable

3.Less than 9°C Beam angle design ,Resolution 3mm, less than 200ms responsible time to make sure more accuracy

4.Wide range of application,Sealed high-temperature toxic volatile,flammable and explosive of strongly corrosive liquid medium level measurement of non-contact ultrasonic sensors

5.Housing adopts the NLEPE synthetic material IP66 waterproof,Anti-Skid,Anti-corrosion,Anti-explosion structure

6.High quality terminal blocks ,Excellent anti-jamming is strong, long term stability and durability

7.Four highlighted LED display,Precise digital display,Clear reading ,Quick identity







What's the Specification Our Ultrasonic Level Sensor?

 Holykell Level Sensor For Septic Tank UE3003 Ultrasonic Level Meter



Level Range





1,2,3,5 m, 7 m, 8m, 10m, 12m, 15m…

UE3001 max 7 meters

UE3003 min 5 meters, max 15 meters optional

Signal Output





Voltage: 1 ~ 5V/ 0~5V

Current: 4 ~ 20mA/ 0 ~ 20mA

Serial port: RS485/ RS232

Power Supply



DC12V/300mA (UE3001)

24Vdc/300mA  (UE3003, IP65~IP68 optional)

Protection class

IP65 (default); IP67, IP68 (customized!)

Blind Area

100 ~ 800mm (according to different range and sensor)

Operating temperature



 0 ~ 50 ; (-20 to +70, -10 to +60 Customized)



Installation mounting size

M49 × 1.5 (UE3001), M68× 2.0 (UE3003)



UE3003 Ultrasonic Level Sensors Specifications:

Power Supply: DC12V/300mA (UE3001); 24Vdc/300mA (UE3003, IP65-IP68 optional)

Range: 1,2,3,5 m, 7 m, 8m, 10m,12m, 15m.. (UE3001 Max 7 meters, UE3003 min 5 meters, max 15 meters optional.)

Operating temperature: 0 ~ 50 °C; (-20 to +70, -10 to +60°C Customized)

Storage temperature: - 40 °C ~ 85 °C

Blind Area: ≤ 300 ~ 800mm (according to different range and sensor)

Detection accuracy : 0.25 ~ 0.5% FS (at blind-fold drive away, 25 °C)

Output: 1: Voltage: 1 ~ 5V/ 0~5V

2: current: 4 ~ 20mA/ 0 ~ 20mA

3: serial port: RS485/ RS232

Protection class IP65 (default); IP67, IP68 (customized!)

Installation mounting size: M49 × 1.5 (UE3001), M68× 2.0 (UE3003).



Application attentions:

1) Measuring range and Requirements of blind zone.

2) Media type to be measured (Liquid or solid, such as: Water, sewage, mud, gasoline, diesel oil, toluene, sulfur

dioxide, ore,coal, cement, soybeans, wheat, corn, flour etc.)

If it is liquid: Is there liquid steam, mist, foam, wave, stirring, floating objects;

If it is solid: Is there a dust, granular or powder media is.

3) The minimum ~ maximum temperature and pressure of media.

4) Corrosion of media. If it is placed inside the jar, the jar needs to know the material, and if there is corrosion of the lining.

5) The need for anti-corrosion, explosion-proof, to split or an integrated one.

6) Working environment: exposure to the pond, cover the pond, lying tank, vertical tank, tank, pot is through atmospheric

pressure and so on.



Our Services



Assurance:

Holykell is the leading seller in this line on Alibaba trade assurance!---You can search and prove that on alibaba.



OEM / ODM services

To meet the user diversified requirement, Holykell have established a set of customer service and technical support system with OEM / ODM order as the center, and responded and Handle the customer's requirements in a timely manner to ensure accurate delivery time and product quality.



Order services

Fastest reply:Professional sales engineers 7/24 online services

Payment terms:T/T ,Western union, Paypal, Credit Card, L/C, Escrow others

Fast delivery: within 24 hours release the cargo (normal spec.), Customized 7-12 days after payment .



MAINTENANCE & AFTER-SALES SERVICES

Customer Feedback:  Sales engineers and technical engineers will be one-on-one service for you to exclude all obstacles when use our sensors.

Warranty period: 18 months

Product life-long maintenance: Holykell can provide you with the maintenance of the whole life of the sensors







MAINTENANCE & AFTER-SALES SERVICES



Customer Feedback:  Sales engineers and technical engineers will be one-on-one service for you to exclude all obstacles when use our sensors.

Warranty period: 18 months

Product life-long maintenance: Holykell can provide you with the maintenance of the whole life of the sensors







Company Information
FAQ


FAQ

Q:Can you accept ODM & OEM service ?

A:We professional provide OEM &ODM service for pressure transducer.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.

Q: How can I get the quotation?

A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page. Or contact us directly at (whatsapp:+86 152 7313 9279, Wechat:Y15168524523), you will get the reply within 1hour, and the quotation will send to you according to your requirements.

Q. How can I get my sensors?/ What's the means of transport?

A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator

R. How to order ?

A. In order to recommend you the most suitable ultrasonic level sensor and make an accurate quotation,please provide the following information and send it to our sales when you are going to make an inquiry, thanks !

1. What is your medium? Water ,oil or others.
