Holykell factory HPS300 2mV strain gauge transducer

FOB Reference Price:Get Latest Price
$60.00 - $129.00 / Piece | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
Holykell
Model Number:
HPS300
Name:
Strain Gage Pressure Sensors
Level measurement:
0...10Ba...2000Bar/30000Psi
Output signal:
2mV/V, 3mV/V, 3.3mV/V
Power Supply:
10V DC
Accuracy:
0.5%F.S
Medium compatible:
304/316L Stainless Steel
Water Proof:
IP65 to 67
Pressure Type:
Gauge pressure
Certificate:
CE approving
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Export carton package with bubble bag for protection
HPS300 2mV strain gauge transducer
Port
Shenzhen/Shanghai

Holykell factory HPS300 2mV strain gauge transducer

HPS300 2mV strain gauge transducer

Product Description



Profiles:

HPS300 Series of pressure sensors feature high quality, high stability, small dimension, low weight, compact structure, low cost

and mass production. The products are widely used to measure pressure of air compressors, auto engines, air conditioning

equipment, elevator, lift, gas and liquid pressure etc.

Stainless steel housing is ideal for industrial environment. Pressure sensing elements are selected from well known international

brands strain gage. Four-wires output and All wetted structure no leaking risk.

Products are produced according to military standards of advanced design, prefect technology, scientific management, strict

production and quality control.





Characters:

  • Accuracy: ≤±0.5%F.S.
  • Wide working temperature scope
  • Automation temperature compensation.
  • Excellent overload, Shock and erosion.
  • Anticorrosive diaphragm and port.
  • OEM economic selection
  • 1.5 times range standard overload.
  • 3 times range burst pressure
  • CE approved

Applications:



  • Refrigeration and Air Compressor
  • Hydraulic pressure controller
  • Petrochemical industry
  • Air-conditioner production line testing
  • Pressure meter
  • Laboratory equipment
  • Water pressure measurement
  • Saving water to irrigate
  • Liquid and Gas pressure measurement

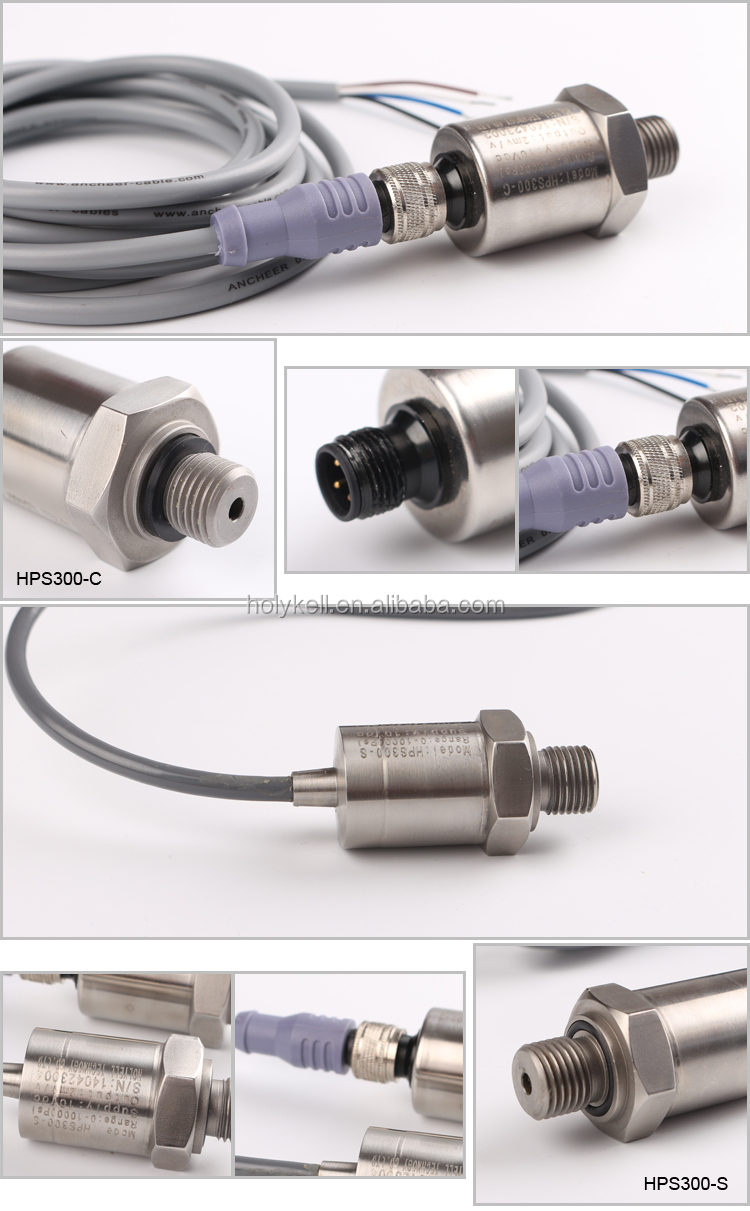

 Products Show:





Specification

Model:

Parameter:

HPS300  Series Economic OEM  Strain Gage Pressure Sensors

Pressure Type:

Gauge pressure

Pressure Range:

0...10 Bar......2000Bar /30000Psi G Optional.

Overload:

150%F.S

Burst Pressure:

300%F.S

Power Supply:

10 V DC or 5V DC

Output:

2mV/V, 3mV/V, 3.3mV/V Optional.

Electronic Wire:

4 Wire

Accuracy:

(Included Linearity Hysteresis

Repeatability)

 ±0.25%F.S

 ±0.5%F.S

Optional

Long-term Stability:

0.15%FS/year typ. ; 0.2%FS/year(max.)

Zero temp. drift:

0.03%FS/(≤100kPa),  0.05%FS/(>100kPa)

FS temp. drift:

0.03%FS/(≤100kPa),  0.05%FS/(>100kPa)

Temperature Compensation:

0~50

Working Temp:

-30℃~80

Storage Temp:

-40~125

Medium compatible:

Various media compatible with the 304/316 stainless steel

Electronic connection:

M12 Connector; Twist Lock 4 Pin Connector (IP65); Directly Cable IP65 Optional.

Process connect port:

7/16’‘-20UNF male1/4’‘NPT male, 1/2’‘NPT male, G1/2’‘… (by customized)

Response time:

10 ms

Certificate approve:

CE Certificate.

EMC Standard:

electromagnetic radiation:EN50081-1/-2

electromagnetic susceptibility:EN50082-2

Water Proof Grade:

IP65

Weight:

Net weight 0.1KG.

Cable length:

Standard 2 meters, special cable length by customized.

Remarks:

NA
