Holykell factory Clamp pressure transmitter Sanitary flush diaphragm type HPT602

FOB Reference Price:Get Latest Price
$115.00 - $250.00 / Piece | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
Holykell
Model Number:
HPT602
Level range:
1M, 2M, 5M, 10M,20M...200M sanitary pressure transmitter
Working Temp:
-20℃~80℃
Temperature Compensation:
-10℃~65℃
Power supply:
24V DC ,12VDC ,12~36V DC
Signal Output:
Analog 4-20mA (2 wires) ,0-5V,0-10V(3 wires)or digital output
Diaphragm material:
Piezoresistive Silicon flush diaphragm pressure sensor
Waterproof:
IP68
Clamp pressure transmitter:
Yes
Certificate approving:
Exia IICT6 and CE Certificate
Warranty:
One year
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Holykell Box A B C D E F
Clamp pressure transmitter Sanitary flush diaphragm
Port
Shenzhen/Guangzhou

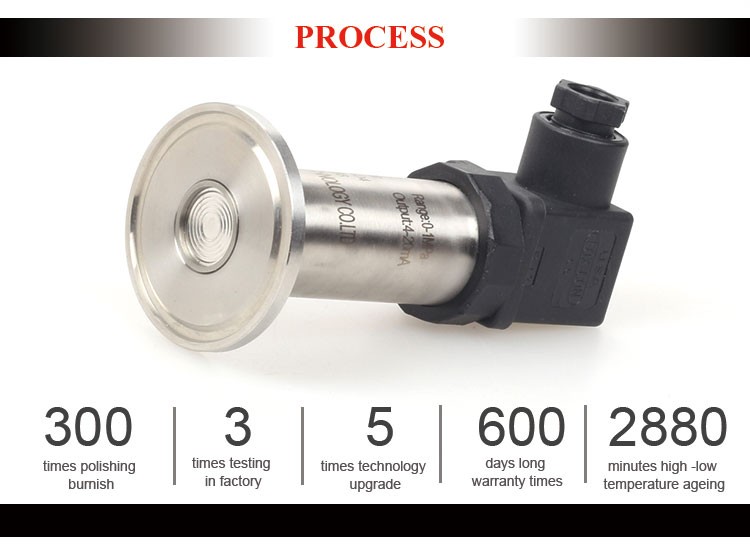

Clamp pressure transmitter Sanitary flush diaphragm type HPT602





Product Overviews





HPT601/602 is pressure and level transmitter with sanitary flush diaphragm. All process connections of the flush pressure

transmitter are made of stainless steel, fully welded and isolate the process medium from the pressure measuring instrument

via a positive seal. A reliable, dead-space free sealing between the process connection and the measuring medium is thus

assured.

It has been specifically designed for the measurement of viscous, paste-like, adhesive,  particulates containing and

contaminated media, which would clog the pressure channel of conventional process connections. This model application in

the field of water tank, Fuel tank, building& office water level measurement, city water supply, irrigation, food and sanitation,

water factory, refinery, metallurgy, glass factory, sewage dispose center, water supply, reservoir, river, sea…

diaphragm pressure transmitter

Specification

clamp pressure transmiter

HPT602 Flush Diaphragm Pressure Transmitters specs

Pressure Range:

-1 Bar-0-1 Bar.....50 Bar (for pressure measurement)

0-1 mH2O........500 mH2O Optional (for level measurement)

Output:

4~20mA, 0~5V, 1~5V, 0.5~4.5V, 0~1V, RS485 Modbus RTU

Power Supply:

12~36V DC, 5V DC, 15~36V DC, 10-30V DC

Accuracy:

≤±0.5%F.S; ≤±0.25%F.S; ≤±0.15%F.S (high cost type!)

Working Temp:

-30℃~85℃ (Non-Cooling Device); -30℃~150℃ ( With Cooling Device)

Housing:

Stainless Steel

Diaphragm:

316L Stainless Steel

Electronic connection:

DIN 43650 Hirschman Terminal Box; Fixed cable

Process Connect:

G1/2”, G1”, M20*1.5, Φ50 flange or by order.

Water Proof:

IP65 to IP67

HPT602 Flush Diaphragm Level Transmitters Dimensions

Clamp pressure transmitter

Applications

Pressure Transmitters & Level Sensors Applications

diaphragm pressure transmitter

Production Flow

clamp pressure transmiter

Our Services

1. Customized Product

Holykell Sensor provides OEM Pressure Sensors, Level Sensors and Custom-Design services

With know-how technique and mass production capability, we are able to provide the specified sensing solution according

to customer's application.

2. Quality Quarantee

12 or 18 months warranty.

3. Shipment & packing

Pressure transmitters or level sensors are generally shipped by International Express including UPS, FedEx, DHL and TNT

as you required.  By air or by sea is also available.

All products will be well packed in exported type carton box properly and securely. Packing list will be enclosed inside the box.

4. Contact us

We have an active and experienced sales team to serve you on technical question and business issue.

Within 24 working hours, we will come to you at the first time!

Clamp pressure transmitter
