Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters, turbine type
GAS Oil Flow meter
Thread, Flange optional
2000 Unit/Units per Month
Packaging & Delivery
Carton Box, Wooden box optional
1 - 2
To be negotiated
Holykell factory Fuel Oil Flow meter
Turbine fule oil Flow Meter ,
Diesel Fuel Oil Flowmeter GAS Flow Meter
The sensor is with hard alloy bearing thrust type, which may guarantee the precision and improve the wear resistance performance as well.
Simple and firm structure, easy for installation and dismantling.
Wide range of measuring with very lower flow velocity limit.
Small loss of pressure,fine repeat
Ability and high precision.
High resistance to electromagnetic interference and vibration.
HLY series turbine flow meter is a kind of intelligent integration by using the latest international digital integrated technology and according to the actual needs of domestic industrial automatic control research and development of a new generation of high quality intelligent instrument.Piezoelectric crystals as detecting element stress testing new type intelligent turbine flow meter.This instrument has the range than wide, high precision, small pressure loss, good medium generality, and the flow rate is proportional to the pulse output, current signal, the RS - 485 communication, and computer combination conveniently.This Instrument has the characteristics of simple structure, high universality and high stability, respectively, are two kinds of active, passive, passive type does not need outer power supply built-in 3.6 V batteries, battery life more than three years.The liquid crystal display meter, and instantaneous flow rate and flow accumulated, real-time temperature and pressure in real time.Intelligent turbine flow meter can through internal procedure, multi-point linear compensation for traffic signal, through the intelligent flow meter multi-point linear compensation, ensure accuracy of flow meter range segment at each point.

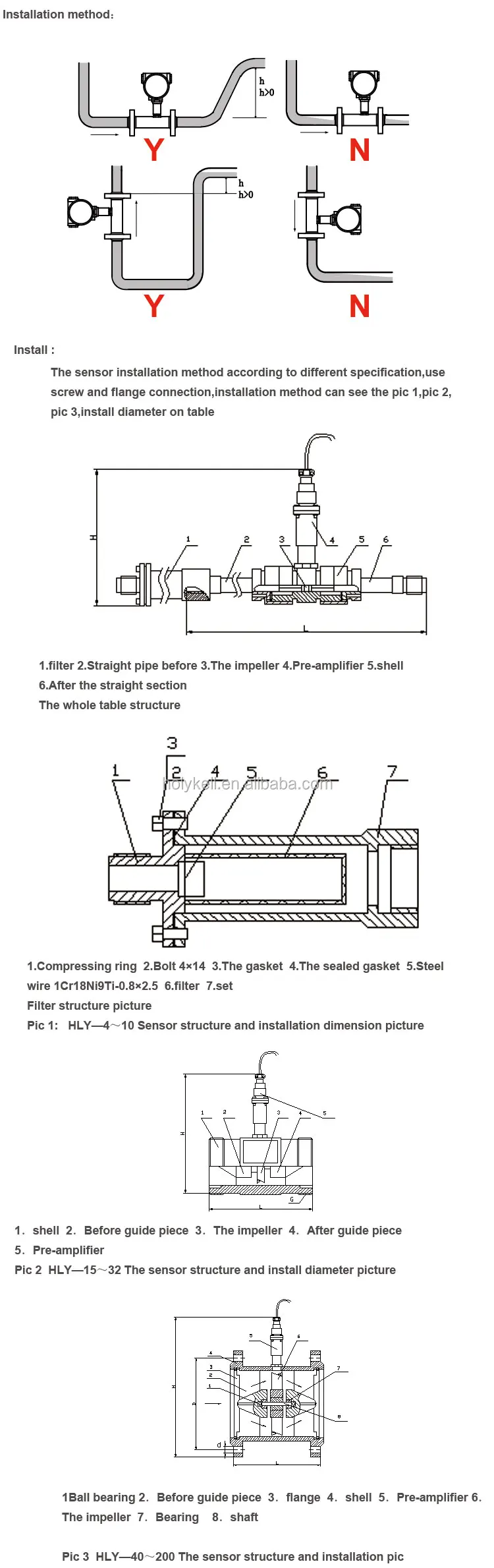

1:How to install the turbine flow meter ?
We could provide manual of turbine flow meter ,kindly contacts us freely. 2:How can i choose this flow diameter ?
Yes,That 's according to your pipe diameter and flow range
we have profession guide you to choose suitable micro flow meter
3:Could I get samples? Yes,we have materials in stock to help you to get the samples as soon as we can. 4:How about the quality of the magnets? We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you. 5:Could you provide me the shortest lead time? We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you. 6:Could I visit your factory? Of course,if you need we will help you to visit our factory. 7:If I have paid,when will you help me to produce? When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
