Holykell Factory UE3008 Fuel Tank Ultrasonic Level Sensor with Display

FOB Reference Price:Get Latest Price
$60.00 - $198.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 50 >50
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
Holykell
Model Number:
UE3008 fuel tank level sensor
Theory::
0~5m Liquid Ultrasonic Level Sensor
Maximum range:
5 meters
Single Output1::
1~5V/ 0~5V/0~10V
Single Output2::
4 ~ 20mA
Serial port::
RS485 (Modbus),NPN, Relay output optional (Max 3 channels)
Water proof::
IP65
Power supply:
DC12-24V, power dissipation: <1.5W
Certificate:
CE
Warranty::
One Year
Application::
fuel tank, water tank
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standed carton packages
fuel tank level sensor
Port
Guangzhou/Shenzhen or any port of China
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(days) 10 To be negotiated

Holykell Factory UE3008 Fuel Tank Ultrasonic Level Sensor with Display



Why Choose and trust HOLYKELL ?

You benefits from:

Factory Experience

More than 16 years of experience in Level sensor industry.
large stock :

within 24 hours delivery for standard specifications.
Supply Ability :

At least 50000 pcs per Month.
Supply Area :

All over the world, about 109 countries (Most of them are from North America, Europe, Australia,Asia and Africa

You Credit Guarantee  :

Holykell is the leading seller in this line on Alibaba trade assurance!---You can search and prove that on alibaba.

♦ Trade Assurance: 558 Transactions, total amount is above $ USD 361,000+
♦ Near 50% buyers found water level sensor and contact us, Holykell in
ALIBABA
♦ View Holykell 6000+, Send inquiry 200+, Quote 400+ (half of 2017 years)


Our Services

Our Services


 OEM / ODM services

To meet the user diversified requirement, Holykell have established a set of customer service and technical support system with OEM / ODM order as the center, and responded and Handle the customer's requirements in a timely manner to ensure accurate delivery time and product quality.



MAINTENANCE & AFTER-SALES SERVICES

Customer Feedback:  Sales engineers and technical engineers will be one-on-one service for you to exclude all obstacles when use our sensors.

Warranty period: 18 months

Product life-long maintenance: Holykell can provide you with the maintenance of the whole life of the sensors



Why Choose Our Ultrasonic Level Sensor?



HOLYKELL’s Ultrasonic sensor is a non-contact, high reliability, cost-effective, easy installation and maintenance of level measurement instruments. It does not have much contact with the media will be able to meet the requirements of level measurement, which was developed after years of efforts the company has a complete new generation of proprietary ultrasonic level meter.



Product Description



Specifications:

Measuring Range:0-5m, Blind Area: ≤60mm

Detection accuracy: 0.1%F.S. or 1mm.

Supply: DC12-24V, power dissipation: <1.5W

   Output: 1. Voltage: 1 ~ 5V/ 0~5V/0~10V/1~10V

                 2.Current: 4 ~ 20mA/ 0 ~ 20mA (loading big than 300 ohm)

                 3.Serial port: RS485 (Modbus)

                 4.NPN, Relay output optional (Max 3 channels)

Operating Temperature: -20 ~ +60 °C

Relative humidity: 0~95%

Working pressure: atmosphere pressure

Protection class IP65 (default); IP68 (custom, another exercise price please)

Installation gong pattern install M48× 1.5

Wave beam Angle:

Net weight: 332g

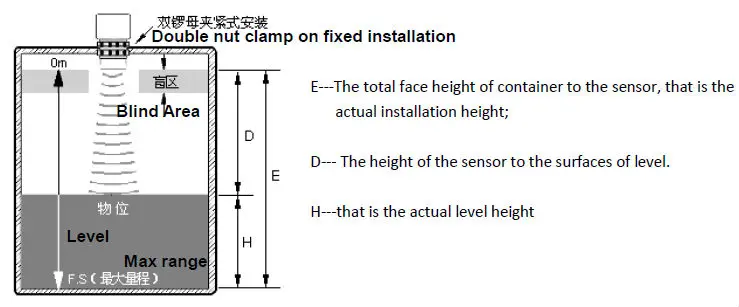

Measuring mode:H-Value-added measurement:E-D values; D-value measurement:E-H values.

(According to user requirements, the factory Settings, as shown in the diagram)



 fuel tank level sensor





Selection of parameters:



1) Media type to be measured (Liquid or solid, such as: Water, sewage, mud, gasoline, diesel oil, toluene, sulfur dioxide, ore, coal, cement, soybeans, wheat, corn, flour, etc.)



If it is liquid: Is there liquid steam, mist, foam, wave, stirring, floating objects;



If it is solid: Is there a dust, granular or powder media is.



2) The minimum ~ maximum temperature and pressure of media.



3) Corrosion of media. If it is placed inside the jar, the jar needs to know the material, and if there is corrosion of the lining.



4) The need for anti-corrosion, explosion-proof, to split or an integrated one?



5) Working environment: exposure to the pond, cover the pond, liquid tank, pot is through atmospheric pressure and so on.



6) Power Supply: 12 to 24VDC



7) Output: 4-20mA or RS485 or need to relay output?

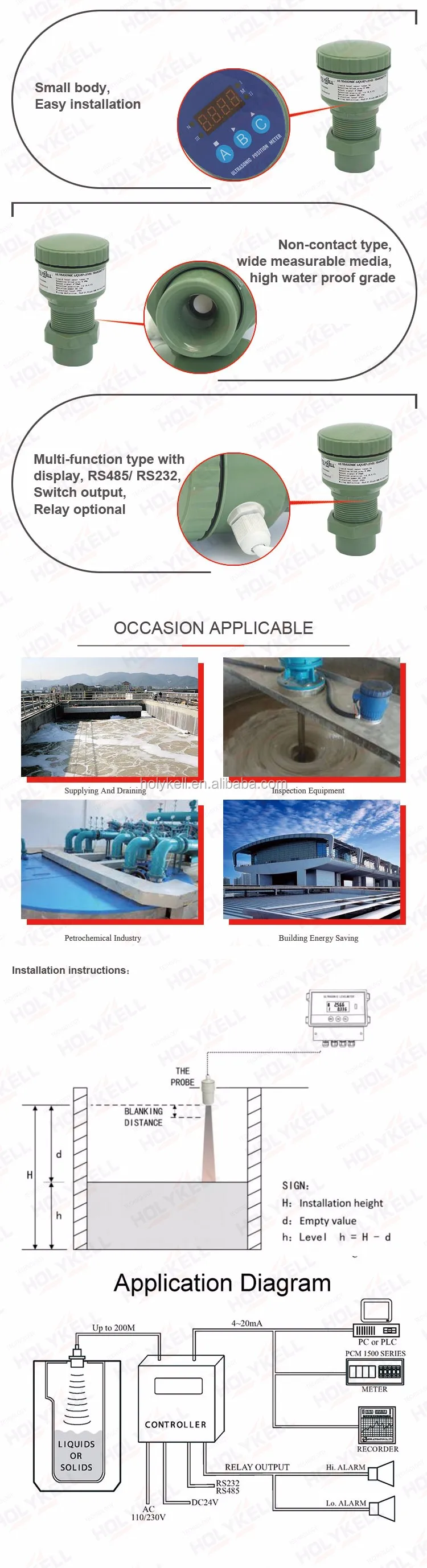

Detailed Images





diesel fuel level sensor



Buying Guides

In order to recommend you the most suitable products and make an accurate quotation,please provide the following information and send it to our sales when you are going to make an inquiry, thanks !





1. Ambient temprature. 0~60 degree?

2. Level range or tank depth: 1m or 5m?

3. Output signal: 4~20mA is ok ? or other?



Certifications

Certifications



level sensor with display



Company Information

Company Information

 Holykell Technology Co. , Ltd is a high-tech company integrating R&D, production and distribution. The company has a purification plant of 5000m2, an annual output of 1 million production line of pressure sensor, transmitter and intelligent digital instrumentation.

Now the company has more than 120,000 customers worldwide, the products have been exported to Europe, America, Australia, Africa, southeast Asia, 109 countries.

Holykell can provide a cost effective solution for pressure monitoring for a variety of applications. Welcome to your inquiry.



fuel tank level sensor



FAQ

Q:Can you accept ODM & OEM service ?

A:We professional provide OEM &ODM service for pressure transducer.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.

Q. How can I get my sensors?/ What's the means of transport?

A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator

Q: How can I get the quotation?

A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.  you will get the reply within 12hours, and the quotation will send to you according to your requirements.



Click here for more information
