Holykell Factory HPT602 Milk Drinking Water Food Grade Level Sensor

FOB Reference Price:Get Latest Price
$99.00 - $198.00 / Piece | 1 Piece/Pieces (Min. Order)
Material:
Stainless steel
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Holykell
Model Number:
HPT602 Food Grade Sensor
Highest Accuracy:
0.15%F.S
Range:
-1 Bar-0-1 Bar.....600 Bar Optional
Output signal:
4~20mA,0~5V/0~10V/0.5~4.5V,Digital RS485
Application:
Food ,Juice, milk ,Sanitary liquid industry
Electronic connection:
DIN 43650 Hirschman;Fixed cable optional
Pressure connect port:
Clamp 50 mm
Power supply:
12~36Vdc/7-30V
Diaphragm:
Sanitary flush diaphragm
Working Temp:
-30℃~+150℃ ( With Cooling Device)
Body Marterial:
316 full welded stainless steel
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Holykell standard carton box for Food Grade Level Sensor,
ensure goods well intact when receive.
Port
Shenzhen/Shanghai/ Any port of China
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 To be negotiated

Holykell Factory HPT602 Milk Drinking Water Food Grade Level Sensor

milk Level Sensordrinking water Level SensorFood Grade Level Sensor

milk Level Sensordrinking water Level Sensor

Product Description

 Food Grade Level Sensor

HPT601/HPT602 is a submersible level transducer widely used in water or liquid measure and control of medicine, metallurgy, electricity, mine, city water supply and drainage and hydrology, etc. It consists of an imported MEAS TE piezoresistive sensing element encased in 316 SS housing. Strong wear resistance,high hardness ,its service life is 2-3 times of similar products



milk Level Sensordrinking water Level Sensor

Why Choose HOLYKELL HPT601 Level Sensor Seires?

Feature

Advantage

Benefit

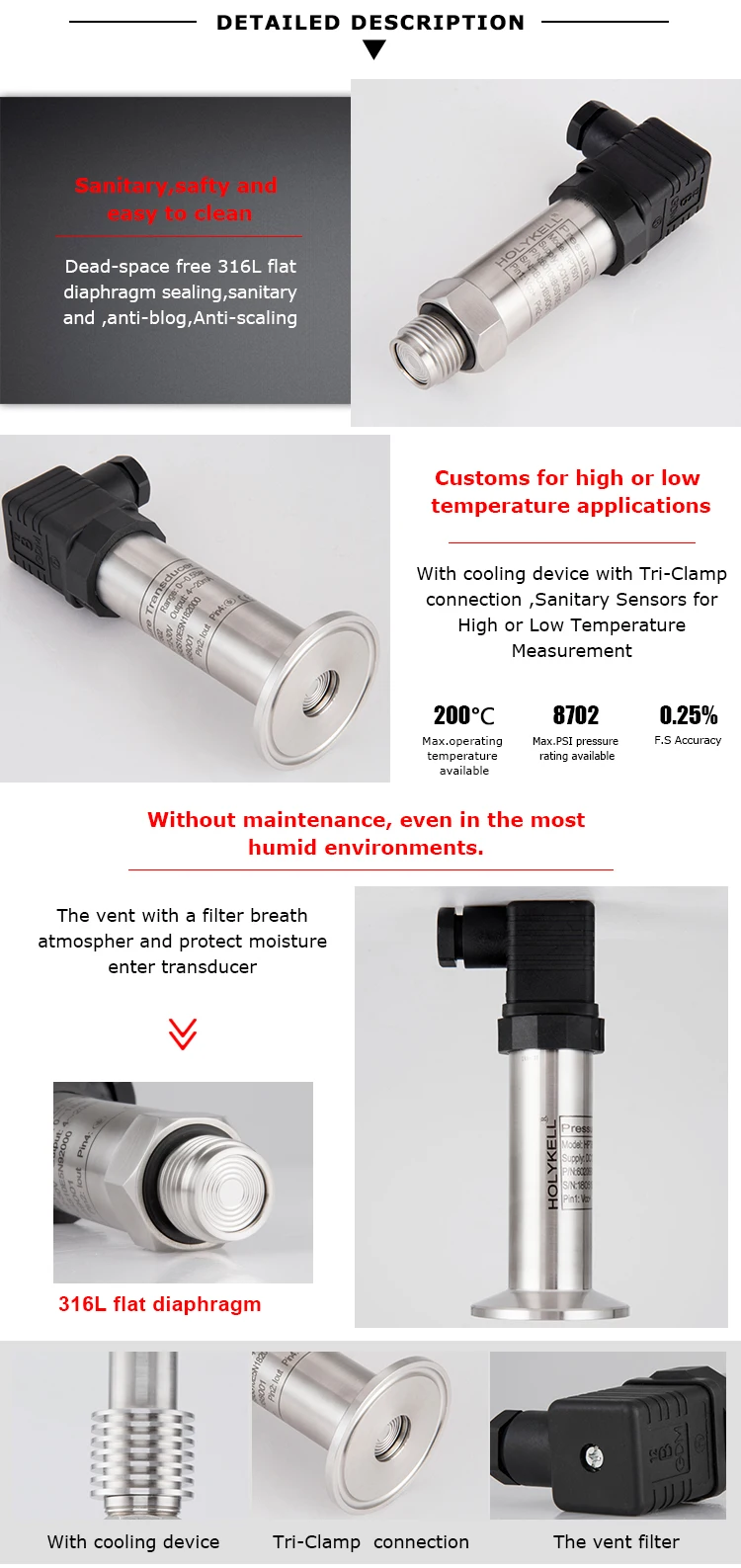

dead-space free 316L flat diaphragm sealing

Sanitary and ,anti-blog,Anti-scaling

Sanitary,safty and easy to clean

With cooling device with Tri-Clamp  connection

Sanitary Sensors for High or Low Temperature Measurement

Customs for high or low temperature applications

USA TE Chip,Digital PCB board

High accuracy 0.25%  Small temperature drift,automatically compensates for changes in barometric pressure

Stability,keep sensor running longer by reducing downtime and maintenance costs

 lightning  surge reverse protection

short-circuit conditions to protect prevent reverse connection; Instant voltage overload protection

 running reliable and longlasting in harsh condition

The vent with a filter

breath atmospher and protect moisture enter transducer

without maintenance, even in the most humid environments.


1. 5-10 years design life, the lifelong maintenance; Import diffusion silicon core body, ≤1       ms response time;Its service life is 2-3 times of similar products.

2. Adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;Anti-interference is enhanced by 300%, the stability is over 10 years.

3. The unique design of 8 hole and The unique filter design, it Can effectively filter out impurities, prevent blockage, prevent shock; Prevent plugging rate increases more than 80%

4. Automatic temperature compensation, -40 ~ 85℃, autocorrection temperature drift.

5. Five layers of seamless and waterproof dustproof connection design, international level IP68; 12 mm waterproof and oil-proof cables, the service life is more than 10 years.





Application

 milk Level Sensor



The HPT601 (level sensor) is widely used in water tank, Fuel tank, building& office water level measurement, city water supply, irrigation, food and sanitation, water factory, refinery, metallurgy, glass factory, swage dispose center, water supply, and are highly praised by consumers.



·Irrigation Equipment

·General industrial applications

·Food and beverage industry

·Filling and packing machinery

·Dairy and beverage processing

·Pharmaceutical

·Dosing technology

Our Services

 drinking water Level Sensor

Company Information

 Food Grade Level Sensor



Buying Guides

In order to recommend you the most suitable products and make an accurate quotation,please provide the following information and send it to our sales when you are going to make an inquiry, thanks !



1. What is your medium? Water ,oil or others.

2. Working Temperature? -30℃~80℃

3. Level range: 0-1m...500m optional

4. Output signal:4-20mA, 0-5V or others
