Holykell factory HPT623 Capacitive Fuel Level Sensor

FOB Reference Price:Get Latest Price
$65.00 - $169.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
Holykell
Model Number:
HPT623 capacitive fuel level sensor
Product Name:
Smart Capacitance Level Sensors
Level Range:
0-200mm...1000mm
Application:
Truck,Bus , Fleet management,Water treatment
Output signal:
4-20mA; RS485; 0-5V
Accuracy:
1%FS
Material:
Aluminum Alloy
Power supply:
11-33V DC
Medium working Temp:
-30-85℃
Probe diameter:
304/316 SS with PTFE/brass
Warranty:
18 months
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Holykell standard carton box for capacitive fuel level sensor, ensure goods well intact when receive.
Port
Shenzhen/Shanghai/ Any port of China
Lead Time :
Around 10 working days after paid

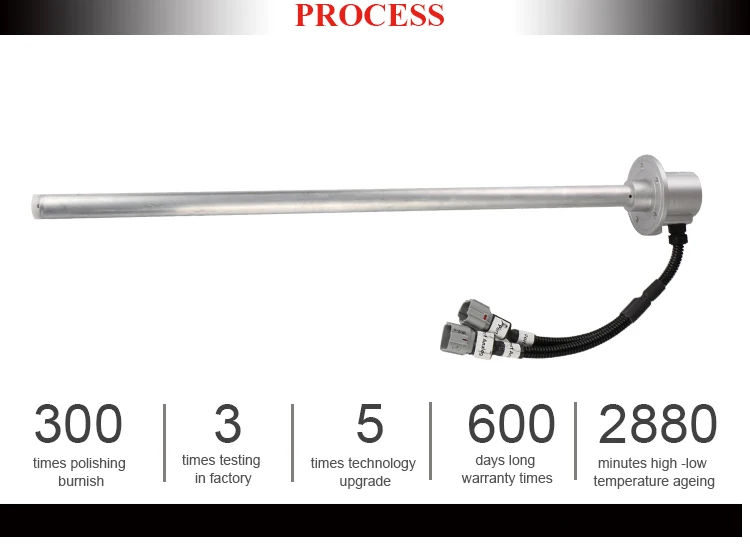

Holykell factory HPT623 Capacitive Fuel Level Sensor

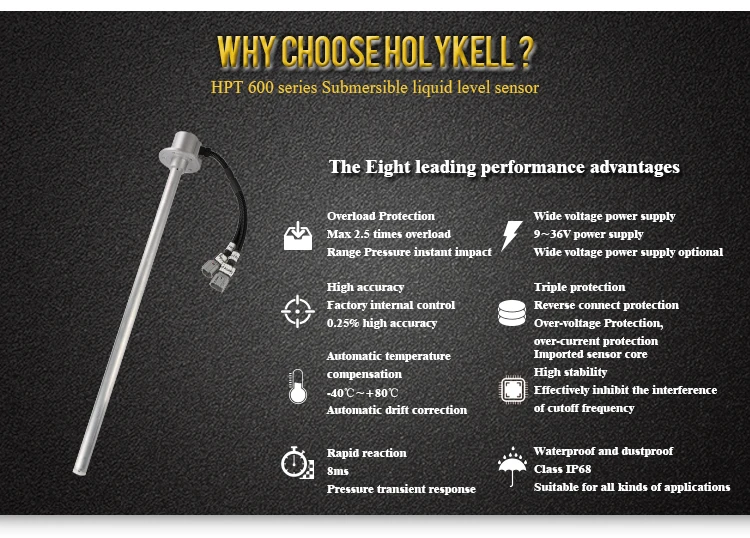

Why Choose and trust HOLYKELL ?

capacitive level sensor



You Credit Guarantee  :

Holykell is the leading seller in this line on Alibaba trade assurance!---You can search and prove that on alibaba.

♦ Trade Assurance: 558 Transactions, total amount is above $ USD 361,000+
♦ Near 50% buyers found water level sensor and contact us, Holykell in
ALIBABA
♦ View Holykell 6000+, Send inquiry 200+, Quote 400+ (half of 2017 years)

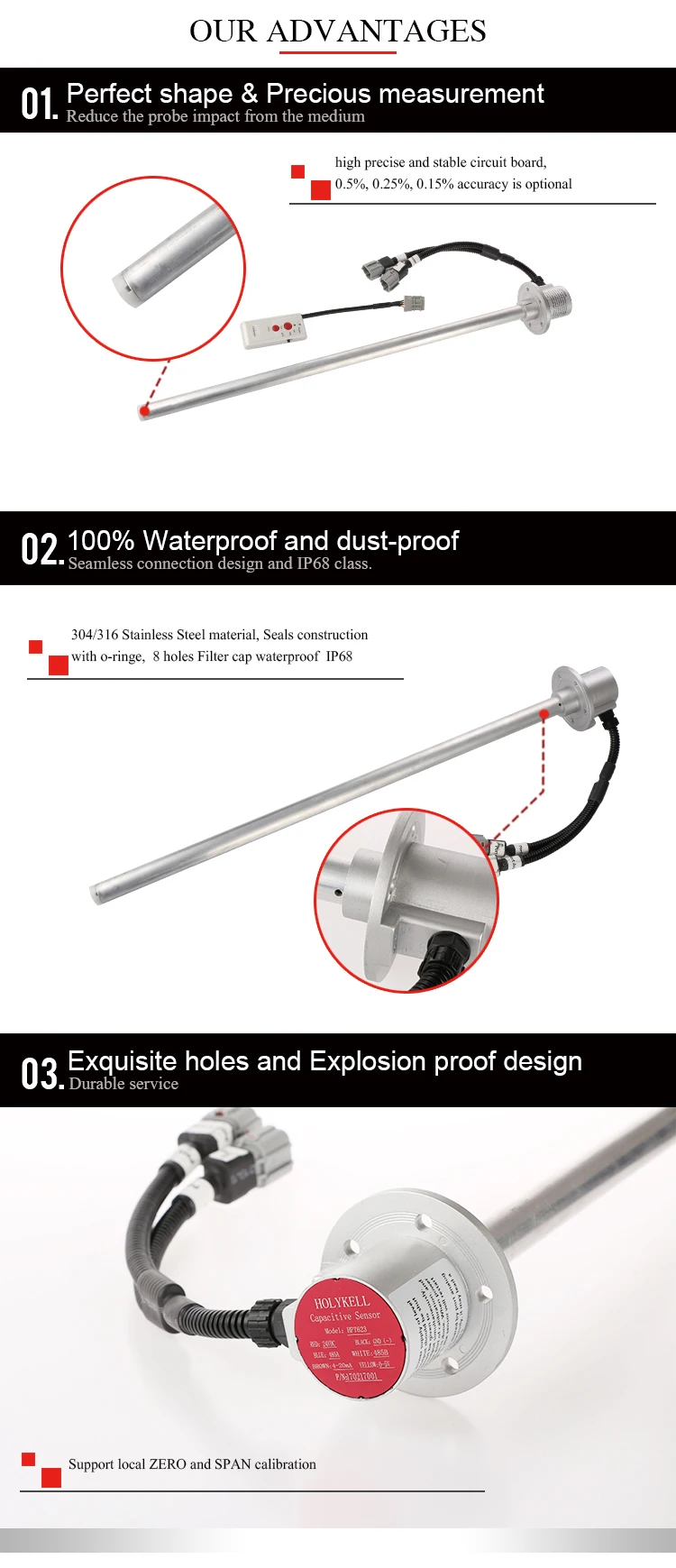

Why Choose HOLYKELL HPT623 Seires?



capacitive fuel level sensor

Product Description of Holykell Level Sensor HPT623:

HPT623 smart capacitance liquid-level sensor is the customized sensor meter for precise measuring of the liquid level ofautomobile oil tanks, sealed tankers, trucks fuel tank, locomotives tanks and oil depots, etc.The whole sensor is accept max 30% cut off probe and is featured with the good impact resistance, convenient installation,high reliability, high precision, and stable performance. It can not only be installed on various occasions requiring preciselevel measuring of gasoline, diesel, etc, but also be Application for measuring of various non-conductive liquids.



Product Description

 What's the Specification of Holykell factory HPT623 Capacitive Fuel Level Sensor?

Model:

Parameter:

HPT623 Series  Capacitance Fuel Tank Level Sensors/Probes
(Cut off probe by customers is available!)

Pressure Range:

0-100 mm ~ 1000 (mm) optional

Min resolution:

1 mm

Blind zone:

Bottom of probe: 10 mm; Top of probe: 10 mm

Probe Diameter:

Φ17.8 mm

Overload:

Standard atmosphere pressure or 0Bar to +2Bar optional

Accuracy:

(Linearity; Hysteresis;

Repeatability)

≤ ±1.0%F.S;

≤ ±0.5%F.S;

Optional

Stability:

Standard: 0.1%F.S,    Max:0.2%F.S

Working Temp:

-40℃~85℃

Storage Temp:

-50℃~95℃

Medium compatible:

Various media compatible with the aluminum alloy

Electronic Wire:

6 Wires

6 Wires

Output:

4-20 mA

1-5V

0.5-4.5V

0-5V

Power Supply:

10~32 V dc

10~32 V dc

10~32 V dc

10~32 V dc

Zero Temperature Drift

0.05%/10℃

Max working current:

<15 mA

Output signal refresh rate:

5s/times (by customized)

Electronic connection:

Directly cable with connector 6 Pins

Process connect port:

5 holes SAE flanges

Response time:

First time starting time from 1s to 5s

Certificate approve:

CE Certificate and Exia II CT6

EMC Standard:

electromagnetic radiation:EN50081-1/-2

electromagnetic susceptibility:EN50082-2

Remarks:

Special applications request by customized




Detailed Images



fuel level probecapacitive level sensor

Application

What is The Application of HPT623 Level Sensor ?

  • Diesel Tank Level Measurement
  • Non conductive Liquid level measurement
  • Gasoline level measurement
  • truck fuel tank level measurement
  • Bus fuel tank level Measurement
  • Sealed tank liquid level measurement
  • And so on



Buying Guides

In order to recommend you the most suitable products and make an accurate quotation,please provide the following information and send it to our sales when you are going to make an inquiry, thanks !



1. Level range: 0-5m or others?

2. Output signal:4-20mA, 0-5V or others
