Holykell Factory H5300 Intelligence PID Temperature Controller

FOB Reference Price:Get Latest Price
$95.00 - $185.00 / Piece | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
Holykell
Model Number:
H5300 pid temperature controller
Accuracy:
0.2%FS±1 bit
Usage:
indoor
Theory:
Temperature Controller
Temperature range:
-200 to 2300 optional
Imput signals:
Current Voltage Resistance Thermocouple
Output signals:
Current Voltage Relay 24V distribution or feeder
Power supply:
AC 100 ~ 240V, (50/60HZ); DC20-29V
Display style:
-1999 ~ 9999 display range
Communication:
RS-485/232 MODBUS Communication
Feeder output:
Feeder of Loop 1 Feeder of Loop 2
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Holykell standard carton box for pid temperature controller, ensure goods well intact when receive.
Port
Shenzhen/Shanghai/ Any port of China
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 To be negotiated

Holykell Factory H5300 Intelligence PID Temperature Controller

Holykell H5300 Intelligence PID Temperature Controller



Why Choose and trust HOLYKELL ?

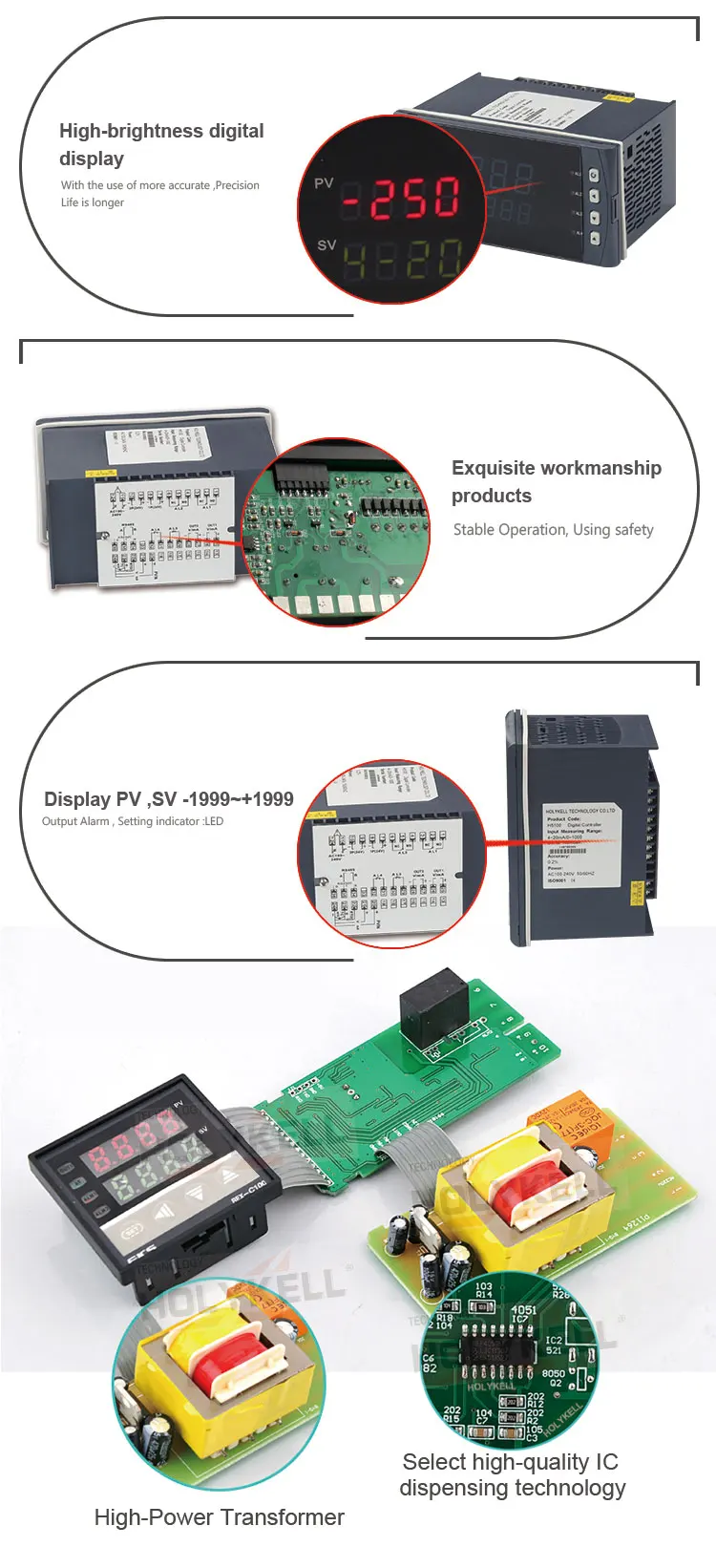

Product Description of Holykell Digital Display H5300



H5100 Series single-loop digital display controller with automatic SMD packaging technology has a
strong anti-jamming capability. Designed with dual-screen LED display, it could display more contents.
It can be used in conjunction with various sensors,transmitters to display temperature, pressure,
liquid level, speed, force and other physical parameters, and to output alarm control, analog
transmission, RS-485/232 communication etc. More than the traditional digital display meters is a new
function to restore the factory default parameters, with easier operation and better applicability.



Product Description

 What's the Specification of Holykell H5300 Intelligence PID Temperature Controller?

Input

Input signals

Current

Voltage

Resistance

Thermocouple

Input Impedance

≤250Ω

≥500KΩ





Maximum input current

≤30mA







Maximum input

voltage



≤6V





Output

Output signals

Current

Voltage

Relay

24V distribution or feeder

Output load capability

≤500Ω

≥250 KΩ

(Note: Please replace the module for higher  load capacity)

AC220V/0.6(small)

DC24V/0.6A(small)

AC220V/3A(big)

DC24V/3A(big)

According to Remarks

≤30mA

Comprehensive parameter

Accuracy

0.2%FS±1 bit

Setting model

Panel touch key

parameter setting values locking;

store the setting values permanently

Display style

-1999 ~ 9999 display range

0 ~ 100% measured value lightness bargraph display;

LBD display for working state

Working environment

Ambient temperature: 0 ~ 50 ℃;

Relative humidity: ≤ 85% RH;

Far from strong corrosive gas

Power supply

AC 100 ~ 240V, (50/60HZ);

DC 20 ~ 29V

Power

≤5W

Frame

Standard snap-on

Communication

Standard MODBUS communication protocol,

RS-485, communication distance up to 1 km,

RS-232 ,communication distance up to 15 meters

Note: While with communication function, the communication converter should be a active one.
