Holykell Factory HPT200-HT Explosion Proof High Temperature Pressure Transmitter

FOB Reference Price:Get Latest Price
$60.00 - $104.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
Holykell
Model Number:
HPT200-HT holykell pessure transmitter
Working Temp:
-60℃~200℃
Pressure core:
Sapphire pressure core
Accuracy:
0.15%F.S; 0.25%F.S; 0.5%F.S optional
Pressure Range:
0 bar...2000 bar optional
Electronic connection:
DIN43650 Hirschman Connector
Pressure connect port:
M20X1.5 male or by customized
Power supply:
12~36Vdc
Output signal:
4~20mA,0~5V/0~10V ,4-20mA with Hart protocol
Application:
Steam, Chemi-industry,Food Industries .etc
Warranty:
18 months
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Holykell standard carton box for holykell pessure transmitter, ensure goods well intact when receive.
Port
Shenzhen/Shanghai/ any port of China
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 To be negotiated

Holykell Factory HPT200-HT Explosion Proof High Temperature Pressure Transmitter

Holykell HPT200-HT Explosion Proof High Temperature Pressure Transmitter



Why Choose and trust HOLYKELL ?

You Credit Guarantee  :

Holykell is the leading seller in this line on Alibaba trade assurance!---You can search and prove that on alibaba.

♦ Trade Assurance: 558 Transactions, total amount is above $ USD 361,000+
♦ Near 50% buyers found water level sensor and contact us, Holykell in
ALIBABA
♦ View Holykell 6000+, Send inquiry 200+, Quote 400+ (half of 2017 years)

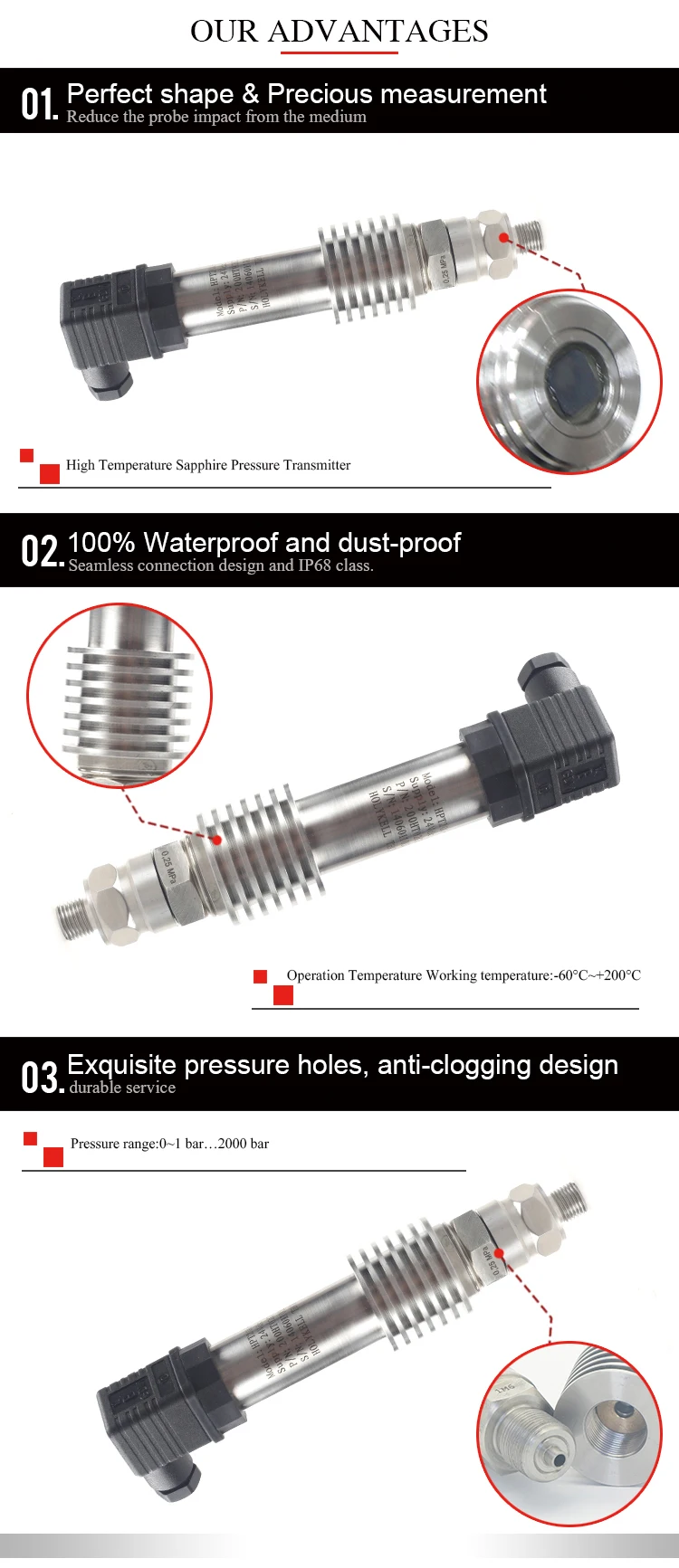

Product Description of Holykell Pressure Transducer HPT200-HT:

The HPT200 series pressure transmitter use high quality imported U.S.A MEAS TE piezoresistive pressure sensor  and use the military level of printer PCB board, Anti-Jamming enhanced 300%, stability of circuit is above 10 years. 5-10 years long lifetime design, Outstanding shock& vibration performance, can withstand the most stringent conditions



Why  Choose Our Pressure Transducer?

a.All welded 316L housing

b.ImportedU.S.A MEAS TE piezoresistive pressure sensors, 5-10 years life design

c.Military level of printer PCB board, Anti-Jamming enhanced 300%, Stability of Circuit>10 years

d.Linear Amplified Output

e.Automatic temperature compensation -40~80℃,Temperature drift Automatic modified linear  ≤0.01%FS

f.Superior Long term Stability

g.Excellent Repeat ability/Hysteresis

h.EMI/RFI Rejection

i.Low power consumption

j.Ten million cycle life expectancy

k.Outstanding shock& vibration performance





What's the Specification of Holykell HPT200-HT Explosion Proof High Temperature Pressure Transmitter?

 Specification

Model

HPT200-HT

Pressure Range

0 bar...2000 bar optional

Pressure Type

Gauge pressure; Absolute pressure; Sealed gauge pressure;

Output

4~20mA

4-20 mA or

0~5V ,1~5V, 0-10V

RS485

4~20mA +Temp (Ω)

Or 4~20mA+HART

Double 4-20mA

Power Supply

12~36 Vdc

12~36 Vdc

8~36Vdc/15-36Vdc

10~30 Vdc

12~36 Vdc

Accuracy

≤ ±0.5%F.S; ≤ ±0.25%F.S

(Linearity Hysteresis

≤ ±0.1%F.S (Customized)

Repeatability)

Including non-lin., rep. and hys. Optional

Working/Storage Temp

-10℃~125℃ OR -60℃~200℃

Tempe Compensation

-10~60(standard); -20~60; -20~80(customized)

Safe Overload

200% F.S.(standard)

Burst Pressure

300% F.S. (standard)

Total Error Band

0...50 °C max. ±0.5 %FS;  -10...70 °C max. ±1.0 %FS

Medium compatible

Compatible with 316 Stainless Steel or 1Cr18Ni9Ti stainless steel

Zero Temp. Drift

0.03%FS/(≤100kPa),  0.02%FS/(>100kPa)

Body materials

316 stainless steel (standard); 1Cr18Ni9Ti stainless steel optional

Filling oil

Silicon oil (standard); Fluorocarbon oil (Oxygen Services)

Electronic connection

-DIN43650 Hirschman Connector, 4-poles and IP65.

-Plug: M12 (4-poles) Type IP67;

- Directly Outlet Cable Type IP68 optional.

Pressure

G1/4’’male, G1/2’’male, 1/8’’NPT male, 1/4’‘NPT male, 1/2’‘NPT male and female optional. (by customized)

connect port

Dimension

Length: 120 mm (standard); Body diameter: 27 mm (standard).  *special size by requested*



What is The Application of Pressure Transducer?



Critical industrial applications

Petroleum

Chemi-industry

Metallurgy

Power station

Hydrology, Agriculture





Our Services



OEM / ODM services

To meet the user diversified requirement, Holykell have established a set of customer service and technical support system with OEM / ODM order as the center, and responded and Handle the customer's requirements in a timely manner to ensure accurate delivery time and product quality.



MAINTENANCE & AFTER-SALES SERVICE

Customer Feedback:  Sales engineers and technical engineers will be one-on-one service for you to exclude all obstacles when use our sensors.

Warranty period: 18 months

Product life-long maintenance: Holykell can provide you with the maintenance of the whole life of the sensors



Company Information











FAQ

Q:Can you accept ODM & OEM service ?

A:We professional provide OEM &ODM service for pressure transducer.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.

Q: How can I get the quotation?

A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page. Or contact us directly at ( Sohpie, Email: sales11 (at) holykell.com / What's app: 86-13187184736)you will get the reply within 12hours, and the quotation will send to you according to your requirements.
