Holykell factory HPT611 Flange mounted type 0-10V 0-1bar raw petroleum oil pressure sensor petrol level sensor

FOB Reference Price:Get Latest Price
US $210-350 / Pieces | 1 Piece/Pieces raw petroleum oil pressure sensor petrol level sensor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
Holykell
Model Number:
HPT611, HPT607
Measurement Range:
0-2M, 0-5M, 0-25,...0-500 Meter
Accuracy:
0.5%F.S, 0.25%
Power Supply:
24VDC, 12-36V DC
Signal Output:
4-20mA, 0-5V, 0-10V, analog output signal
Measurable medium:
Sludge, slurry, waste
OEM & ODM service:
yes
Water Proof:
Direct cable & Water proof IP68
Material:
316 Stainless steel housing
Sensor name:
0-10V 0-1bar raw petroleum oil pressure sensor petrol level sensor
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Week raw petroleum oil pressure sensor petrol level sensor
Packaging & Delivery
Packaging Details
standard export package for HPT611 Flange mounted type 0-10V 0-1bar raw petroleum oil pressure sensor petrol level sensor
Port
shenzhen
Lead Time :
within 15 days



HPT611 Flange Mounted Type 0-10V 0-1bar Raw Petroleum Oil Pressure Sensor Petrol Level Sensor



Product Description



Characters:

♥ Accuracy: ≤±0.5%F.S.

♥ Wide working temperature scope

♥Advanced digital temperature compensation.

♥Excellent resistance against impact, overload,

Shock and erosion.

♥Highly-efficient lighting absorption

and strong RFI & EMI resistance

♥ Impact resistance and disturbance

♥ 1.5 times range standard overload.

♥ 3 times range burst pressure

♥ CE approving

Applications:

♥ Sewage level measuring and control

♥ Automatic testing system

♥ well level measurement and control

♥ Sea water level measurement and control

♥ Industrial course testing and control

♥ Laboratory equipment

♥ Oil and Fuel Tank level measuring

♥ Sewer water level and pressure monitor

♥ Saving water to irrigate

♥ Sewage pump station level measurement

♥ And so on







 Specifications

Product Name:

 HPT611 Flange mounted type 0-10V 0-1bar raw petroleum oil pressure sensor petrol level sensor

Over Load:

150% F.S.

Temp Compensation:

-10℃~60℃

Water Proof:

IP68

Pressure Type:

Gauge pressure Absolute pressure optional.

Output Signal:

4~20 mA   0~5V   0~10 V   0.5~4.5 V

Medium compatible:

Compatible with 316L Stainless Steel

Process Connect:

Φ40 mm Thread with Cover

Working Temp:

-20℃~85℃

Electrical Connection:

Fixed cable and water proof IP68

Pressure Range:

0-0.1 Bar…..50 Bar / 0-1M….....500M H2O Optional

Accuracy(Linearity Hysteresis

Repeatability):

≤ ±0.5%F.S

≤ ±0.2%F.S

≤ ±0.1%F.S

Including non-lin., rep. and hys.

Optional

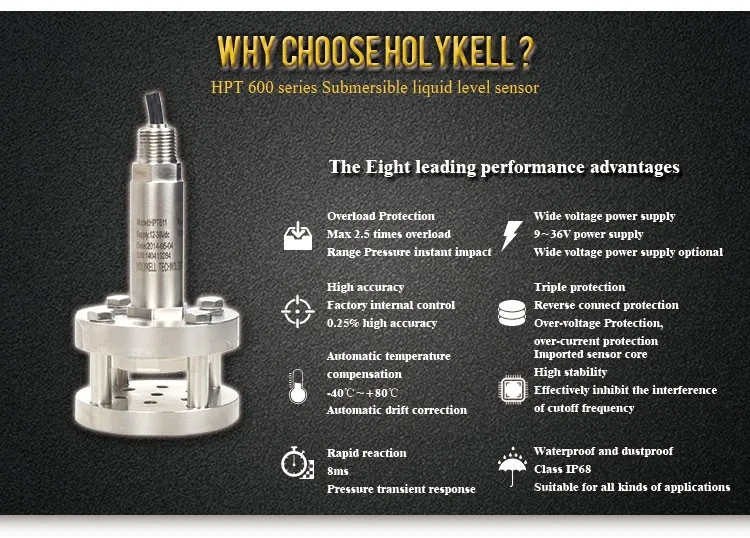

Why choose Holykell HPT611 liquid pressure level sensor?
1. 5-10 years design life, the lifelong maintenance; Import diffusion silicon core body, ≤1 ms response time;
Its service life is 2-3 times of similar products.
2. Adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;
Anti-interference is enhanced by 300%, the stability is over 10 years.

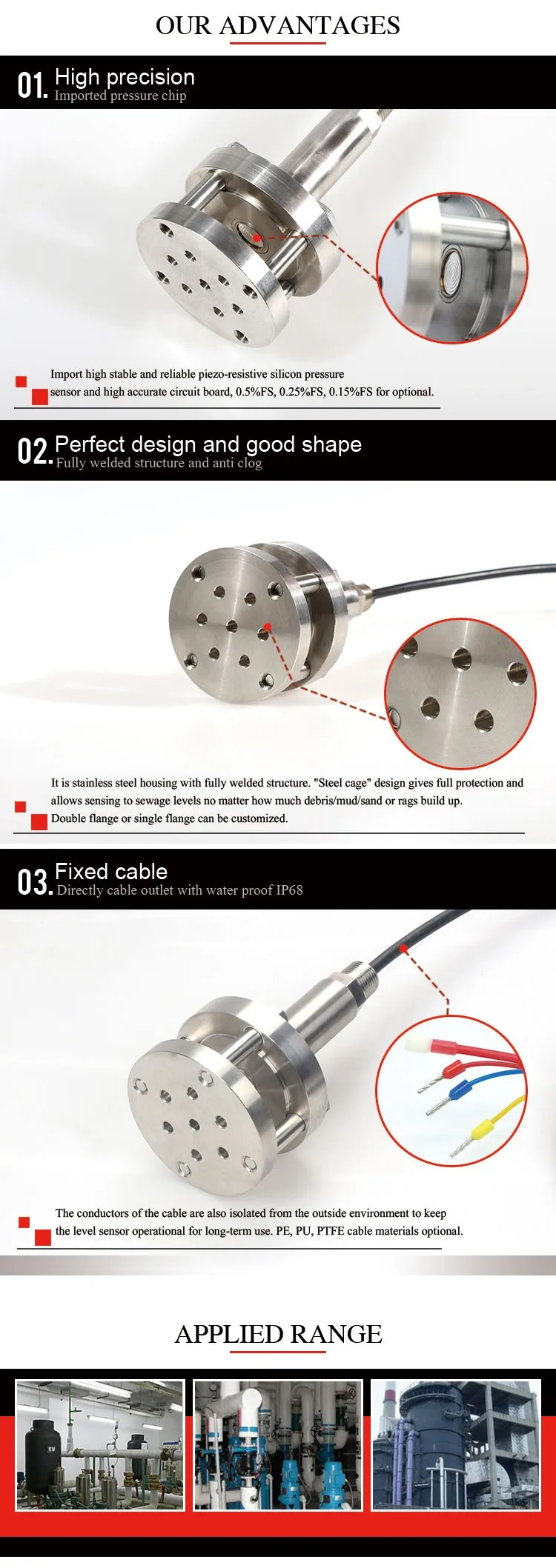

3. The unique design of 8 hole and The unique filter design, it Can effectively filter out impurities,
prevent blockage, prevent shock; Prevent plugging rate increases more than 80%.
4. Automatic temperature compensation, -40 ~ 85℃, autocorrection temperature drift.
5. Five layers of seamless and waterproof dustproof connection design, international level IP68;
12 mm waterproof and oil-proof cables, the service life is more than 10 years.








How is the process of HPT611 liquid pressure level sensor?
3 times testing in factory
5 times technology upgrade
300 tines polishing burnish
600 days long warranty times
2880 minutes high-low temperature ageing

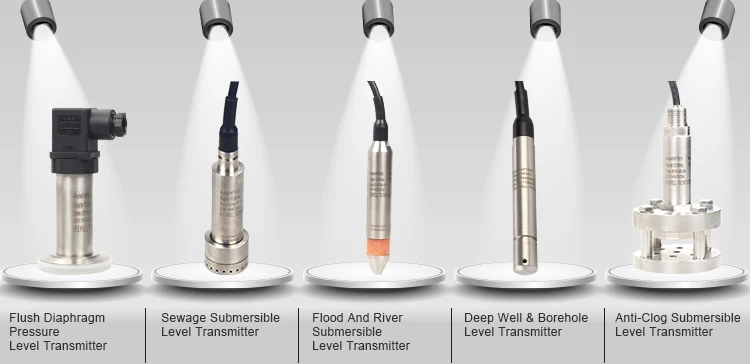

Holykell others liquid level sensor:

2









FAQ



1 Q:What detailed information do I need to provide if I want to place an order?
A:We need to know the following information: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.



2 Q:Do you have any discount?

A:Yes, if you buy large QTY, please send us a email, we will give you a big discount.



3 Q:What's the delivery time for HPT604?
A:According to the specification and quantity of your order, generally 7-10 days for normal
standard products within 50pcs.



4 Q:Do you have overseas distributor?
A:Yes,we have distributors in Israel,America,United Kingdom, Austrilia and so on.



5 Q:Can we use our logo on the products?
A:Yes.We can provide OEM and sign a licensing agreement.



6 Q:Are you manufacturer or trading company?
A:We are manufacturer with 15 years of experience.Welcome to visit our company.



7 Q:Do you have any certification?
A:Yes,according to the different products,overpass CE, RoHS, ISO, Ex,Ul etc,we can offer certificates.



8 Q:How the stability of products?
A:3~5 years is ok in normal situation.



9 Q:Do you have products with HART or RS485+temperature signals?
A:Yes.we have.



10 Q:What's the means of transport?
A:Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.



11.Who should I talk or send email to?
Welcome to call or email Ms. Jenny at any time, English and Chinese both okay.
