Holykell factory Low cost IOT System Analog water pipe 0-100bar pressure sensor pressure transducer

FOB Reference Price:Get Latest Price
US $45-85 / Pieces | 1 Piece/Pieces IOT system water pipe 0-100bar pressure sensor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
Holykell
Model Number:
HPT200
Pressure measurement:
-1-0-0.05bar..1000bar
Output signal:
4-20mA;0-5V;1-5V
Power Supply:
12-36 V DC
Water Proof:
IP65 to 68
Accuracy:
0.5%F.S
Medium compatible:
316L Stainless Steel
Name:
piezo pressure measuring instrument
Pressure Type:
Gauge, Absolute, Negative pressure
Certificate:
CE approving
Sensor name:
IOT System water pipe 0-100bar pressure sensor pressure transducer
SupplyAbility
SupplyAbility:
1000 Piece/Pieces per Month IOT system water pipe 0-100bar pressure sensor
Packaging & Delivery
Packaging Details
Standard box for IOT System Analog water pipe 0-100bar pressure sensor pressure transducer
Port
Shenzhen/Shanghai
Lead Time :
2-3 weeks after payment confirmed



Low Cost Analog Water SST/PVC Pipe 0-100bar Pressure Sensor Pressure Transducer



Accuracy: 0.5%FS, 0.25%FS



Product Description





About HPT200 pressure sensor:
The HPT200 series universal type pressure transmitter are use high quality imported Germany Brand piezo restive pressure cells with isolated stainless steel diaphragm . High reliable long time running, stable performance, Strong anti-interference ability . Widely used in various industrial automatic control environment ,involved in water conservancy and hydro-power ,intelligent building ,production control, petrochemical ,oil , electric power ,pipeline and many other industries.










Specification
Sensor

IOT System  Analog water pipe 0-100bar pressure sensor pressure transducer

Pressure Range:

-1 Bar-0-0.05 Bar.....1000 Bar  Optional

Pressure Type:

Gauge pressure; Absolute pressure; Negative pressure optional.

Overload:

150% F.S.

Burst Pressure

300% F.S.

Accuracy:

(Linearity Hysteresis

Repeatability)

 ±0.5%F.S;  ±0.25%F.S by customized.

Including non-lin., rep. and hys.

Optional

Long Stability:

Standard: 0.2%F.S±0.05%

Working Temp:

-20~85℃ or -30~150 by customized

Storage Temp:

-40~125

Temperature Compensation:

-10~65(standard); -20~70 (customized)

Medium compatible:

Compatible with 316L Stainless Steel or 1Cr18Ni9Ti stainless steel

Electronic Wire:

2 Wires

3 Wires

Output:

4~20mA

0~5V

1~5 V

Power Supply:

12~36 V DC

12~36 V DC

12~36Vdc

Zero Temp. Drift:

0.03%FS/(≤100kPa),  0.02%FS/(>100kPa)

FS Temp. Drift:

0.003%FS/(≤100kPa),  0.002%FS/(>100kPa)

Body materials:

304 stainless steel; 316L Stainless steel (standard); 1Cr18Ni9Ti stainless steel optional

Local display:

4 -1/2 bits LED local display

LED

Indicator

Specifications:

Dimension: 43*38*17.5 mm;  Non-linear: ±0.02%F.S.;  Display scope: -9999 to +9999

Sampling rate 10 times / sec.;  Working tem range: -30 to +80

Overload display ‘ERR’; Backlight suitable for dark environment application.

Electronic connection:

DIN Hirschman Terminal Box

4 Pins and IP65.

Cable length:

Cable or no By Customized.

Cable length standard with 2 meters.

Cable diameter about 6 mm

Pressure

connect port:

1/4’‘NPT male 1/2’‘NPT Female

G1/2’’; G1/4’’male optional. (By Customized)

Dimension:

Length: 183 mm (standard); Body diameter: 27 mm (standard).  *special size by requested*

Water Proof:

IP65

Response time:

10ms







200-h_03

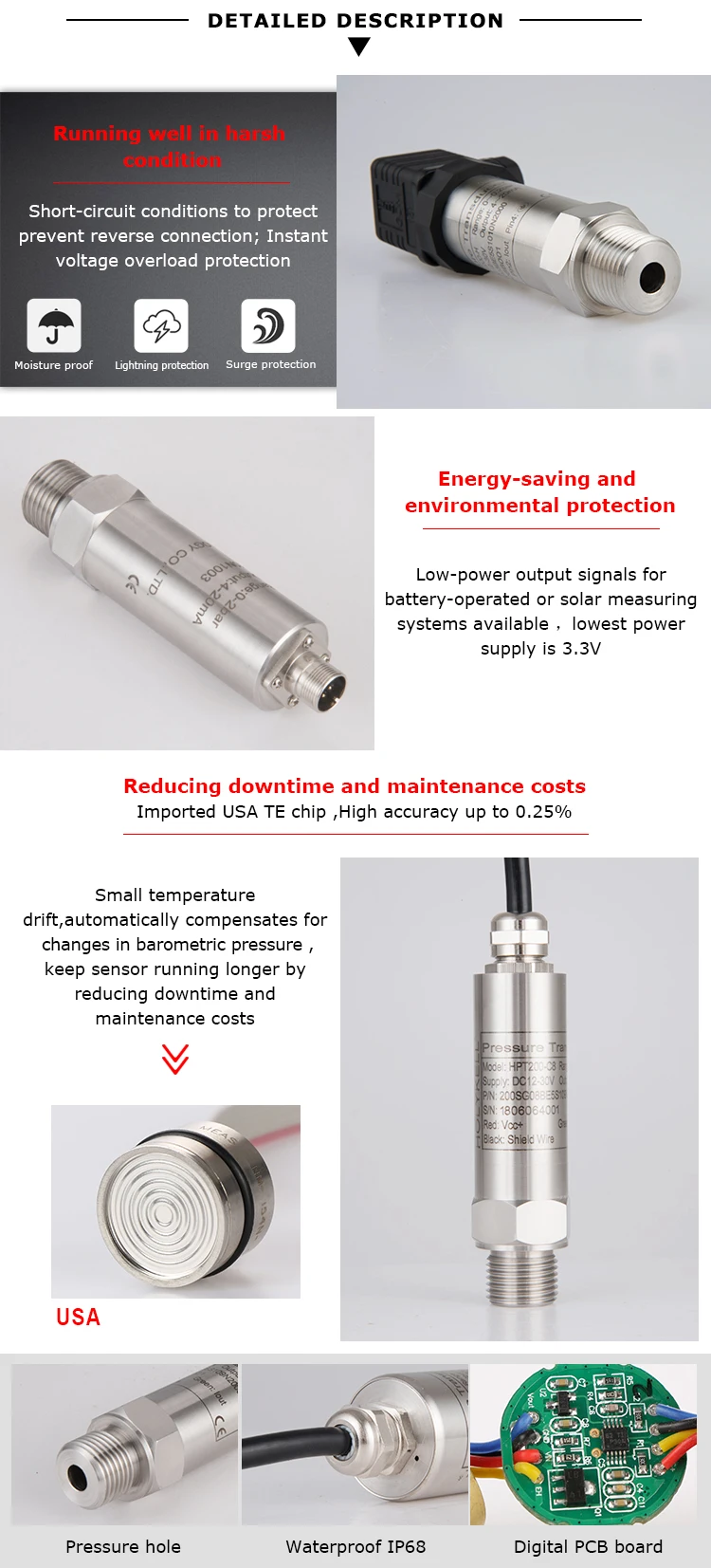

.Why choose Holykell HPT200  pressure sensor?
> Overloasd protection: Max 2.5 times overload rangepresure instant impact
> High accuracy: Factory internal control 0.25% high accuracy
> Automatic temperature compensation: -40~80 degree C automatic drift correction
> Rapid reaction: 8ms pressure trsnsient response
> Wide voltage power supply: 9-36V power supply, wide voltage power supply optional
> Triple protection. reverse connection protection, over-current protection,imported sensor core
> High stability, effectively inhibite the interference of cutoff frequency
> Waterproof and dustproof, IP68, suitable for all kinds of applications









200-h_07

How is the process of HPT200  pressure sensor?
3 times testing in factory
5 times technology upgrade
300 tines polishing burnish
600 days long warranty times
2880 minutes high-low temperature ageing









200-h_05

Our Services



1. Customized Product

Holykell Sensor provides OEM Pressure Sensors and Custom-Design services.

With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.

What's your requirement? Just contact us  Trademanager,cn1511529872 ,skype,magic130206 .

2. Quality Quarantee

3. Shipment & packing

Pressure sensors are generally shipped by International Express including UPS, FedEx, DHL and TNT as you required.  By plane or by ship is available, too. Please discuss details with our sales.

All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.

4. Contact us

We have an active and experienced sales team to serve you on technical question and business issue.

Just leave us message or click the Online Service for questions and enquiries.



Contact us :

Jenny

Moblie /Whatsapp : +86 13080556046

Mail/Skype:sales07 at holykell.com






Ordering guide:
In order to recommend you the most suitable sensor , please show us following necessary info according to your practical situation.
1.What is your medium ? Liquid or Gas, or other.
2.Working temperature ? -20°C~80°C or other
3.Pressure range ? 0~100Bar or other
4.Output signal? 4-20mA, 0-5V or other
5.Electronic connection ? DIN, 4PIN and direct cable leads available
6.Pressure port: G1/4, G1/2, 1/4NPT, 1/2NPT (by customized)

FAQ



1:How long will you give me the reply?

we will contact you in 2 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3:How about the quality of the magnets?
We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4:How is the price?
As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
