Holykell factory UE3006 low cost 2M water diesel fuel ultrasonic level sensor

FOB Reference Price:Get Latest Price
US $200-350 / Pieces | 1 Piece/Pieces Holykell UE3006 2M water diesel fuel ultrasonic level sensor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
HOLYKELL
Model Number:
UE3006 SERIES
Type:
Ultrasonic Level sensor U series
Certificats:
ISO & CE
Measuring Range::
0-1 m...5m/10m/15m/20m/30m/50m/70m Optional
Blind Zone::
20 cm to 60cm
Working Temp::
Sensor: -20°C~+80°C ; Meter: - -20°C~+60°C (Can be customized)
Temperature Compensation::
-20°C~60°C
Resolution::
3 mm
Certificate approving::
Exia IICT6
Water Proof::
Sensor: IP68; Meter: IP65
Weight::
Full Packing weight is about 6KG
Supply Ability
Supply Ability:
4000 Piece/Pieces per Month Holykell UE3006 2M water diesel fuel ultrasonic level sensor
Packaging & Delivery
Packaging Details
Standard export package. By carton box or composited board box.
Port
SHENZHEN / GUANGZHOU
Lead Time :
8~10 days.

UE3005_01.jpgHolykell Provide below service:

1. OEM is accept

2. 12-18 months warranty

3. long time product test, high quality guarantee

4. Any inquiry, welcome to contact Ms Jenny:

  Mail/Skpye: sales07(at)holykell.com    Cell/Whatsapp: +8613080556046





Holykell UE3006 Low Cost 2M Water Diesel Fuel Ultrasonic Level Sensor



Product Description









1. Profiles:



Ultrasonic Level Sensor with Indicator is a non-contact, high reliability, cost-effective, easy installation and maintenance of level measurement instruments. It does not have much contact with the media will be able to meet the requirements of level measurement, which was developed after years of efforts the company has a complete new generation of proprietary ultrasonic level meter.





2. Measuring principle:

Ultrasonic Level Sensor with Indicator emits ultrasonic pulses transmitted through the transmission medium to the measured body surface, the reflection and then return through the medium of sound propagation to the receiver transducer to measure the ultrasonic pulse from transmitter to receiver propagation in the medium of sound propagation time. Sound transmission medium according to the speed of sound, can be called from the transducer distance to the object plane to determine the material level.

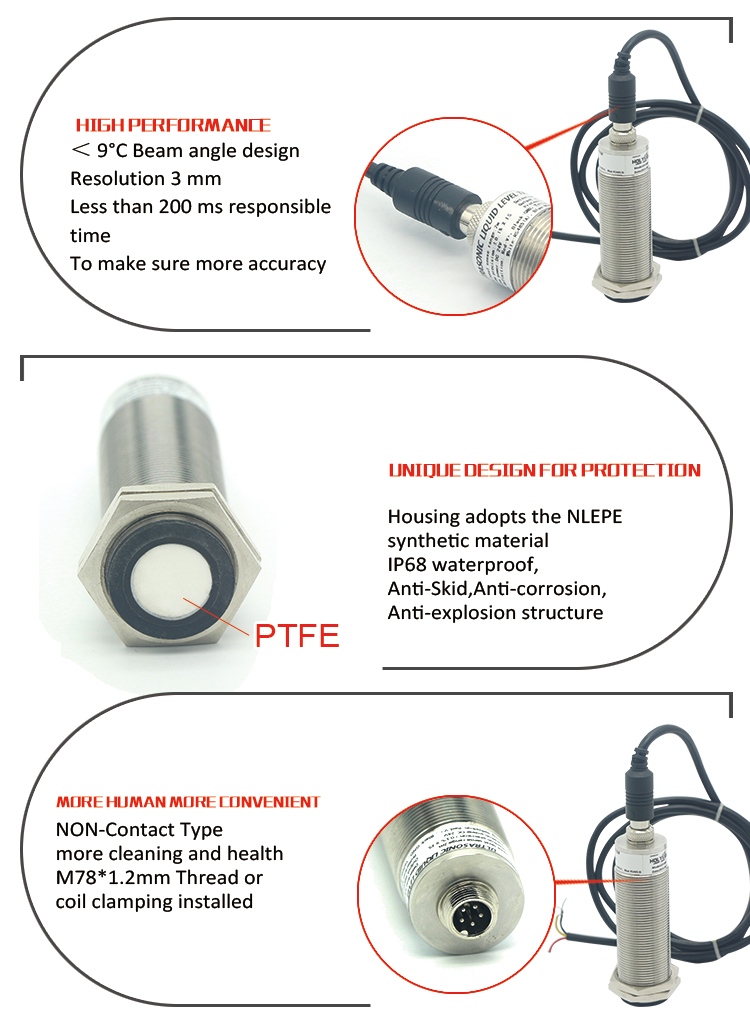

3. Features:

1) Exclusive use of the physical and sealed probe.

2) Unique probe design, the pressure to adapt to the environment 16 kg.

3) Advanced echo tracking algorithm

4) A variety of compensation mode.

5) Dot-matrix LCD, full English menu

6) Flexible measurement mode: Two Level and distance measurement mode, and it’s flexible to set the reference position, so that display is more intuitive.

7) Programmable relay output





4.Specification:

SensorHolykell UE3006 low cost 2M water diesel fuel ultrasonic level sensor
Level range0-2m
Blind Area<20cm
Accuracy 0.1%F.S. or 2mm (Max 1m Range); 0.25%F.S. or 3 mm
SupplyDC12-24V/50mA, power dissipation: <1.5W
OutputVoltage: 1 ~ 5V/ 0~5V/0~10V/1~10V
Current:4 ~ 20mA/ 0 ~ 20mA (loading big than 300 ohm)
Serial port:RS485 (Modbus)
PNP, NPN, Relay output optional (Max 2 channels)
Operating Temperature-20 ~ +60 degree C;
Relative humidity0~95%
Working pressureatmosphere pressure
Atmosphere pressureIP65 (default); IP68 (custom, another exercise price please)
InstallationG1-1/2’’ male or M30*1.5 male thread.
Wave beam Angle
Measuring modeH-Value-added measurement
E-D values; D-value measurement
E-H values.

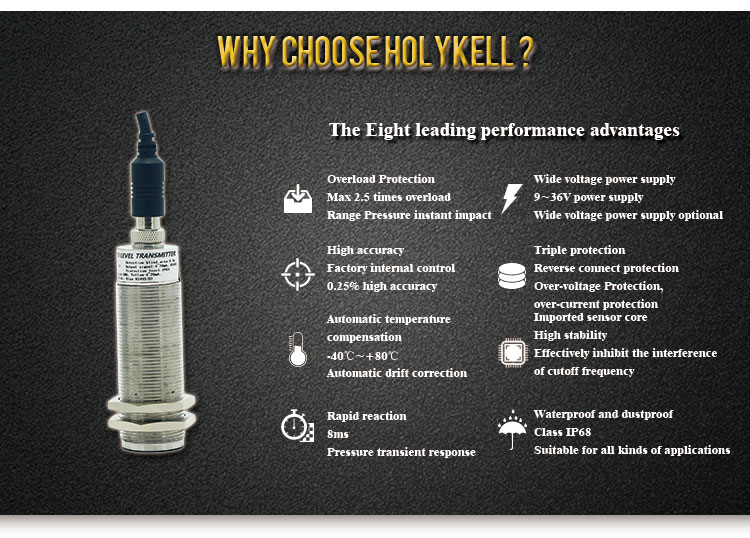

5.Why Choose Our water tank ultrasonic level sensor?

Ulltrasonic diesel level sensor are used in a wide variety of applications to detect the location of level in a process or storage vessel. These switches can be used in virtually any liquid. A complete offering of materials and mounting configurations are available to meet your application needs.

Features:

  • Not reliant on chemical properties of the liquid
  • No moving parts
  • Simple installation with no calibration necessary
  • Available in a wide variety of materials and process connections
  • Remote Self-test to verify operation of the electronics and sensor
  • Auto gain control, auto power control
  • over-voltage/over-current protection
