Holykell factory Level pressure sensor submersion in liquids water, oil and non aggressive chemicals pressure sensor

FOB Reference Price:Get Latest Price
US $65-150 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
HOLYKELL
Model Number:
HPT604
Output::
4-20mA, 0-5V, RS485 modbus, RS232
Housing material:
316 Stainless Steel
Level range:
1m,2m,3m,5m,10m,50m to max 500 meter
Power supply:
10V, 12-36V, 24vdc
Measurable medium:
water, diesel fuel oil, petrol etc,.
Electronic connection:
fixed cable & Water proof IP68
Design life:
5 years
Application:
fuel oil storgage tank, water well, borehole, water tank etc
Advantage:
explosion proof ATEX, ROHS, CE
Product name:
Level pressure sensor continuous submersion in liquids water, oil
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Level pressure sensor continuous submersion in liquids water, oil and non aggressive chemicals pressure sensor
Standard export carton 52*42*32+foam wrapped around, make sure package well intact when you receive.
Port
shenzhen, guangzhou
Lead Time :
2 weeks
HPT604 Sensor specs
Level pressure sensor continuous submersion in liquids water, oil and non aggressive chemicals pressure sensor



***Order Guide (offer basic specs for fast quote)***

1.What is your medium ?---Water/diesel or..?

2.Level range/Tank height?--- 2m,10m or other

3. Output signal? ---4-20mA, 0-5V, RS485 or other

4.Cable length for wiring?---3 meter or other



*About HPT604 Level Sensor

Level pressure sensor continuous submersion in liquids water, oil and non aggressive chemicals pressure sensor

HPT604 is a submersible level pressure sensor suitable for liquid level or pressure and depth measurement. It made of 316 SS housing. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage.Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The HPT604 Submersible Liquid Level Transmitter can be used to measure water level; well depth; groundwater level; bore well, underground water, river etc,.



Why Choose HOLYKELL HPT604 level pressure sensor?

1. 5-10 years design life, the lifelong maintenance, Import diffusion silicon core body, ≤1 ms response time, Its service life is 2-3 times of similar products.

2. Adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;

    Anti-interference is enhanced by 300%, the stability is over 10 yrs.

3. The unique design of 8 holes and The unique filter design, it can effectively filter out impurities,

    prevent blockage, prevent shock; Prevent plugging rate increases more than 80%.

4. Automatic temperature compensation, -30 to 85℃, autocorrection temperature drift.

5. 12 mm waterproof and oil-proof cables, the service life is more than 10 years.

    5 layers of seamless and waterproof IP68 dustproof connection design,

6. ATEX, RoHs, CE Certified, safe in explosive atmospheres
7. High accuracy and reliability 0.15%

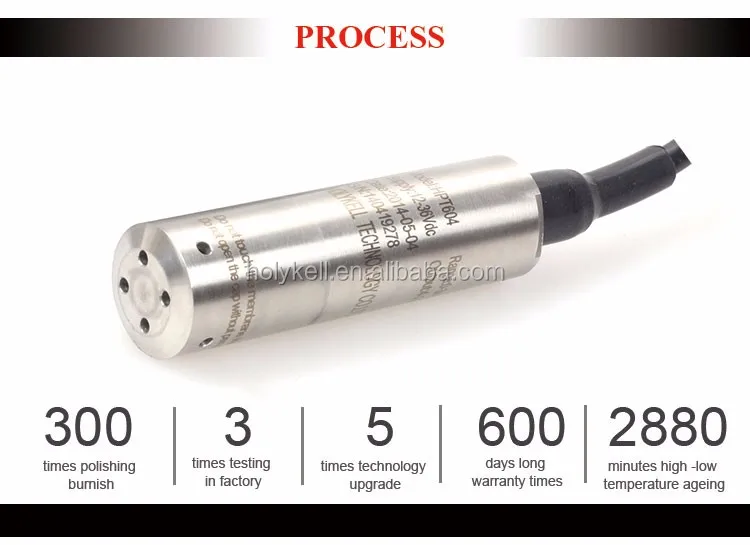

Product Pictures

Level pressure sensor continuous submersion in liquids water, oil and non aggressive chemicals pressure sensor

Basic Parameters of HPT604 Level Pressure Sensor

Measurable range

1M..100M...500 Meter/0-0.1Bar...50Bar optional

Application

a. Water tank, Fuel(diesel, gasoline, petrol etc,.)

b. tank level detect, measure and monitor.

c. Liquid level measuring in tank, boreholel, water wells, river

Signal output

4-20mA, 0-5V, RS485, RS232, 1-5V, 0-10V, 0.5-4.5V

RS485 + 4-20mA, 4-20mA + HART,

4-20 mA+ temperature output at your option.

Accuracy:

Better than 0.5%F.S, 0.25%F.S, 0.15%F.S

Mounting type

Submersible or screw thread

Working temp.

-30℃~70℃ OR -30℃~100℃(Customized)

Certificate

ATEX ExdIICT6, RoHs, CE

Electronic connection

Fixed cable water proof IP68





Level pressure sensor continuous submersion in liquids water, oil and non aggressive chemicals pressure sensor





Dimension and drawings

Level pressure sensor continuous submersion in liquids water, oil and non aggressive chemicals pressure sensor

Applications of HPT604 level Pressure sensor

Lift station monitoring
Tank liquid level
Landfill leachate monitoring
Construction by-pass pumping
Dewatering
Pump control
Slurry tank liquid level
Wastewater



How did clients comments on Holykell level sensor?

Level pressure sensor continuous submersion in liquids water, oil and non aggressive chemicals pressure sensor



Application fields of Holykell pressure sensor and level sensor

water level sensor application picture









FAQ

1. How long will you give me the reply?
we will reply you in 2 hours ASAP, within 10 hrs if night.


2. Could I get samples?---Yes sure.



3. What is your MOQ?---1 piece.

4. What Certification do you have.---ATEX, CE, ROHS, ISO


5.What is your main products?
Pressure sensor/ transmitter/transucer, level sensor, flow meter, paperless recorder etc,.

6. How about warranty time?----12~18 months

7. Who should I talk or send email to?
Welcome to call or email Ms. Anna Luo at any time, English and Chinese both okay.

Email: sales09 at holykell.com
Skype: anna.luo902
Mobile/Whatsapp:0086-18473365257

Trademanager: cn1515941072xmev

anna contact information pressure sensor and level sensor.jpg
