Holykell Factory Low Cost 0-5m Water Liquid Fuel Ultrasonic Level Sensor

FOB Reference Price:Get Latest Price
$69.00 - $168.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
Holykell
Model Number:
UE3008 water level sensor
Theory::
0-5m Liquid Ultrasonic Level Sensor
Maximum range:
5 meters
Single Output1::
1~5V/ 0~5V/0~10V
Single Output2::
4 ~ 20mA
Serial port::
RS485 (Modbus),NPN, Relay output optional (Max 3 channels)
Water proof::
IP65
Power supply:
DC12-24V, power dissipation: <1.5W
Certificate:
CE
Warranty::
One Year

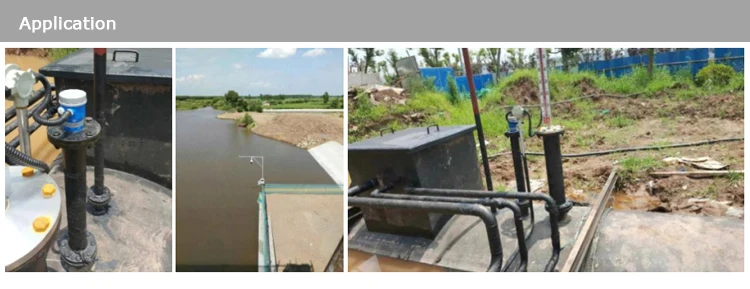

Application::
fuel tank, water tank
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standed carton packages
Port
Guangzhou/Shanghai, any port of China

Holykell Factory Low Cost 0-5m Water Liquid Fuel Ultrasonic Level Sensor



Product Description









             Low Cost 0-5m Water Liquid Fuel Ultrasonic Level Sensor



Specifications:

Measuring Range:0-3m, Blind Area: ≤60mm

Detection accuracy: 0.1%F.S. or 1mm.

Supply: DC12-24V, power dissipation: <1.5W

Output: 1. Voltage: 1 ~ 5V/ 0~5V/0~10V/1~10V

                 2.Current: 4 ~ 20mA/ 0 ~ 20mA (loading big than 300 ohm)

                 3.Serial port: RS485 (Modbus)

                 4.NPN, Relay output optional (Max 3 channels)

Operating Temperature: -20 ~ +60 °C

Relative humidity: 0~95%

Working pressure: atmosphere pressure

Protection class IP65 (default); IP68 (custom, another exercise price please)

Installation gong pattern install M48× 1.5

Wave beam Angle:

Net weight: 332g

Measuring mode:H-Value-added measurement:E-D values; D-value measurement:E-H values.

(According to user requirements, the factory Settings, as shown in the diagram)









Selection of parameters:



1) Media type to be measured (Liquid or solid, such as: Water, sewage, mud, gasoline, diesel oil, toluene, sulfur dioxide, ore, coal, cement, soybeans, wheat, corn, flour, etc.)



If it is liquid: Is there liquid steam, mist, foam, wave, stirring, floating objects;



If it is solid: Is there a dust, granular or powder media is.



2) The minimum ~ maximum temperature and pressure of media.



3) Corrosion of media. If it is placed inside the jar, the jar needs to know the material, and if there is corrosion of the lining.



4) The need for anti-corrosion, explosion-proof, to split or an integrated one?



5) Working environment: exposure to the pond, cover the pond, liquid tank, pot is through atmospheric pressure and so on.



6) Power Supply: 12 to 24VDC



7) Output: 4-20mA or RS485 or need to relay output?





Ordering Guide:



1. Ambient temprature. 0~60 degree?

2. Level range or tank depth: 1m or 2m?

3. Output signal: 4~20mA is ok ? or other?

4. QTY













Company Information

Company Information

 Holykell Technology Co. , Ltd is a high-tech company integrating R&D, production and distribution. The company has a purification plant of 5000m2, an annual output of 1 million production line of pressure sensor, transmitter and intelligent digital instrumentation.

Now the company has more than 120,000 customers worldwide, the products have been exported to Europe, America, Australia, Africa, southeast Asia, 109 countries.

Holykell can provide a cost effective solution for pressure monitoring for a variety of applications. Welcome to your inquiry.











FAQ

Q:Can you accept ODM & OEM service ?

A:We professional provide OEM &ODM service for pressure transducer.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.

Q. How can I get my sensors?/ What's the means of transport?

A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator

Q: How can I get the quotation?

A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page. Or contact us directly via Email:sales11(at)holykell.com / mobile/whatsapp: +86- 13187184736 you will get the reply within 12hours, and the quotation will send to you according to your requirements.
