Holykell factory 4wire 2mv/v 3mv/v 3.33mv/v strain gauge pressure transducer HPS300

FOB Reference Price:Get Latest Price
$125.00 - $265.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
HOLYKELL
Model Number:
HPS300
Measure Range:
2000bar 30000PSI
Material:
stainless steel housing
Type:
Strain gages
Output:
4-20mA/0-5V/2mV/V, 3mV/V
Application:
hydraulic oil, hydraulic system device
Waterproof:
IP65, IP67
Certificate:
ROSH CE
Advantage:
Works for high pressure, low cost, good quality
Name:
4 20mA High Pressure Transducer 2000bar 30000PSI
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
4wire 2mv/v 3mv/v 3.33mv/v strain gauge pressure transducer HPS300
Standard export packing
Port
Shenzhen

Holykell factory 4wire 2mv/v 3mv/v 3.33mv/v strain gauge pressure transducer HPS300

4wire 2mv/v 3mv/v 3.33mv/v strain gauge pressure transducer HPS300



HPS300 Introduction

HPS300 Series of pressure sensors feature high quality, high stability, small dimension, low weight, compact structure, low cost and mass production.

The products are widely used to measure pressure of hydraulic oil, auto engines, lift, gas and liquid pressure etc. Stainless steel housing is ideal for industrial environment. Pressure sensing elements are selected from well known international brands strain gage.

4wire pressure transducer

***Order Guide***

Please offer below information for fast pricing.

1. Pressure range?----1000bar, 1500bar or..?

2. Application/midium? ---- Hydraulic oil or..?

3. Pressure port thread?----G1/4" male, 1/2" NPT or..?

4. Output signal?----4-20mA, 3mV/V or..?

5. Require quantity?--- Sample to test or 100pcs..?



Basic Parameter

Model:

HPS300 pressure sensor, pressure transmitter transducers

Pressure Range:

0...10 Bar...1000bar...5,000Bar /750,000Psi G Optional.

Overload:

150%F.S

Burst Pressure:

300%F.S

Power Supply:

10 V DC or 5V DC

Output:

4-20mA, 0-5V, 2mV/V, 3mV/V, 3.3mV/V Optional.

Electronic Wire:

2wire, 3wire, 4 Wire

Pressure sensor Accuracy:

 ±0.25%F.S   ±0.5%F.S   Optional

Electronic connection:

M12 Connector; Twist Lock 4 Pin Connector (IP65); Directly Cable IP65 Optional.

Process connect port:

7/16’‘-20UNF male1/4’‘NPT male, 1/2’‘NPT male, G1/2’‘… (by customized)

Water Proof Grade:

IP65

Weight:

Net weight 0.2KG.

Cable length:

Standard 1 meters, special cable length by customized.

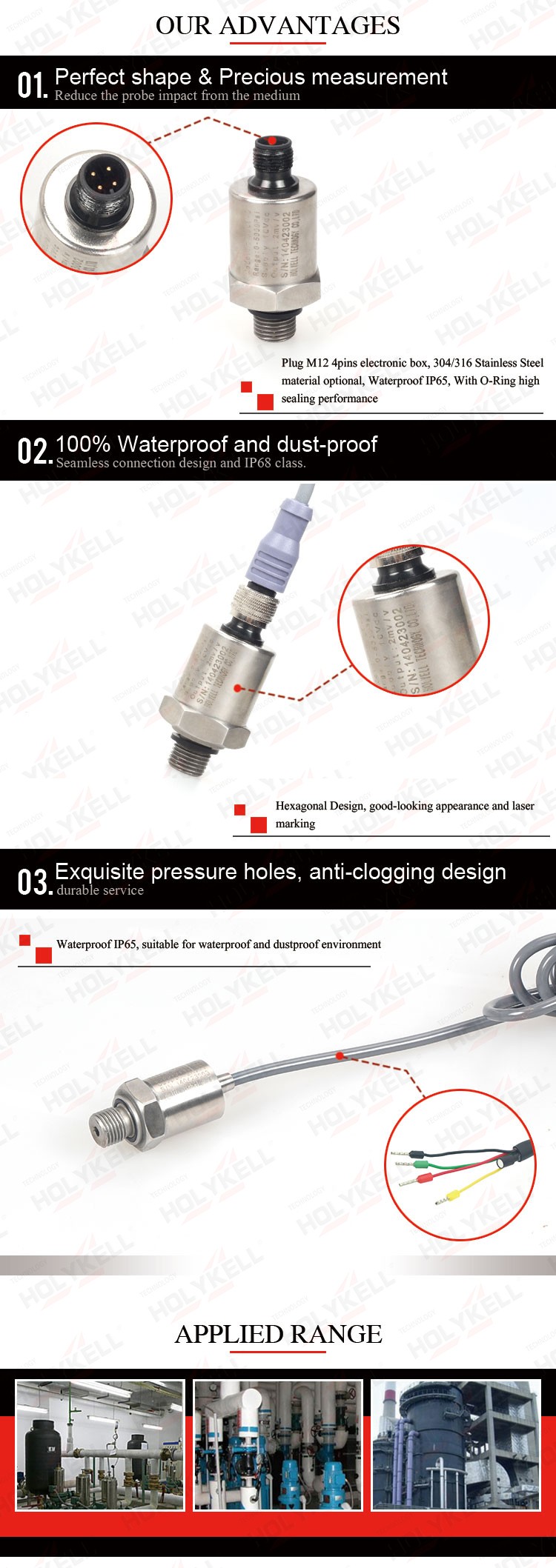

Detail of HOLYKELL HPS300 4 20mA High Pressure Transducer 2000bar 30000PSI

mv/v pressure transducer

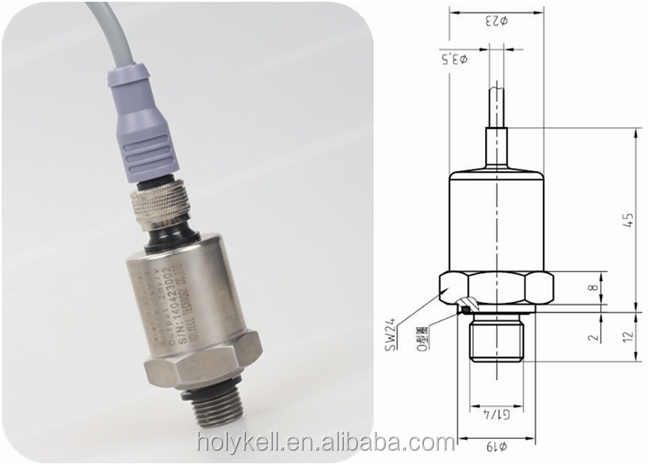

HPS300 pressure transmitter sensor dimension and drawing

2mv/v 3mv/v 3.33mv/v strain gauge pressure transducer





HOLYKELL Pressure Tansmitter Applications
Process control & automation
Pump & compressor control
Hydraulic systems, Pneumatic systems
Generator oil pressure measurement
Fuel pressure measurement
Refrigeration and Air Compressor

Water/ fuel oil pressure measurement
Liquid and Gas pressure measurement



Buyer Feedback on Holykell pressure transmitter and level sensor

4wire pressure transducer

Application fields of Holykell sensors

mv/v pressure transducer

FAQ

1. How long will you give me the reply?
we will reply you in 2 hours ASAP, within 10 hrs if night.


2. What's the measure range of the HPS300? 0-2bar to maximum 5000 bar.

3. What is your MOQ?---1 piece.

4. What Certification do you have.---ATEX explorsion-proof, CE, ROHS, ISO


5.What is your main products?
Pressure sensor/ transmitter/transucer, level sensor, flow meter, paperless recorder etc,.

6. How about warranty time?----12~18 months

7. Who should I talk or send email to?
Welcome to call or email Ms. Vicky Fu at any time, English and Chinese both okay.
Email: sales (at) holykell.com
Skype: vicky.fu4
Mobile/Whatsapp/Wechat:0086-13786166157





Product ID:4wire 2mv/v 3mv/v 3.33mv/v strain gauge pressure transducer HPS300
