oil field and slurry flush diaphragm HPT902 vacuum pressure transmitter usb hart modem

FOB Reference Price:Get Latest Price
$300.00 - $500.00 / Piece | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
HOLYKELL
Model Number:
HPT902, HPT902
Pressure Range:
-1bar-0-1...1000bar Dynamic pressure
Working Temp:
-30°C~100°C or -40°C~125°C (customized)
Output::
4-20mA, 0-5V,1-5V
Medium compatible:
316L stainless steel
Electronic connection:
DIN Hirschman Terminal, fixed cable and water proof IP67
Process connection:
1/4 NPT,1/2" NPT, G1/2, G1/4
Power supply:
24V dc, 12-36V dc
Frequency range:
0~1KHz~3KHz..200KHz
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
standard export packing
Port
Hunan

oilfield and slurry flush diaphragm HPT902 vacuum pressure transmitter usb hart modem

 2017 Hot sale HPT902 oilfield and slurry flush diaphragm pressure transmitter

Product Description



Profiles of HPT902

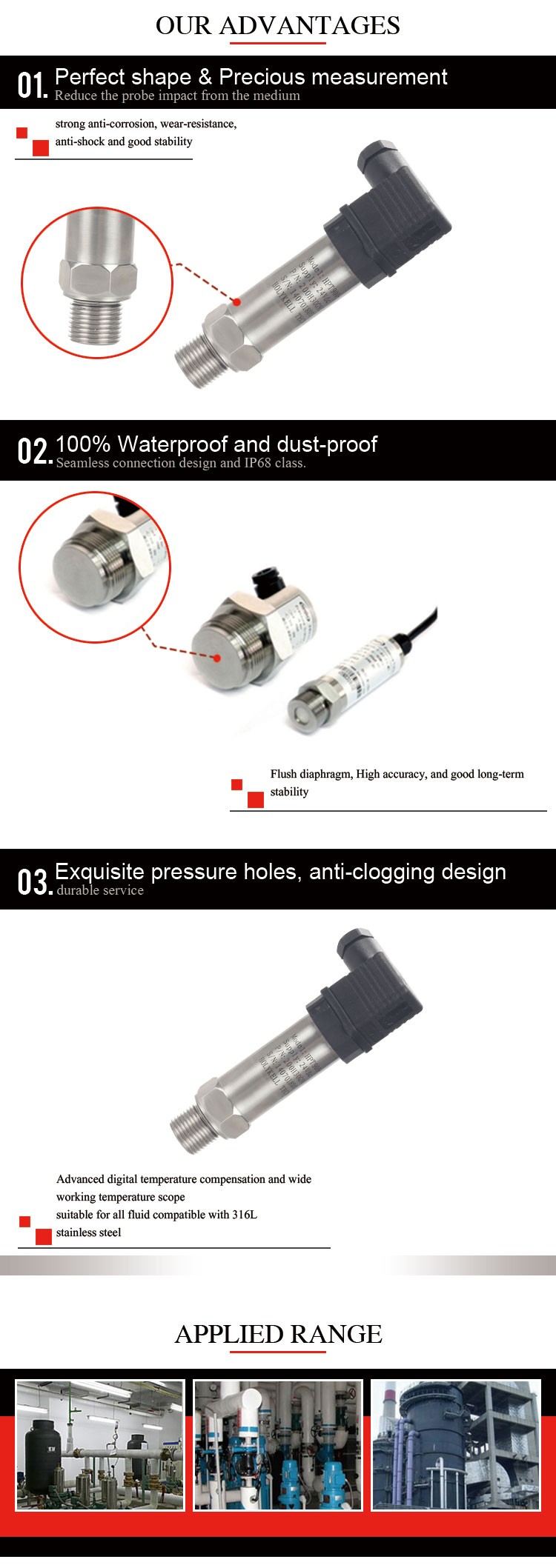

HPT902 series special Pressure transducer for oilfield and mining well is specially designed and manufactured for very bad environment such as clogging pressure-guided hole due to slurry as well as strong vibration in oilfield drilling and well measuring. HPT902-A transducer takes European advanced splashing thin/ thick membrane ceramic pressure sensor as sensitive element and is integrated with electronic circuit. This type of pressure transducer is of fully stainless steel cylindrical structure, with easy operation. It is specially used for such viscous, easily clogging, strongly vibrating industrial site as well measuring in oilfield, pharmaceutical, textile etc. There is also an economic selection for HPT902-B, which is takes Germany advanced Diffusion of silicon chips for production and quality is stability and have a long time pressure cycles over 108. HPT902-B widely uses on the field of medical, food, irrigation, water conservancy and level measurement.

pressure transmitter

Technical details





Model:

Parameter:

HPT902-A/HPT902-B

Pressure Range:

-100kPa-0-+100kPa.....2200Bar Optional

Pressure Type:

Gauge pressure

Overload:

200%F.S. (where 1.1 times of full-scale pressure for the 1000Bar products)

Burst Pressure

400% F.S.

Accuracy:

(Linearity Hysteresis

Repeatability)

≤ ±0.5%F.S

≤ ±0.2%F.S

≤ ±0.15%F.S

Including non-lin., rep. and hys.

Optional

Long Stability:

Standard: 0.2%F.S±0.05%

Working Temp:

-30°C~100°C or -40°C~125°C (customized)

Storage Temp:

-40°C~100°C

Temperature Compensation:

-20°C~80°C

Medium:

compatible with 316L stainless steel

Electronic Wire:

2~4 Wires according output signal (with Shield layer)

Output:

4~20mA; 1~5V DC; 0~5V DC; 0~10V DC optional.

Power Supply:

10~32V DC (generally 24V DC)

Temperature performance

Zero point temperature coefficient: 0.02%FS/°C

Sensitivity temperature coefficient: 0.02%FS/°C

Thermal lagging:

±0.1%F.S (typical)

Anti-Vibration:

±0.01%F.S (X,Y,Z axis 200Hz/g)

Response time:

≤1 ms

Load resistance:

≤(U-6.5)/0.02Ω

Insulation resistance:

100MΩ, 500V DC

Mechanical life:

5,000,000 pressure cycles

Enclosure protection degree:

Plug type (IP65), Cable type (IP67), Submergible type (IP68)

Pressure mounting port:

G1/2’’ male, G1’’ male, M20*1.5 male, M30*1.5 male optional

Explore proof:

ExiaIICT6

Material of housing:

304, 316 Stainless Steel

Weight:

Approx. 500g

OEM&ODM are available, just contact Ms. Ting Lee to send your detailed requirements.

FAQ



1. How long will you give me the reply?
we will reply you in 2 hours ASAP, within 10 hrs if night.

2. What's the max pressure range of HPT902?---0-1000 bar

3. HPT902 is for static pressure or dynamic measurement?---For dynamic pressure

4. What Certification do you have.---ATEX explorsion-proof, CE, ROHS, ISO

5.What is your main products?
Pressure sensor/ transmitter/transucer, level sensor, flow meter, paperless recorder,

6. How about warranty time?----12~18 months

7. Who should I talk or send email to?
Welcome to call or email at any time, English and Chinese both okay.
