Hydrogen Co2 gas flowmeter ,air flow meter insertion vortex flowmeter

FOB Reference Price:Get Latest Price
$500.00 - $899.00 / Unit | 1 Unit/Units (Min. Order)
Material:
stainless steel
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
HOLYKELL
Model Number:
HYB100
Application:
Hydrogen Co2 gas air flow measuring
Type:
vortex flow meter
Installation type:
Pipe type or Inserted type
Output pulse::
4 ~ 20mA
Medium:
gas steam Hydrogen Co2 air flowmeters
Accuracy of liquid::
± 1.0% gas, steam: ± 1.0% FS ± 1.5% FS
Measuring range:
gas 7~55m/s ;Liquid 0.7~55m/s
Rated pressure:
ANSI Class 150,Class 300 ,Class 600
Fluid temperature:
-40 ~200 Centigrade degree
Explosion levels:
Ex d II CT1 ~ T6
Supply Ability
Supply Ability:
5000 Unit/Units per Month
Packaging & Delivery
Packaging Details
color box
Port
Shenzhen

Hydrogen Co2 gas flowmeter ,air flow meter insertion vortex flowmeter





gas flowmeter



Product Introduction:



Hydrogen Co2 gas flowmeter ,air flow meter insertion vortex flowmeter is a kind of stress type vortex flowmeter based on the karman vortex principle to measure flow and has the advantage of high signal-to-noise ratio, high sensitivity, good zero stability. Signal processing circuit adopts microcomputer technology and packages the CPU unit, storage unit, display unit, communication unit and other function modules in the circuit board, at the same time, there are RS - 485 interface, Hart protocol, ModBus protocol for chosen. Diameter ranges of DN15~DN300, widely applied in measuring volume flow and mass flow of superheated steam, saturated steam, compressed air, general Hydrogen Co2 gas flowmeter ,air flow meter insertion vortex flowmeter



 Where to Use Vortex Flow Meters

  • Measurement of steam - saturated steam in power plants and chemical facilities.
  • Gas flow measurement – natural gas, ammonia, nitrogen, carbon dioxide, methane, methane chloride.
  • Demineralized and pure water in biotech, semiconductor, and pharmaceutical.
  • Air flow measurement – dust control and compressed air consumption.
  • Oil and crude methanol up to 100 centipoises.
  •  HVAC
  • Food processing

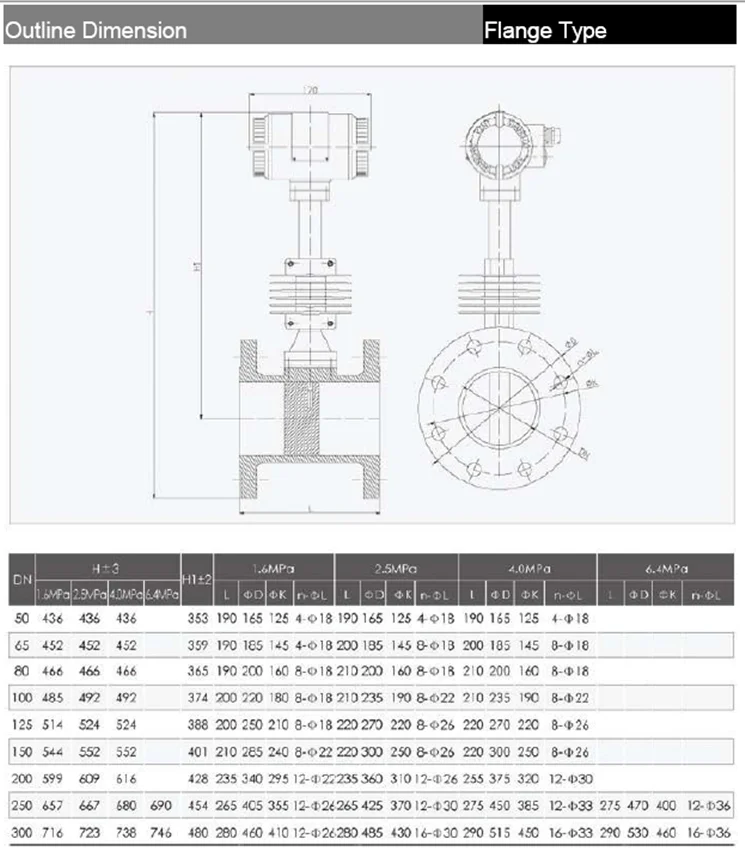

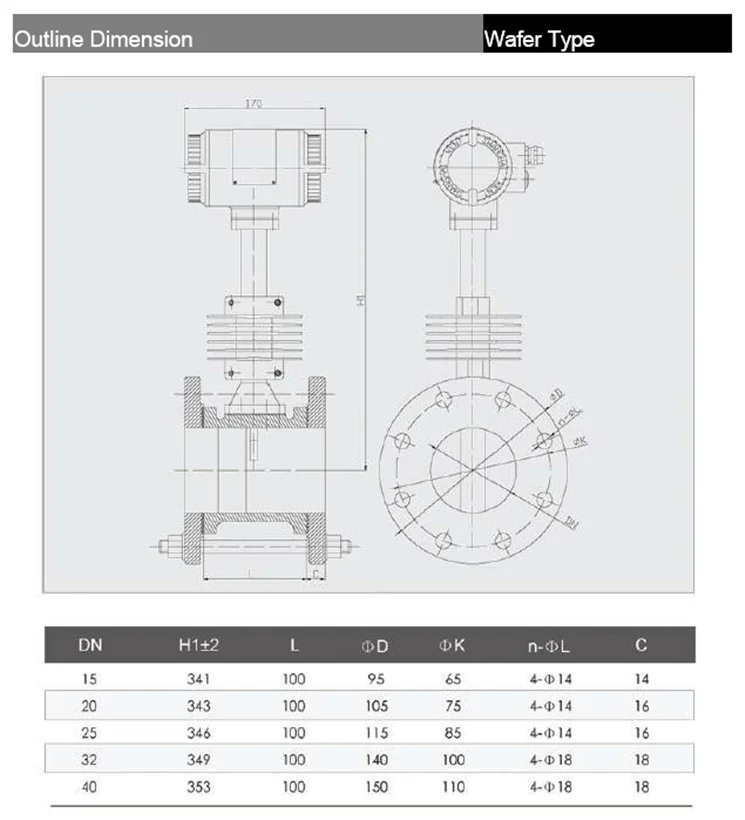

Technical Specifications of Vortex Flow Meter:



vortex flowmeter

air flow meter

gas flowmeter



Factories and calibration for gas flow meter:

vortex flowmeter



air flow metergas flowmetervortex flowmeterair flow meter







Certification



                                        gas flowmeter

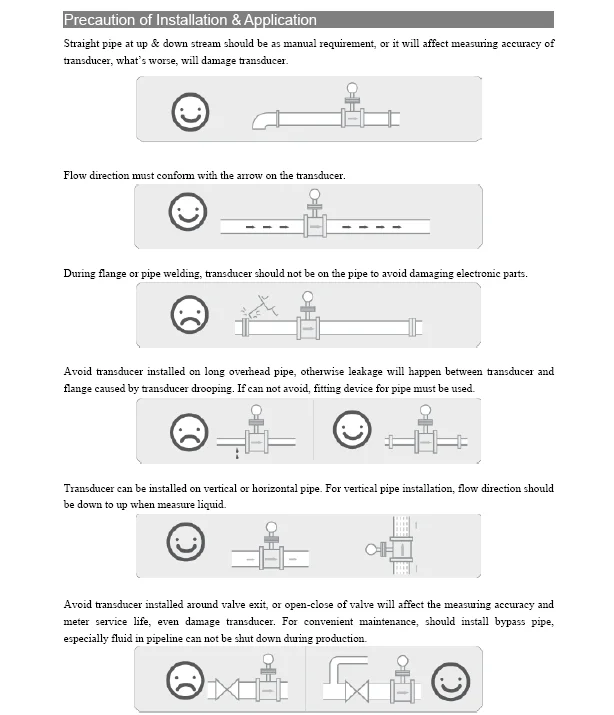

Installation method:

vortex flowmeter

Wiring Method for flow meter:

air flow meter
gas flowmeter
