Quick Details

  • Place of Origin: Hunan, China (Mainland)
  • Brand Name: Holykell-diesel measuring instrument
  • Model Number: HPT604
  • Type: Submersible type diesel fuel tank level sensor
  • Level range: 1M, 2M, 3M ,4M 5M fuel level sensor
  • Signal Output: 0.5-4.5V diesel fuel tank level sensor
  • Power supply: 5VDC
  • Temperature Compensation: -10℃~65℃
  • Working Temp: -20℃~80℃
  • OEM & ODM service: Yes, fuel or diesel level sensor customized
  • Material: 316 SST antiexplosion
  • Certificate approving: Exia IICT6 and CE Certificate ,ATEX
  • Warranty: One year

Packaging & Delivery

Packaging Details Standard Holykell Box A B C D E F
Supply Oil Diesel Fuel Measuring Instrument,RS485 4-20mA Diesel Fuel Tank Level Sensor
Delivery Time Shipped in 7 days after payment

Supply Oil Diesel Fuel Measuring Instrument, 4-20Ma RS485  Diesel Fuel Tank Level Sensor



                                                                    Model:HPT604

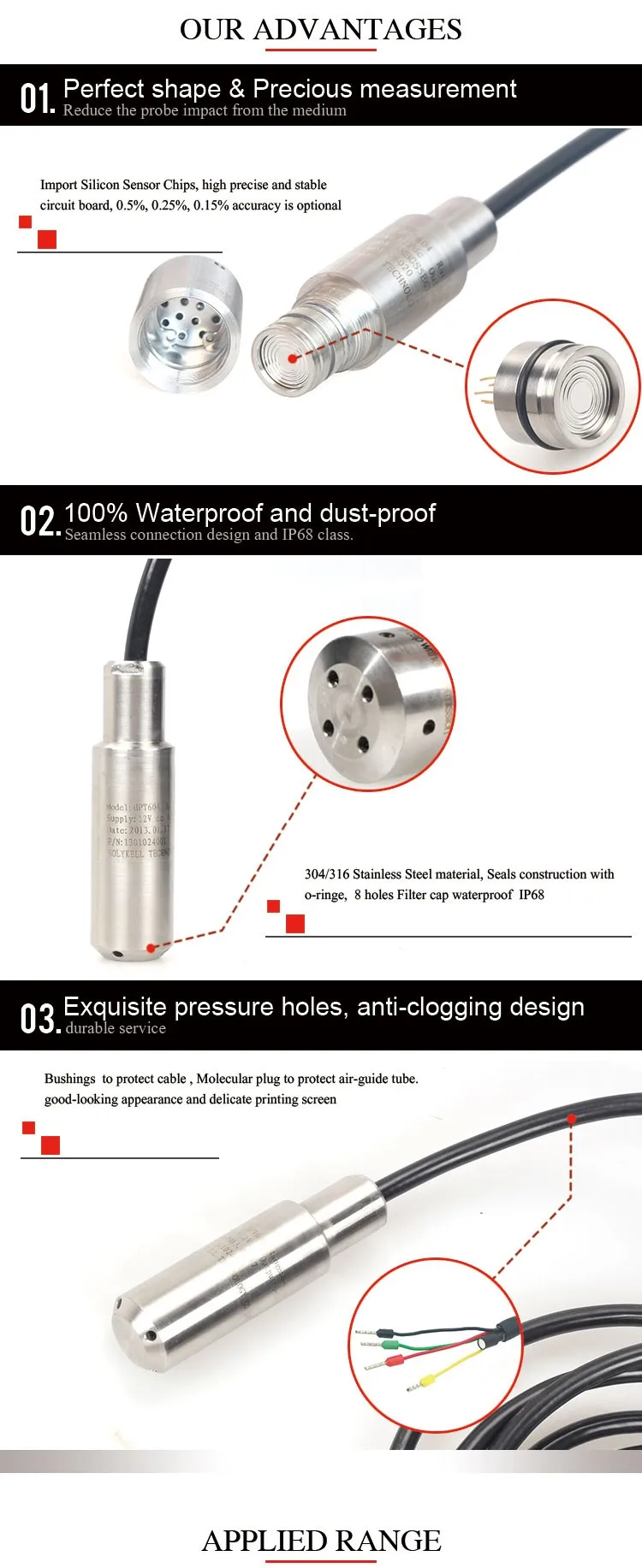

Holykell Supply Oil Diesel Fuel Measuring Instrument,RS485 4-20Ma Diesel Fuel Tank Level Sensor .HPT604 made by building in high stable and reliable OEM piezo-resistive pressure sensor and high accurate circuit board into the stainless steel housing. Integrated construction and standard signal provide the user easy and convenient application in the local working place. The special cable connects with housing, can be immerged into the media for a long time.

For high temperature level application (up to 100 degree C), which is customized transmitters and manufacture with Germany sputtered film chips sensor, so the stability and quality very good.



♦High accuracy(0.15%F.S) and reliability

♦ Compact, rugged design for easy installation

♦ Minimal maintenance and care

♦ Water level sensor compatible with most monitoring equipment

♦ Vented cable for automatic barometric compensation

♦ Multiple level ranges available

♦ Wet-wet water level sensor eliminates vent tube concerns

♦ Submersible pressure transducer not affected by foam, wind, or rain

♦ Certificate: CE , ISO9001:2000, Explore proof designed



*Application



a. Water tank level measurement and control.

b. Diesel Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

c. Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

d. Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

*Specifications for submersible liquid level transmitter

Model:

Parameter:

HPT604 Submersible liquid level transmitter

Pressure Range:

0-0.1 Bar...20 Bar / 0-1M...200M water Optional

Accuracy:

≤ ±0.5%F.S (standard)     ≤ ±0.25%F.S      ≤ ±0.1%F.S

Working Temp:

-20℃~80℃

Storage Temp:

-30℃~80℃

Temperature Compensation:

-10℃~65℃

Output:

RS485

(4 wires)

RS232

(4 wires)

Double output

(Model:HPT604D)

Power Supply:

10~ 36 V DC

10~ 30 V DC

      12~ 30 V DC

Electronic connection:

Fixed cable and water proof IP68

Pressure Type:

Gauge pressure or sealed gauge pressure, absolute pressure optional

Certificate approving:

Exia IICT6 and CE Certificate.

Water Proof:

IP68

Output can be customized:

4-20mA, 0-5V, RS485, RS232, 1-5V, 0-10V, 0.5-4.5V

RS485 + 4-20mA, 4-20mA + HART,

4-20 mA+ temperature output at your option.





HPT604 Sensor specs

HPT604 submersible interface level transmitter Dimensions



*Choose Part number for us get you best price



Applications of HPT604 level/ Pressure sensor
Lift station monitoring
Tank liquid level
Landfill leachate monitoring
Construction by-pass pumping
Dewatering
Pump control
Slurry tank liquid level
Wastewater

FAQ

Buyer Feedback on Holykell pressure transmitter and level sensor

Application fields of Holykell products

Applications

Level Sensor Installation Diagram



Production and Certificates



FAQ

1. How long will you give me the reply?
we will reply you in 2 hours ASAP, within 10 hrs if night.


2. Could I get samples?---Yes sure.

3. What is your MOQ?---1 piece for sample

4. What Certification do you have.---ATEX explorsion-proof, CE, ROHS, ISO


5.What is your main products?
Pressure sensor/ transmitter/transucer, level sensor, flow meter, paperless recorder etc,.

6. How about warranty time?----18~24 months

7. Who should I talk or send email to?
Welcome to call or email  at any time, English and Chinese both okay.
