Quick Details

  • Place of Origin: Hunan, China (Mainland)
  • Brand Name: Holykell
  • Model Number: HPT602 Flush Diaphragm Pressure Transducers
  • Name: Flush Diaphragm Pressure Transducers
  • For level measurement: 0-1 mH2O...500 mH2O
  • For pressure measurement: -1 Bar-0-1 Bar...600 Bar
  • Output signal: 4~20mA ; 0~5V; 1~5 V; RS485 Modbus RTU
  • Power Supply: 12~36 V DC
  • Accuracy: 0.5%F.S
  • Medium compatible: 316L Stainless Steel
  • Water Proof: IP65 to IP68
  • Pressure Type: Gauge pressure; Absolute pressure
  • Certificate: CE approving

Packaging & Delivery

Packaging Details Export carton package with bubble bag for protection

Milk/food industry 4-20mA flat pressure sensor

Product Description





Characters:

  • Accuracy: ≤±0.5%F.S.
  • Wide working temperature scope
  •  Advanced digital temperature compensation.
  • Excellent resistance against impact, overload,
    Shock and erosion.
  • Highly-efficient lighting absorption
  • and strong RFI & EMI resistance Impact resistance
    and disturbance
  • 1.5 times range standard overload.
  • 3 times range burst pressure
  • CE approving

Applications:

  • Industrial course testing and control
  • Automatic testing system
  • well level measurement and control
  • Sea water level measurement and control
  • Tank pressure and level measurement
  • Laboratory equipment
  • Oil and Fuel Tank level measuring
  • Automatic detection system
  • Saving water to irrigate
  • Sanitary field of food and drink
  • and so on



Profiles:

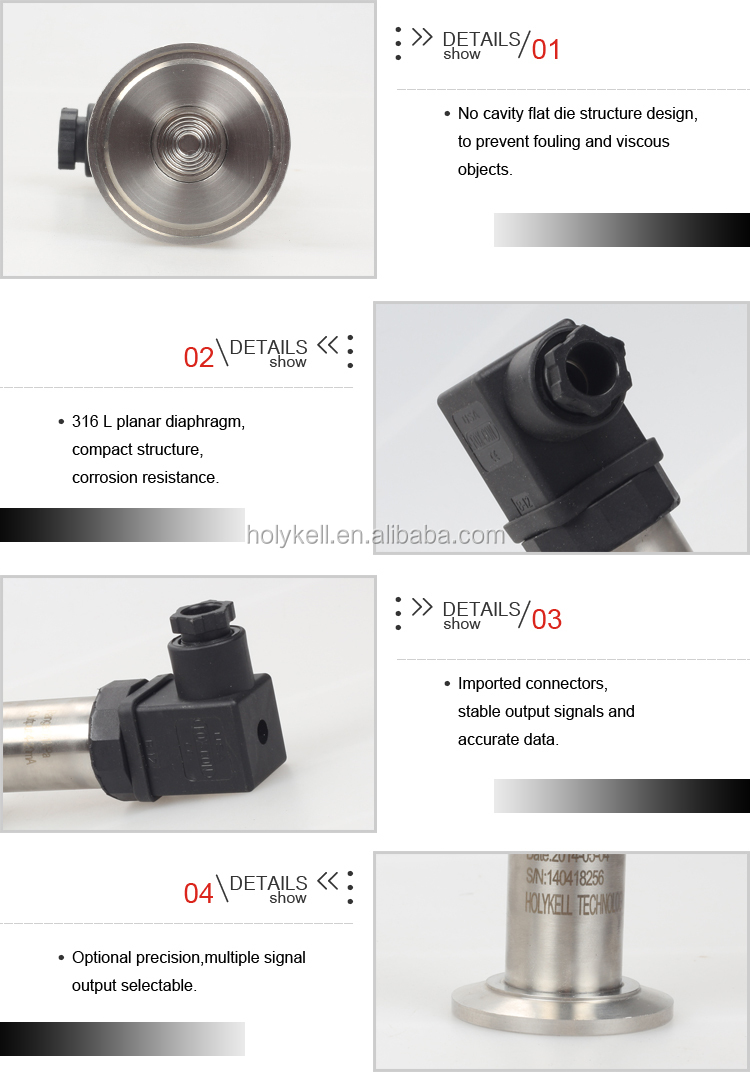

HPT601/602 is sanitary flush diaphragm type pressure and level transmitters. It is made by building in high stable and reliable piezo-resistive silicon pressure sensor and high accurate circuit board into the stainless steel housing. Integrated construction and standard signal provide the user easy and convenient application in the local working place. The special cable connects with housing, can be immerged into the media for a long time.

HPT601/602 pressure and level transmitter is flush diaphragm and process connection by thread and Clamp, which is outside install type level sensor, electronic connect parts by terminal box IP65, This model application in the field of water tank, Fuel tank, building& office water level measurement, city water supply, irrigation, food and sanitation, water factory, refinery, metallurgy, glass factory, swage dispose center, water supply, reservoir, river, sea…





Specification



Model:

Parameter:

HPT601/602  Flush Diaphragm Pressure Transducers

Characteristic:

Various configurations

Corrosive proof, dew proof and leakage proof function

Full closed circuit

High accuracy and well stability

Technology

parameter:

Electric connection: antiseptic Cable or by order.

Cable materials are optional according request, we offer 3 type special cable as follow:

PE Cable(Water Proof); PUR Cable(Oil Proof); PTFE Cable(Anti-Corrosive).

Pressure Range:

-1 Bar-0-1 Bar.....600 Bar (for pressure measurement)

0-1 mH2O........500 mH2O Optional (for level measurement)

Overload:

150% F.S.

Burst Pressure

300% F.S.

Accuracy:

(Linearity Hysteresis

Repeatability)

≤ ±0.5%F.S

≤ ±0.25%F.S

≤ ±0.1%F.S (high cost type!)

Including non-lin., rep. and hys. Optional

Long Stability:

Standard: 0.1%F.S±0.05%

Working Temp:

-30~85 (Non-Cooling Device)-30~150 ( With Cooling Device)

Storage Temp:

-40~120

Temp Compensation:

-10~70

Medium compatible:

Compatible with 316L Stainless Steel

Electronic Wire:

2 Wire

3 Wire

4 Wires

Output:

4~20mA

0~5V1~5 V

0.5~4.5 V

0~10V

RS485 Modbus RTU

Power Supply:

12~36 V DC

12~36 V DC

5 V DC

15~36 V DC

10-30Vdc

Insulate resistance:

>100M Ω  @50V

Zero Temp. Drift:

0.03%FS/(≤100kPa),  0.02%FS/(>100kPa)

FS Temp. Drift:

0.03%FS/(≤100kPa),  0.02%FS/(>100kPa)

Electronic connection:

DIN 43650 Hirschman Terminal Box;

Fixed cable and water proof IP68 optional.

Process Connect:

G1/2’’, G1’’, M20*1.5, M24*1.5; Φ50 flange or by order.

Response time:

≤10ms

Pressure Type:

Gauge pressure; Absolute pressure optional.

Certificate approving:

Exia IICT5 and CE Certificate.

EMC Standard:

electromagnetic radiation:EN50081-1/-2

electromagnetic susceptibility:EN50082-2

Water Proof:

IP65 to IP68

Weight:

Net weight is about 0.35KG, Full Packing weight is about 0.5KG (Not Include Cable)

Remarks:

Special applications request by order
