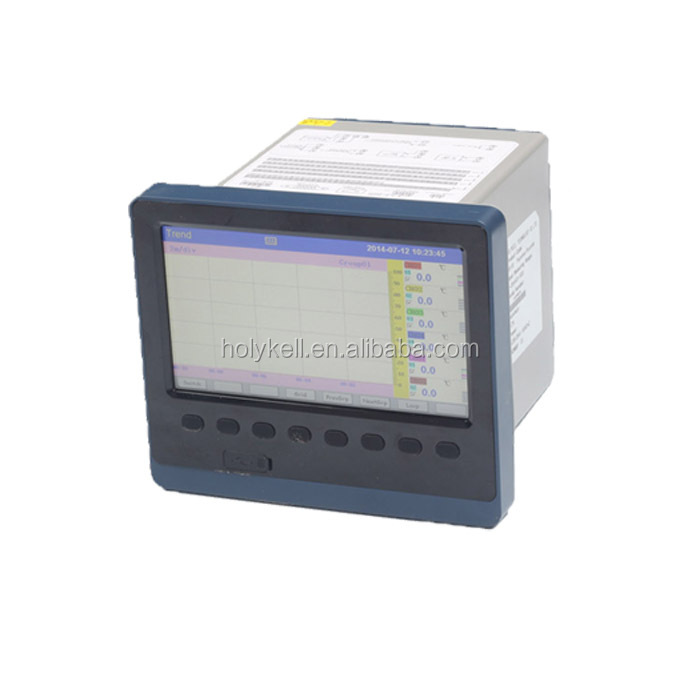

Temperature Pressure Data Paperless Recorder

FOB Reference Price:Get Latest Price
US $200-725 / Unit | 1 Unit/Units LED Data Logger, RTD Temperaure, Pressure Data Recorder Max 48 (Min. Order)
Supply Ability:
8000 Unit/Units per Month pressure data recorder
Port:
Shenzhen, Guangzhou, any China port
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
HOLYKELL
Model Number:
H8000 DATA LOGGER
Usage:
Industrial, Industrial
Theory:
Thermocouple Thermometer
Accuracy:
0.2
Temperature range:
50~300C
Name:
LED Data Logger, RTD Temperaure, Pressure Data Recorder Max 48
Power supply:
AC 100 ~ 240V, (50/60HZ); DC 20 ~ 29V
Frame:
Standard snap-on
Display:
LED
Communication:
Standard MODBUS communication protocol
Input signal:
RTD, 4-20mA, 0-5V ect
Packaging & Delivery
Packaging Details
Standard export carton box for LED Data Logger, RTD Temperaure, Pressure Data Recorder Max 48 Channels
Delivery Time
Shipped in 5 days after payment

Hot Sell LED Data Logger, RTD Temperaure, Pressure Data Recorder Max 48 Channels



Service Guarantee

1. Factory directly price

2. World wide market

3. Small MOQ: 1 unit data logger

4. Shipping to all countries

5. Always considerate for customers

6. Customize products available

7. Short responding time: always within 10 hours



Features:

1) Unique nice design.
2) Fine craftsmanship and special design.
3) Customize logos and designs accepted.



Technical specifications

Measurement input

Input signal

Current:0~20mA,0~10mA, 4~20mA, 0~10mA evolution, 4~20mA evolution



Voltage: 0~5V,1~5V,0~10V,  ±5V, 0~5V evolution, 1~5Vevolution, 0~20 mV,

0~100mV, ±20mV, ±100mV



Resistance thermometer detector:Pt100, Cu50,Cu53, BA1, BA2



linear resistance: 0~400Ω



Thermoelectric couple: B, S, K, E, T, J, R, N, F2, Wre3-25 and Wre5-26

Output

Output signal

Analog output:4~20mA(load resistance≤380Ω),0~20mA(load resistance≤380Ω),0~10mA(load resistance≤760Ω),

1~5V(load resistance ≥250KΩ),0~5V(load resistance ≥250KΩ)and 0~10V(load resistance ≥500KΩ)



Alarm output: Normally-open output of relay,contact capacity1A/250VAC(Resistive load)



Feed output: DC24V±1,load current≤250mA



Communication output: RS485/RS232 communication interface,baud rate1200~57600bps(settable).

The standards are listed as follows:MODBUS

RTU communication protocol, maximum RS-485 communication distance:  1km; maximum RS-232 communication distance:15m,

Ethernet communication interface, communication speed10M,(merely applicable to Local Area Network)

Composite parameters

Measurement accuracy

0.2%FS±1d

Sampling period

1second

Setting mode

Light-touch key setting; password locking of parameter setting value; permanent saving of setting value outage.

Display mode

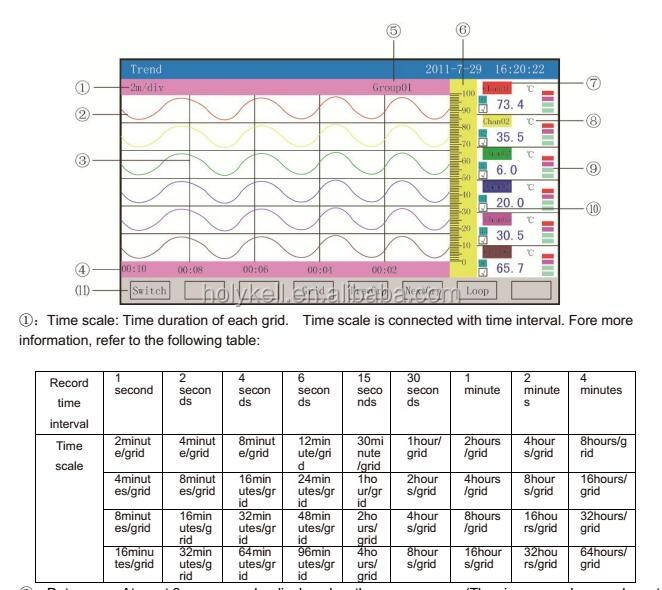

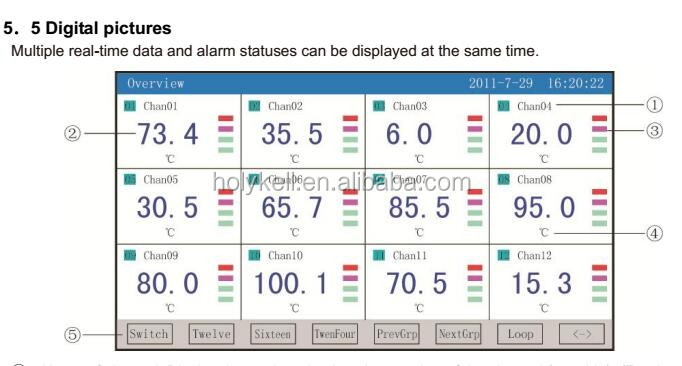

7-inch 800*480 dot matrix widescreen, TFT high-brightness color graphic LCD, LED backlight, clear display and wide visual angle.

The screen brightness is adjustable. The display contents consist of Chinese characters, figures, process curves and bar graphics.

By pressing the key on the panel, you can complete page turning, historical data search and modification of curve time scale, etc.





Shipping terms:

1) Sample time: 3-5days(without LOGO printing),5-7days(with LOGO printed)
2) Production time:8-25days(Depends on quantity) after advanced payment received.



QC:
All digital temperature controllers/indicators must be inspected before delivery.
1) Check raw materials after they arrive factory
2) Check all the details while the production line operated
3) Check the goods after they are finished
4) Check all the goods after they are packed



Frequently Asked Question



1. How long will you give me the reply?

we will reply you in 2 hours, at most 10 hours if local time is night.


2. Could I get samples?
Suresample prior to order helps you know about our products and trust built.


3. How about the quality of the magnets?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.


4. How is the price?
To help us find a perfect match product within many, please offer more details as you can, then a absolute

best price will be sent to you.


5. Could you provide me the shortest lead time?
YES, time is money. We will do best to offer you quality products within shortest lead time.


6. Could I visit your factory?
Of course, we welcome your visit.


7. If I have paid,when will you help me to produce?
When we have received the money in our account, we will arrange production at once.



8.What is your main products?

Our main products: All kinds of pressure sensor&transmitter, level sensor, flow meter, control&paperless recorder etc,.



9. Who should I talk or send email to?

Please feel free to call or email Anna Luo at any time, English and Chinese both okay.



Thanks for your time! Don't hesitate to contact me for any inquiries.
