Quick Details

  • Place of Origin: Hunan, China (Mainland)
  • Brand Name: Holykell
  • Model Number: HPT200 series Pressure Transmitter
  • Type1: Differential pressure transmitter
  • Delivery Time: In 5~7 days for sample order
  • Applicable for: liquid, gas pressure test, water, oil
  • DP Safe Overload:: 150%F.S.
  • Output:: 4~20mA, 0~5V, 0~10 V
  • Power Supply:: 9~36VDC, 12~36Vdc
  • Stability:: Standard: 0.1%F.S, Max:0.2%F.S
  • License: CE ATEX
  • Remarks:: Special applications request by Customized
  • Accuracy: ≤±0.5%F.S

Packaging & Delivery

Packaging Details Standard export packing.
Delivery Time In 10~15 days after receive the advance payment.

China Relative Absolute Gauge 4-20ma Pressure Transmitter Price







----Industrial course testing and control

---- Storage and fuel, Oil, Water Tank applications

---- Service to Oxygen, CO2, Nitrogen





Product Description

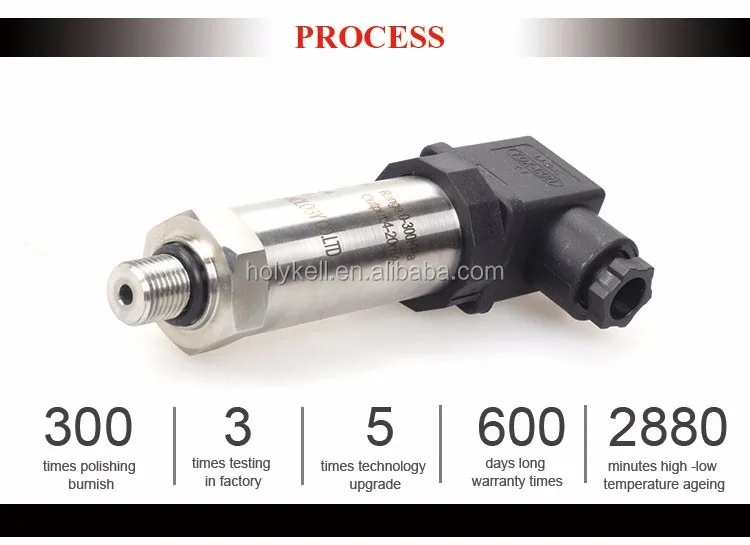

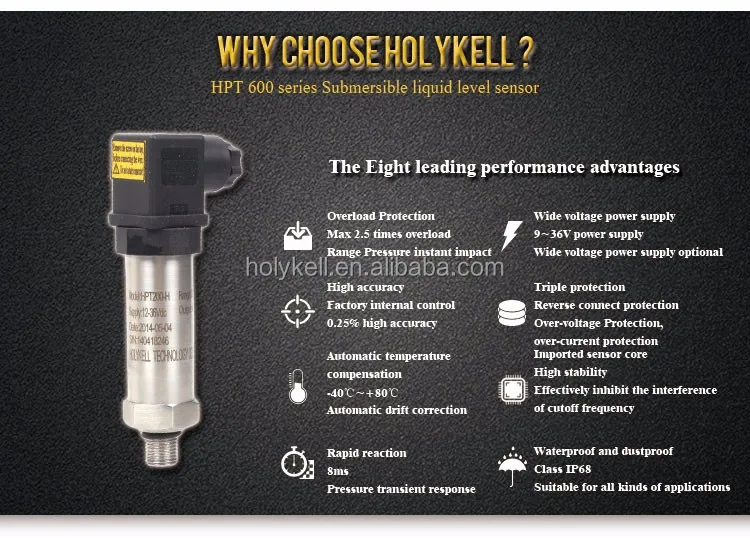

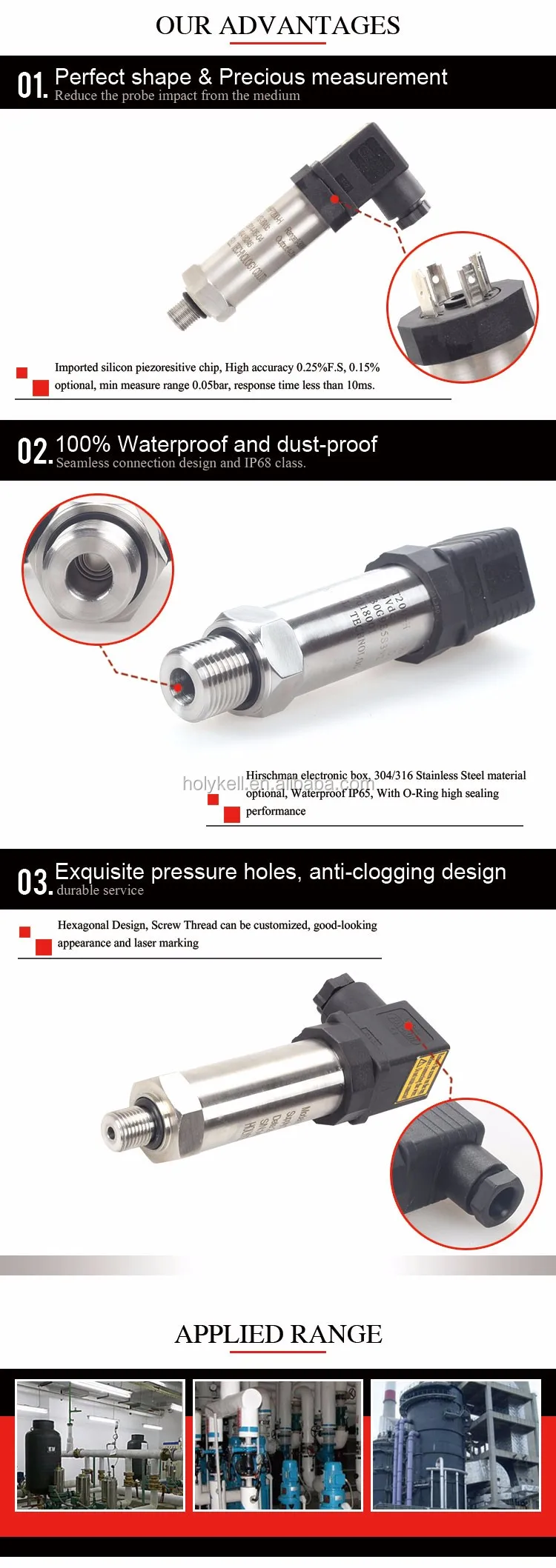

1.a.All welded 316L housing

2.Imported Germany Silicon sensors, 5-10 years life design

3.Military level of printer PCB board, Anti-Jamming enhanced 300%, Stability of Circuit>10 years

c.Linear Amplified Output

d.Automatic temperature compensation -40~80℃,Temperature drift Automatic modified linear  ≤0.01%FS

e.Superior Long term Stability

f.Excellent Repeat ability/Hysteresis

g.EMI/RFI Rejection

h.Low power consumption

i.Ten million cycle life expectancy

J.Outstanding shock& vibration performance



2.Specifications:





Model

HPT200-H/S8/C5

Pressure Range

-1 Bar-1 Bar; 0-0.1Bar.....1000 Bar / 0-2 Psi…15000 Psi Optional

Pressure Type

Gauge pressure; Absolute pressure; Sealed gauge pressure; Negative pressure optional.

Output

4~20mA

Or 4~20mA+HART

4-20 mA or

Double 4-20mA

0~5V ,1~5V, 0-10V

RS485

4~20mA +Temp (Ω)

Power Supply

12~36 Vdc

12~36 Vdc

8~36Vdc/15-36Vdc

10~30 Vdc

12~36 Vdc

Accuracy

(Linearity Hysteresis

Repeatability)

≤ ±0.5%F.S; ≤ ±0.25%F.S

≤ ±0.1%F.S (Customized)

Including non-lin., rep. and hys. Optional

Working/Storage Temp

-30℃~85℃

Tempe Compensation

-10℃~60℃(standard); -20℃~60℃; -20℃~80℃(customized)

Safe Overload

200% F.S.(standard)

Burst Pressure

300% F.S. (standard)

Total Error Band

0...50 °C max. ±0.5 %FS;  -10...70 °C max. ±1.0 %FS

Medium compatible

Compatible with 316 Stainless Steel or 1Cr18Ni9Ti stainless steel

Zero Temp. Drift

0.03%FS/℃(≤100kPa),  0.02%FS/℃(>100kPa)

Body materials

316 stainless steel (standard); 1Cr18Ni9Ti stainless steel optional

Filling oil

Silicon oil (standard); Fluorocarbon oil (Oxygen Services)

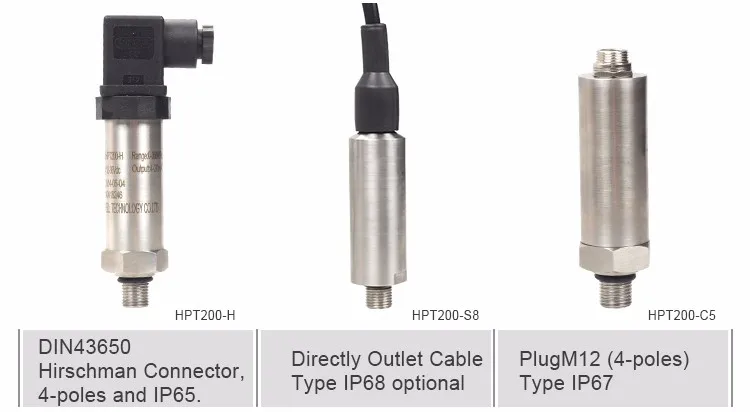

Electronic connection

-DIN43650 Hirschman Connector, 4-poles and IP65.

-Plug: M12 (4-poles) Type IP67;

- Directly Outlet Cable Type IP68 optional.

Pressure

connect port

G1/4’’male, G1/2’’male, 1/8’’NPT male, 1/4’‘NPT male, 1/2’‘NPT male and female optional. (by customized)

Dimension

Length: 120 mm (standard); Body diameter: 27 mm (standard).  *special size by requested*



 Details.



















Company Information







FAQ

How to place an order

In order to recommend you the most suitable pressure transmitter and make an accurate quotation, please fill in the following form and send it to me , thanks

Requirements

NO

Technical Parameters

1

Tank height



2

Output signal



3

Cable length



4

Quantity



Your other requirements will be welcome









FAQ 2

1:How long will you give me the reply?

we will contact you in 2 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3:How about the quality of the managements?
We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
5:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
6:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately

7:How to pay for that ?

Of We could accept T/T,Paypal,WU ,Credit Assurance.

You will get full protection for your orders ,More details Kindly click Trade Assurance .
