Holykell factory Electronic pressure transmitter 4 to 20ma HPT300

FOB Reference Price:Get Latest Price
$29.90 - $69.90 / Pieces | 1 Piece/Pieces (Min. Order)
Material:
Stianless Steel
Accuracy:
0.5%F.S
Pressure Range:
0-600bar
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
Holykell
Model Number:
HPT300
Range:
0-1 Bar to 1000 Bar optional
Accuracy:
0.5%F.S 1.0%F.S pressure sensor
Output signal:
4-20mA 0-20mA 1-5V 0-5V 0-10v
Material:
316L stainless steel
Pressure Type:
Gauge/Absolute
Working Temp:
-30~80 Centigrade
Overload:
150% F.S
Burst pressure:
300% F.S
Certificate:
RoSH CE
Warranty:
One year
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Electronic pressure transmitter 4 to 20ma HPT300 in Standard export packing
Port
Shenzhen
Video Description

Holykell factory Electronic pressure transmitter 4 to 20ma HPT300

 Electronic pressure transmitter 4ma to 20ma HPT300





Product Description









Holykell Pressure Tansmitter Applications
Process control & automation
Pump & compressor control
Hydraulic/Pneumatic systems
Engine monitoring
Generator oil pressure measurement
Refrigeration and Air Compressor
Machine tools

Water/ fuel oil pressure measurement
Saving water to irrigate
Liquid and Gas pressure measurement



Profiles

The HPT300 series pressure transmitter applied in the engine fuel pressure, hydraulic pressure and gas pressure industries, which is adopt the Flush Ceramic piezoresistive technology and the advanced circuit design. Its pressure chamber is made of 316L stainless steel welted and with O-rings, free of leakage troubles. The series products provide several optional pressure connectors and electric output forms for customers.

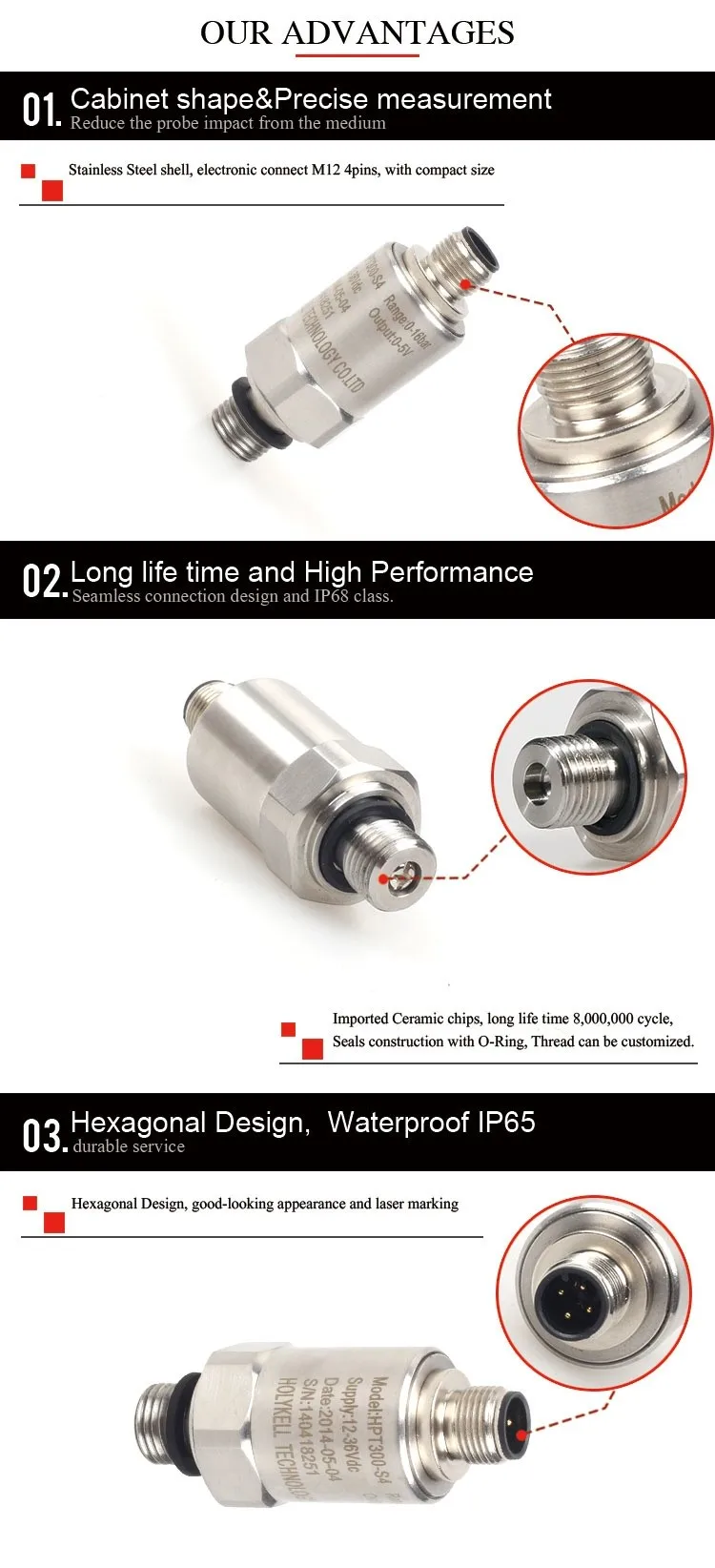

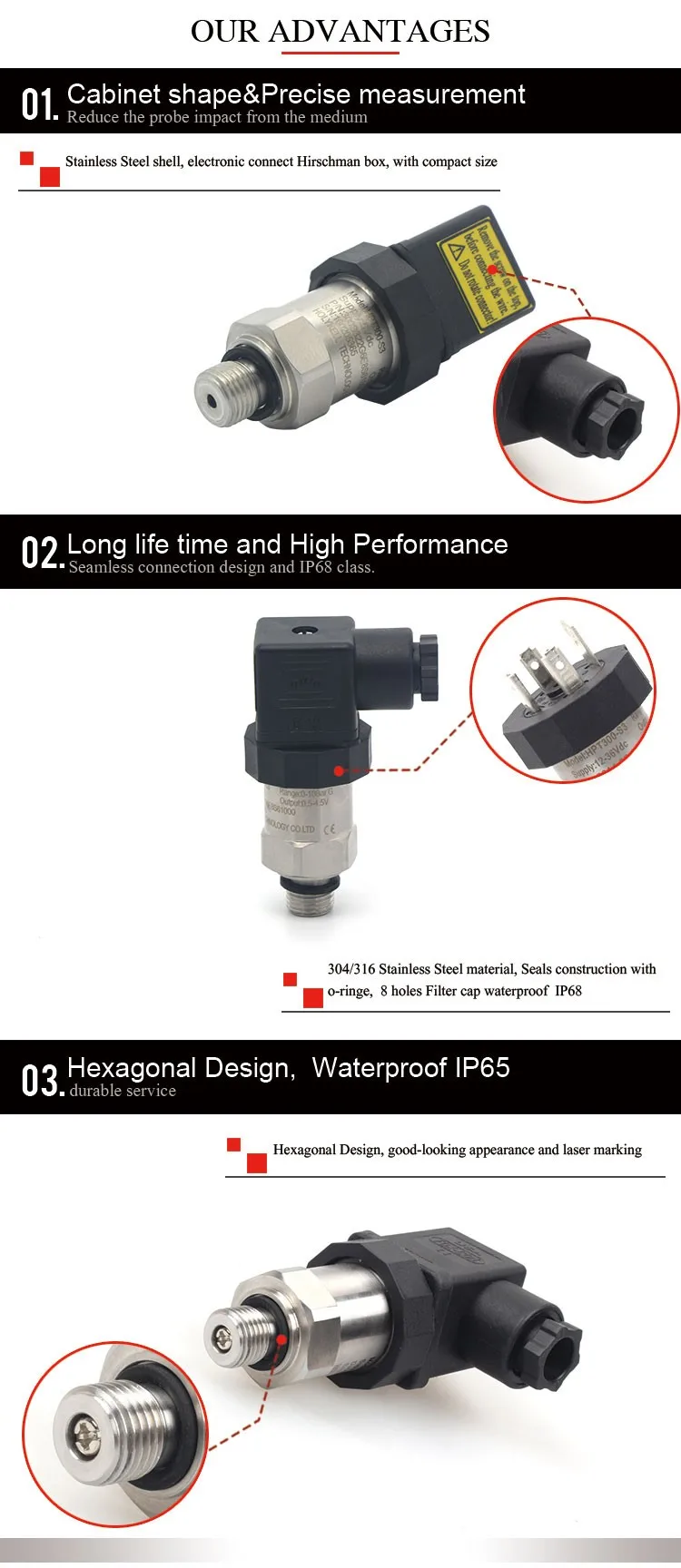

Why choose Holykell HPT300-S?

♥ A variety of electrical connections optional, can be OEM custom various parameters

♥ 5-10 years design life, the lifelong maintenance

   The imported flat ceramic pressure cell, service life is 2 ~ 3 times of similar products

♥ Damper design of international standards, strengthen the protection of the diaphragm

   Maximum overload can reach more than 300%

♥ Adopt the military printed-circuit board and wiring, with good electromagnetic compatibility

   Anti-interference is enhanced by 300%, the stability is over 10 years

♥ Automatic temperature compensation, -40 ~ 80 ℃, autocorrection temperature drift

♥ Moistureproof circuit design, it can adapt to bad and wet working environments





Feature

 Advantage

Benefit

Compact ,Rugged and Small SS body

Designed to integrate with a variety of industrial and OEM application

Great cost,Universal type

Germany Piezo-resistive ceramic cell

High-quality Al2O3 (98%)Resists corrosion and water
Accuracy 0.5%F.S

Reliable and longlasting in harsh application

Circuit three-antigum process

circuit anti-static,moisturproof,anti-corrosion

NOK Brand O-ring Seal

0 leakage

Safty,avoid safety accidents

Water hammer

shock-proof,Avoid instant overpressure damage

Stability,keep sensor running longer by reducing downtime and maintenance costs

EMI/RFI

interfere with the operation of other electrical products in the environment.

Precision Measurment









Basic Parameters

Model Parameter:

HPT300-S Series Pressure Sensor Transmitter

Pressure Range:

0-1Bar...10Bar...60Bar...100Bar...600 Bar Optional

Pressure Type:

Gauge pressure; Absolute pressure

Accuracy:

(Linearity Hysteresis

Repeatability)

≤ ±0.25%F.S

≤ ±0.5%F.S

optional

Working Temp:

-30°C~+85°C

Temperature Compensation:

-10°C~+60°C

Electronic Wire:

2 Wire

3 Wire

Output:

4~20mA

0~5V

0~10 V

0.5~4.5 V

Power Supply:

12~36 V DC

12~36 V DC

15~36Vdc

5V DC

Pressure

connect port:

1/4’’NPT male, 1/4’’NPT Female, G1/2’’ male, G1/4’’ male,

7/16’’-20 UNF male/female optional. (by order)

Response time:

≤10ms

Certificate approving:

Exia II CT5 and CE Certificate.

Water Proof:

IP65 for HPT300-S3/S4, IP67 for HPT300-S2

Remarks:

Special applications request by order

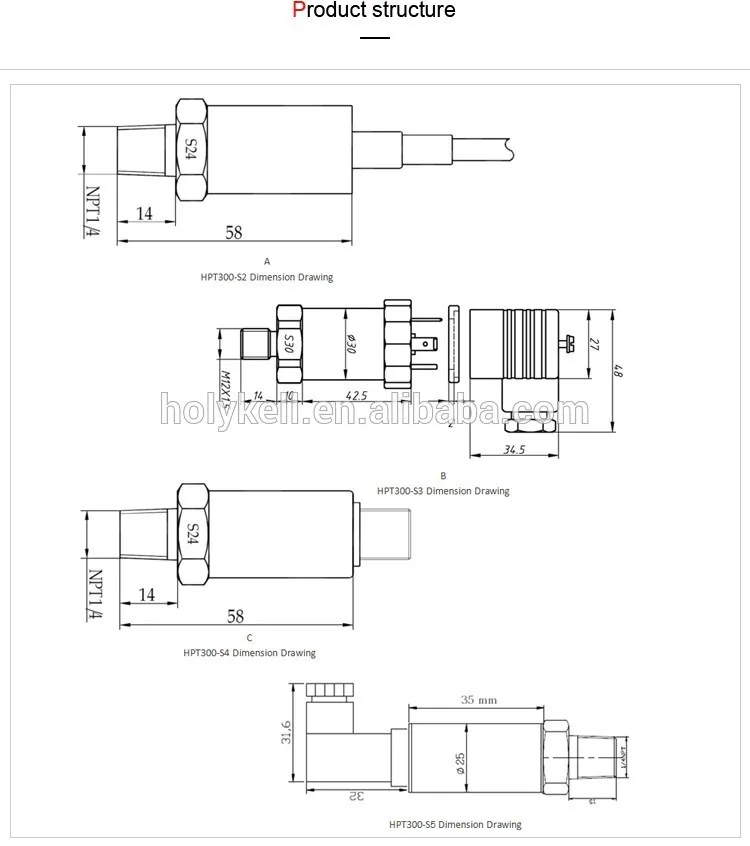

Dimension and structure

Buyer Feedback on Holykell pressure transmitter

Application fields of Holykell sensors

Certification:

FAQ

1. How long will you give me the reply?
we will reply you in 2 hours ASAP, within 10 hrs if night.


2. Do you offer OEM service?---Yes sure, please feel free to send us your requirements.

3. What is the maxium pressure range of the pressure sensor you can do?---2000 bar

4. What Certification do you have.---ATEX explorsion-proof, CE, ROHS, ISO


5.What is your main products?
Pressure sensor/ transmitter/transucer, level sensor, flow meter, paperless recorder etc,.

6. How about warranty time?----12~18 months

7. Who should I talk or send email to?
Welcome to call or email Ms. Vicky Fu at any time, English and Chinese both okay.
Email: sales at holykell.com
Skype:vicky.fu4
Mobile/Whatsapp:0086-13786166157
