Holykell factory Differential Pressure Level Transmitter HPT708

FOB Reference Price:Get Latest Price
US $100-200 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
Holykell
Model Number:
HPT708
Range:
0-5Kpa to 3500 Kpa
Material:
316 stainless steel differential pressure transmitter
Max Static Pressure:
21.25 Bar
Working Temp:
-40~85 Centigrade
Output:
4-20mA/0-5V/0-10V
Waterproof:
IP67
Pressure type:
differential pressure sensor
Net Weight:
0.65KG
Certificate approving:
CE ExiaIICT5
Overload:
150% F.S
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export packing
Port
Shenzhen
Lead Time :
In 10-15 days after receive payment












Product Description









 Differential Pressure Level Transmitter    Model:HPT700-H



      HPT700H hpt700-h.jpg



Product Description





Characters:



* Accuracy: ≤±0.5%F.S.

*Wide working temperature scope

*Advanced digital temperature compensation.

*Excellent resistance against impact, overload,

Shock and erosion.

*Highly static pressure overload

*Highly strong RFI & EMI resistance

* Impact resistance and disturbance

* 1.5 times range standard overload.

* 3 times range burst pressure

* CE approving

Applications:



* Industrial course testing and control

* Level measurement and control

Service to Oxygen, CO2, Nitrogen

Petrochemical industry

* Storage and fuel, Oil, Water Tank applications

* Pump station and water treatment system

* Laboratory equipment

* Industrial machinery manufacture

* Automatic detection system

* Saving water to irrigate









Specifications





Model Parameter:

HPT700-H Series   Differential Pressure Level Transmitter

Pressure Range:

0-5kPa...... 3500kPa Optional

Overload:

150%F.S.

Static Pressure

21,25 Bar (Optional)

Accuracy:

(Linearity Hysteresis

Repeatability)

≤±0.1%F.S

≤±0.25%F.S

≤ ±0.5%F.S

Optional

Stability:

Standard: 0.1%F.S,    Max:0.2%F.S

Working Temp:

-40°C~85°C

Storage Temp:

-40°C~125°C

Temperature Compensation:

-20°C~70°C

Medium compatible:

Compatible with 316L Stainless Steel

Indicator:

LED 4 Bits display for pressure or level value

Electronic Wire:

2 Wire

3 Wire

Output:

4~20mA

0~5V

0~10 V

Power Supply:

12~36Vdc

5~36Vdc/ac

12~36Vdc

Load resistance:

(U-10)/0.02(Ω )

>100kΩ

Insulate resistance:

>100M Ω  @100V

Electronic connect:

Fixed cable and water proof IP68

Pressure

connect port:

1/4’‘-18NPT Female hose connection

RG=Ø8gas mouth optional. (by order)

Response time:

≤10ms

Pressure Type:

Differential Pressure (Gauge pressure)

Certificate approving:

ExiaIICT5 and CE Certificate.

EMC Standard:

electromagnetic radiation:EN50081-1/-2

electromagnetic susceptibility:EN50082-2

Lighting protection:

withstand voltage of Air conduction:8000V,

withstand voltage of Shell and Cable: 4000V

Water Proof:

IP65

Weight:

Net weight is about 0.5KG, Full Packing weight is about 0.65KG (Included 3 Meters Cable)

Remarks:

Special applications request by order







FAQ





Ordering guide:



In order to recommend you the most suitable sensor , please show us  following necessary info

according to your practical situation.



1.What's your application ? Medium ?Gas ,liquid or fuel etc
2.Working temperature ?-40°C~85°C
3.Pressure range ?  0-5Kpa…..3500 Bar Optional
4.Output signal? 4-20mA, 0-5V or other
5.Electronic connection ?Fixed cable and water proof IP68
6.Pressure port:G1/4, G1/2, 1/4NPT, 1/2NPT (by customized)









Our Services









Terms & Service



TermExpress OK_OK





Photos

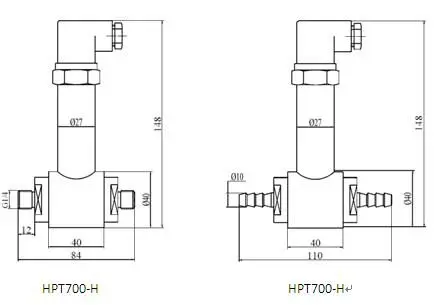

Differential Pressure Level Transmitter



  HPT700-H_HPT700-HHPT700H
