Holykell factory High Performance 4-20ma 0-5v Pressure Transducers Model:HPT300

FOB Reference Price:Get Latest Price
US $29.9-69.9 / Pieces | 1 Piece/Pieces pressure transducer (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
Holykell
Model Number:
HPT300
Pressure Range:
-1 Bar-0-1 Bar.....600Bar pressure transducer optional
Overload:
150%F.S
Pressure Type:
Gauge pressure; Absolute pressure; Sealed gauge pressure optional.
Burst pressure:
200%F.S
Power Supply:
9~36 V DC,12~36 V DC,5V dc
Medium compatible::
Compatible with 316 Stainless Steel
Output:
0~5V, 0-10V, 0-10 mA, 4-20 mA Optional
Accuracy:
0.5%FS ;1 %F.S
Process connection:
M20X1.5 Male 1/4NPT male etc
Warranty:
18 months
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day pressure transducer
Packaging & Delivery
Packaging Details
Packaging Details
Holykell BOX A 19*14*6 cm 1kg for sample
Holykell Box B 32*20*16cm 2kg
Holykell Box C 38*38*16cm 4.5kg
Holykell Box D 50*40*30 cm 12kg
Delivery Time
Port
shenzhen/shanghai
Lead Time :
7-12 days after your payment

300-s3_01.jpgHigh Performance 4-20ma 0-5v  Pressure Transducers Model:HPT300





Why Choose Our OEM Compact Pressure Transducer?

a.Low cost compact type

b.Imported Germany technology Ceramic sensors, 5-10 years design

c.Military level of printer PCB board, Anti-Jamming enhanced 300%, Stability of Circuit>10 years

d.Linear Amplified Output

e.Automatic temperature compensation -40~80,

   Temperature drift Automatic modified linear  ≤0.01%FS

f.Superior Long term Stability

g.Excellent Repeat ability/Hysteresis

h.EMI/RFI Rejection

i.Low power consumption

j.Ten million cycle life expectancy

k.Outstanding shock& vibration performance


Characters:

Accuracy: ≤±0.5%F.S

Wide working temperature scope

Advanced digital temperature compensation

Excellent resistance against impact, overload, shock and erosion

Highly-efficient lighting absorption

Impact resistance and disturbance

Strong RFI&EMI resistance

3 times range standard overload

5 times range burst pressure

CE approved






Applications:



Industrial course testing and control

Automatic testing system

Petrochemical industry

Hydraulic and pneumatic systems

Pump station and water treatment system

Laboratory equipment

Industrial machinery manufacture

Automatic detection system

Saving water to irrigate



 x300 (6).jpg

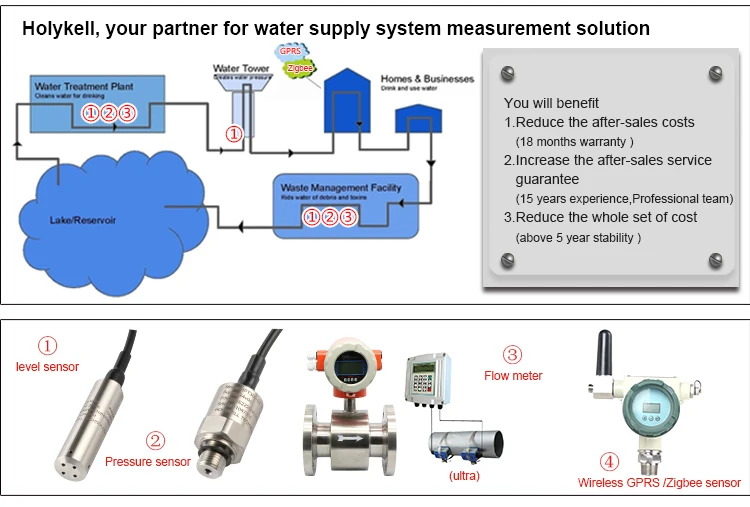

We have many projects about water supply system successful case in the worldwide . Learn more ...

Holykell A whole sets of measurement solution is your smart choice .

Don't heasitate to contact us freely !!!




  Specifications:



Pressure Range

-1-0-1 Bar.....600 Bar Optional

Accuracy

≤ ±1.0%F.S   ≤ ±0.5%F.S   ≤ ±0.25%F.S (Customized)

Diaphragm material

Piezoresistive Flush Ceramic

Electronic Wire

2 Wires

3 Wires

Output

4~20mA

0~5V

0~10 V

0.5~4.5 V

By Customized

Power Supply

12~36 V DC

12~36 V DC

15~36Vdc

5 V DC

By Customized

Insulate resistance

>100M Ω  @50V

Electronic connection

Terminal Box (DIN43650 Hirschman Connector, IP65)

Directly sealed cable IP67;

M12 4 Pins connector IP65;

Small Hirschman Connector; connection are optional.

Pressure connect port

1/8’’NPT male, 1/4’’NPT male

1/4’’NPT Female, G1/2’’ male, G1/4’’male/female,

7/16’’-20 UNF male/female are optional. (by Customized)

Response time

≤10ms

Certificate approving

CE Certificate.

EMC Standard

electromagnetic radiation:EN50081-1/-2

electromagnetic susceptibility:EN50082-2

Water Proof

IP65 to IP67

Weight

Net weight is about 0.10KG, Full Packing weight is about 0.5KG (Included 3 Meters Cable)



   Order information : Pressure range :0-10 bar , Output :4-20mA , Power supply:12~36VDC ,

                                  Process connection: 1/8"NPT male  ,Electronic Connector:Directly cable













Ordering guide:



In order to recommend you the most suitable sensor , please show us  following necessary info according to your practical situation.

1.What is your medium ? Water, or other.

2.Working temperature ? -30°C~70°C or other

3.Level range ?  0~500m H2O or other

4.Output signal? 4-20mA, 0-5V or other

5.Electronic connection ?  antiseptic Cable or by order





Price, Package and Service



1. Price : FOB Changsha

2. Payment: T/T in advance or PayPal,Western Union.

3. Packing : standard export packing , including instructions and certificate

4. Leading time : 7-10 working days.

5. OEM avaliable

6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder

7. 7 days free replace & 1 year free repair for quality warranty.
